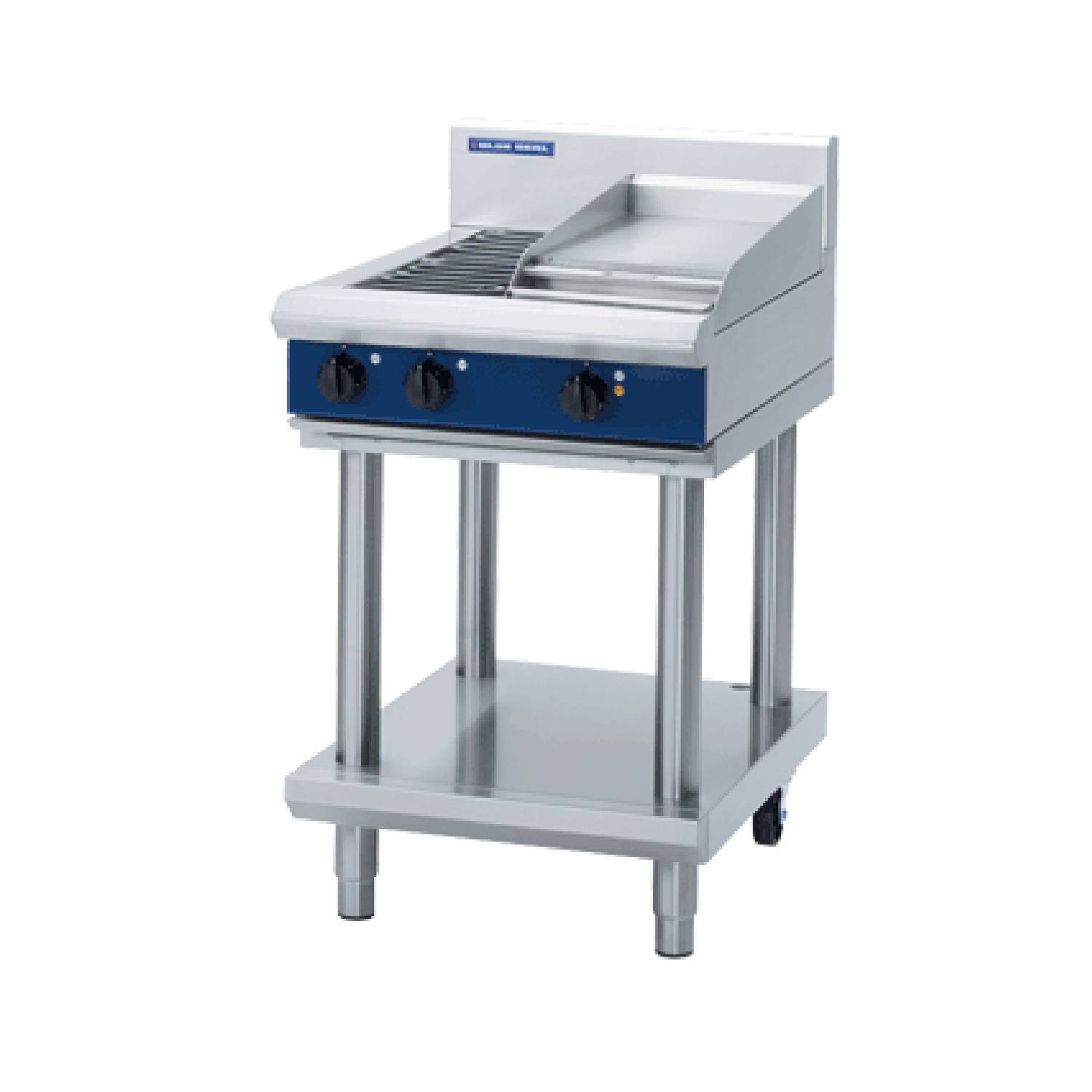

Blue Seal E514C-LS 600mm Electric Cooktop with Leg Stand
Blue Seal E514C-LS 600mm Electric Cooktop with Leg Stand . Unrivalled performance and durability.
PRODUCT FEATURES:
- Radiant elements with energy regulator controls
- 2 x 2.4kw radiant elements, 1 x 3.6kw griddle element
- Heavy duty stainless steel finish
- Easy clean, installation and service
- Optional hot plate elements
- Griddle on RH side as standard
- Fully modular for match suite finish
- Double skin 0.9mm stainless steel interior and exterior
- Optional GN 1/1 4 position racking kit
- 63mm dia. heavy-duty 1.2mm stainless steel legs with 2 x adjustable feet at front and 2 x rollers at rear.
- Power: Electric – 8.2kw/400-415Vac
- Standard machined finish smooth griddle plate supplied*
*Choice of griddle surfaces: Simply order the optional griddle plate model number and unit is supplied with your nominated surface. The standard plate is not included when ordering an optional griddle plate surface. Options must be specified at the placement of the order.
Optional Griddle Plate Surface:
PE312R3: 300mm x 12mm Griddle plate – ribbed full.
OPTIONAL EXTRAS – ELECTRIC COOKTOPS
- 228807 – Mobile Castor Kit (2 lockable)
CONTROLS:
- Large easy use control knob – heat resistant reinforced
- Easy view control settings on knob
- Radiant elements with energy regulator controls
- Hot plate elements with energy regulator controls
- 50-320C thermostat per 300mm griddle section
- Indicator lights for power and heating for each griddle control
- Power indicator lights for each element control.
CLEANING AND SERVICING:
• All models with easy clean stainless steel external finish
• Stainless steel spill tray
• Lift up element and griddle sections
• Access to all parts from front of unit
DIMENSIONS:
W: 600mm D: 812mm H: 1085mm
