Description

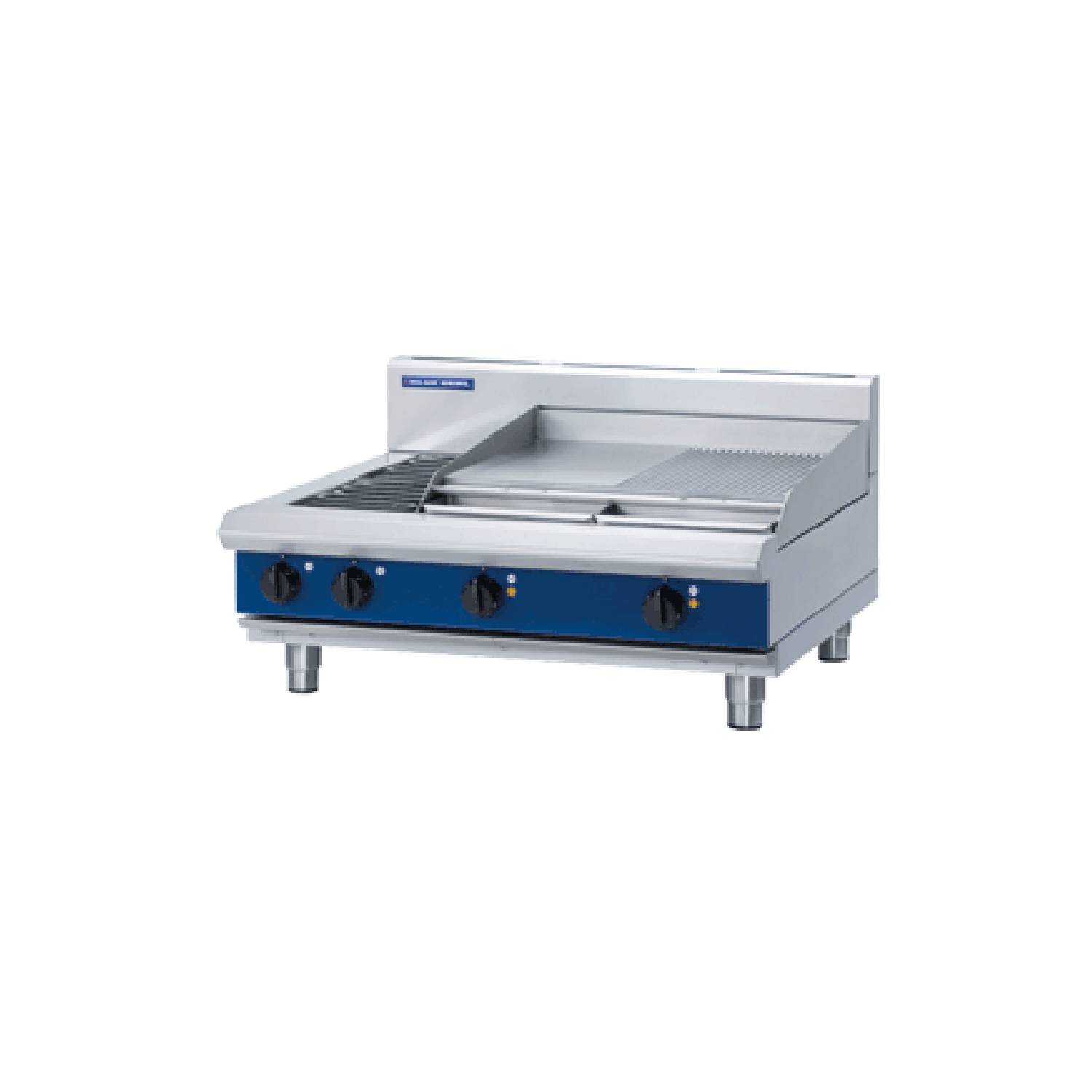

Blue Seal E516B-B 900mm Electric Griddle Cooktop Bench Model
Blue Seal E516B-B 900mm Electric Griddle Cooktop Bench Model. Unrivalled performance and durability.
Product Features
- 2 x 2.4kW radiant elements
- 600mm smooth griddle (2 x 3.6kW griddle element)
- Radiant elements with energy regulator controls
- Heavy-duty stainless steel finish
- Heavy-duty reinforced control knobs
- Adjustable feet and 2 additional rollers
- Easy clean, installation and service
- Optional hot plate elements
- Griddle on RH as standard
- Standard machined finish smooth griddle plate supplied*
*Choice of griddle surfaces: Simply order the optional griddle plate model number and unit is supplied with your nominated surface. The standard plate is not included when ordering an optional griddle plate surface. Options must be specified at the placement of the order.
Optional Griddle Plate Surface:
PE612R3: 600mm x 12mm Griddle plate – ribbed 300mm RH
PE612R6: 600mm x 12mm Griddle plate – ribbed full
4 Models available:
Bench mount (supplied as –B model)
- Four 63mm dia. heavy-duty 1.2mm stainless steel bench legs with adjustable feet
- Adjustable height 80mm – 105mm
Cabinet Base (supplied as –CB model)
- Fully modular for match suite finish
- Double skin 0.9mm stainless steel interior and exterior
- Optional GN 1/1 4 position racking kit
- 63mm dia. heavy-duty 1.2mm stainless steel legs with two adjustable feet at front and two rollers at rear
Leg Stand (supplied as –LS model)
- Fully modular for matched suite finish
- Framed top for connection to Cooktop
- 63mm dia. heavy-duty 1.2mm stainless steel legs with two adjustable feet at front and two rollers at rear
- Fully modular framed stand shelf with 0.9mm stainless steel finish
- Quick assembly design
Refrigerated Base (supplied as –RB model)
- Self contained suite matched modular base
- Ventilated system with R134a refrigerant
- -2 to +8°C temperature (Tropical Climate rated)
- Two GN 1/1 drawers
- 100mm deep pan capacity
- Heavy-duty European telescopic drawer guides
- Magnetic drawer gaskets (replaceable without tools)
- 50mm fully foamed CFC free insulation
- Stainless steel exterior and interior
- Anti-corrosion treated evaporator
- No condensate drain required
- 63mm dia. heavy-duty 1.2mm stainless steel legs with adjustable feet
- Condensing unit removable through front of unit for service
- Easy clean interior
Dimensions
W: 900mm D: 812mm H: 485-1085mm
