Description
Blue Seal Evolution Series E506S – 900mm Electric Range Static Oven – Sealed Hobs
Blue Seal Evolution Series E506S – 900mm Electric Range Static Oven – Sealed Hobs is part of the new Evolution Series of electric solid element hobs/ranges & induction models. Sleeker in design and built to accommodate the demands of today’s most passionate chef’s, promising even more performance than anything before it.
PRODUCT FEATURES:
COOKTOP:
- 2.6kW cast iron hot plate elements with thermal protection
- Galvanized steel chassis
- Welded hob with one-piece formed 2.0mm 304 stainless steel top
- Hob sides 1.2mm 304 stainless steel
- Splashback 1.2mm 304 stainless steel
- Front panels and oven sides 0.9mm 304 stainless steel
- Vitreous enamelled hob control panel

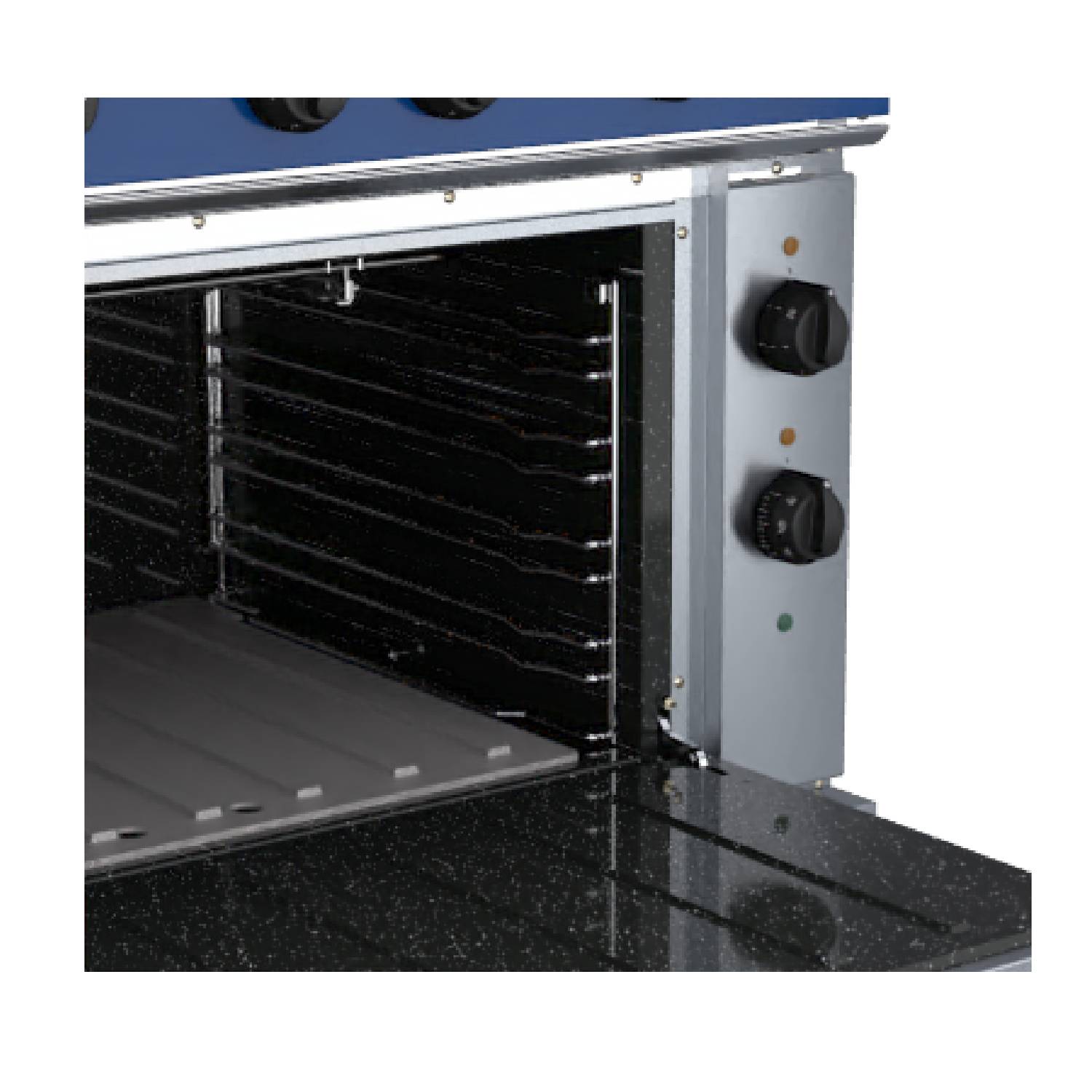

OVEN:
- Fully welded and vitreous enamelled oven liner
- 50-320C thermostatic control
- GN 2/1 capacity with 4 position racking
- Heavy-duty easy remove heavy wire chrome rack supports
- Cast iron even heat oven sole plate
- 6.5kW heating elements
- Drop down door
- 0.9mm 304 stainless steel door outer
- 1.0mm vitreous enamelled door inner
- High density fibre glass insulated
- Supplied with two chrome wire oven racks
Volume: 1.03m3
Packed Weight: 260kg
Electrical connection 22.1 kW max, 400-415Vac, 50/60hz, 3P+N+E
Rack size 650mm x 600mm
Rack positions 4
AVAILABLE IN THIS RANGE:
E512S-B 300mm, 2 solid elements hob, bench model
E514S-B 600mm, 4 solid elements hob, bench model
E514S-CB 600mm, 4 solid elements hob, cabinet base model
E514S-LS 600mm, 4 solid elements hob, leg stand model
E516S-B 900mm, 6 solid elements hob, bench model
E516S-CB 900mm, 6 solid elements hob, cabinet base model
E516S-LS 900mm, 6 solid elements hob, leg stand model
E56S – 900mm, 6 solid elements hob, Convection oven range
E506S – 900mm, 6 solid elements hob, Static oven range
Electrical appliances MUST be installed by a qualified electrician. Incorrect compliance to current installation legislation will lead to invalidation of warranty. Please refer to spec sheet for full electrical requirements/technical specifications
