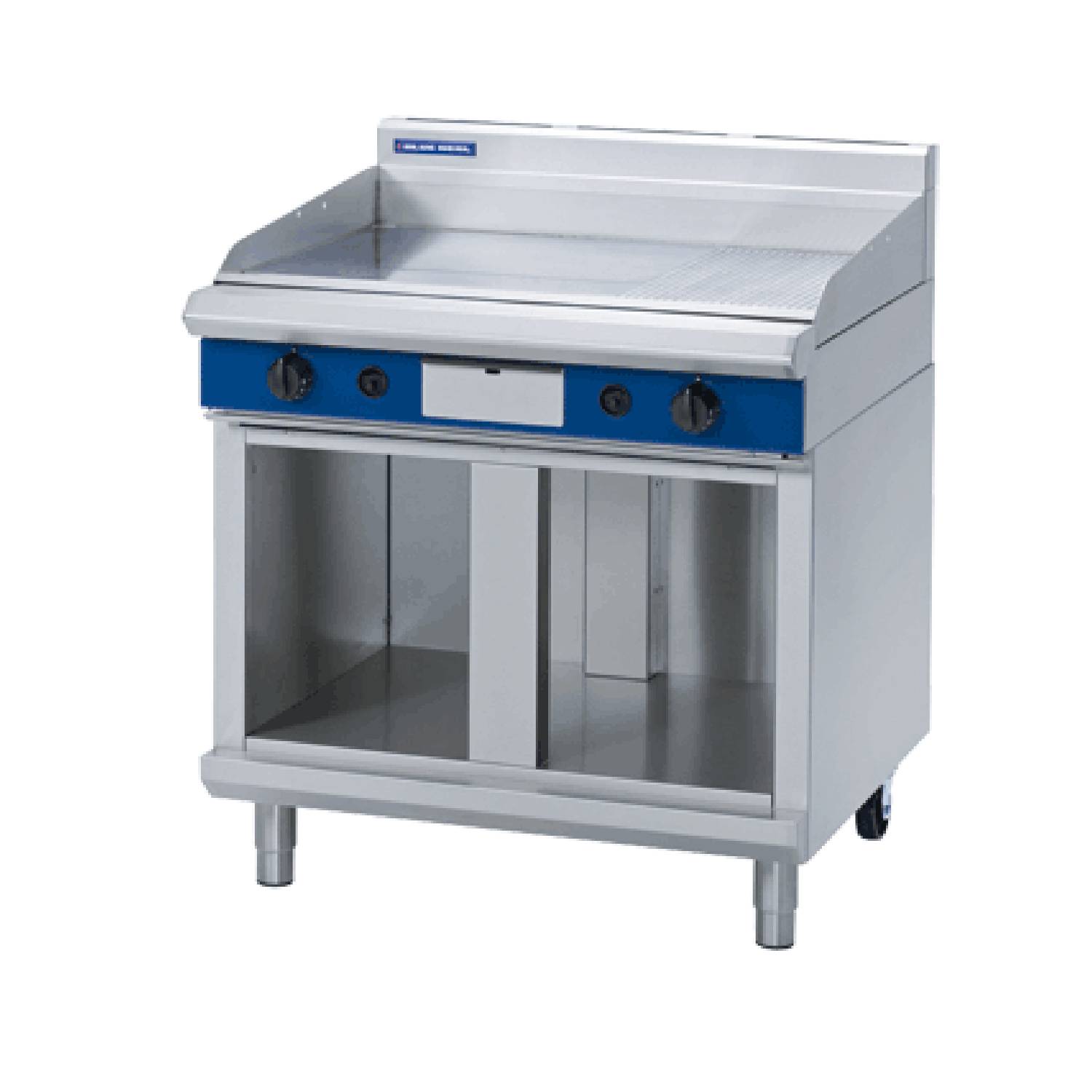

Blue Seal GP516-CB 900mm Gas Griddle with Cabinet Base
Blue Seal GP516-CB 900mm Gas Griddle with Cabinet Base. A heavy-duty gas griddle designed to deliver top performance in any commercial food service application. All heavy-duty griddles have a standard 20mm plate for maximum heat retention and distribution. A new mirror chrome surface option, also available as smooth or ribbed, minimises heat loss by trapping more heat on the cooking surface. Available in Natural gas and LP gas, please specify when ordering.
- 23kW thermostatic burner system
- Top weld sealed plates
- Stainless steel grease drawer
- Heavy-duty reinforced control knobs
- Push-button piezo ignition
- Adjustable feel and 2 additional rollers
- Easy clean, installation and service
- Standard plate supplied: Smooth machined finish mild steel plate PGH920
*Choice of griddle surfaces: Simply order the optional griddle plate model number and unit is supplied with your nominated surface. Note: The standard plate is not included when ordering an optional griddle plate surface. Options must be specified at the placement of order.
Dimensions:
VARIATIONS OF THE MODEL AVAILABLE:
Bench mount (supplied as –B model)
- Four 63mm dia. heavy-duty 1.2mm stainless steel bench legs with adjustable feet
- Adjustable height 80mm – 105mm
Cabinet base (supplied as –CB model) (Accommodates 1 or 2 Racking Kit 1/1GN, 4 positions)
- Double skin 0.9mm stainless steel interior and exterior
- Optional GN 1/1 4 position racking kit (1 or 2 cabinet bays)
- Up to eight 65mm GN 1/1 capacity
- 63mm dia. heavy-duty 1.2mm stainless steel legs with two adjustable feet at front and two rollers at rear
Leg stand (supplied as –LS model)
- Framed top for connection to Griddle
- 63mm dia. heavy-duty 1.2mm stainless steel legs with two adjustable feet at front and two rollers at rear
- Fully modular framed stand shelf with 0.9mm stainless steel finish
- Suitable for rear or through shelf gas connection to Griddle
Refrigerated base (supplied as –RB model)
- Self contained suite matched modular base
- Ventilated system with R134a refrigerant
- -2° to + 8°C temperature (Tropical Climate rated)
- Two GN 1/1 drawers
- 100mm deep pan capacity
- Heavy-duty European telescopic drawer guides
- Magnetic drawer gaskets (replaceable without tools)
- 50mm fully foamed CFC free insulation
- Stainless steel exterior and interior
- Anti-corrosion treated evaporator
- No condensate drain required
- 63mm dia. heavy-duty 1.2mm stainless steel legs with adjustable feet
- Condensing unit removable through front of unit for service
- Electrical supply required – 13amp plug fitted
