Description

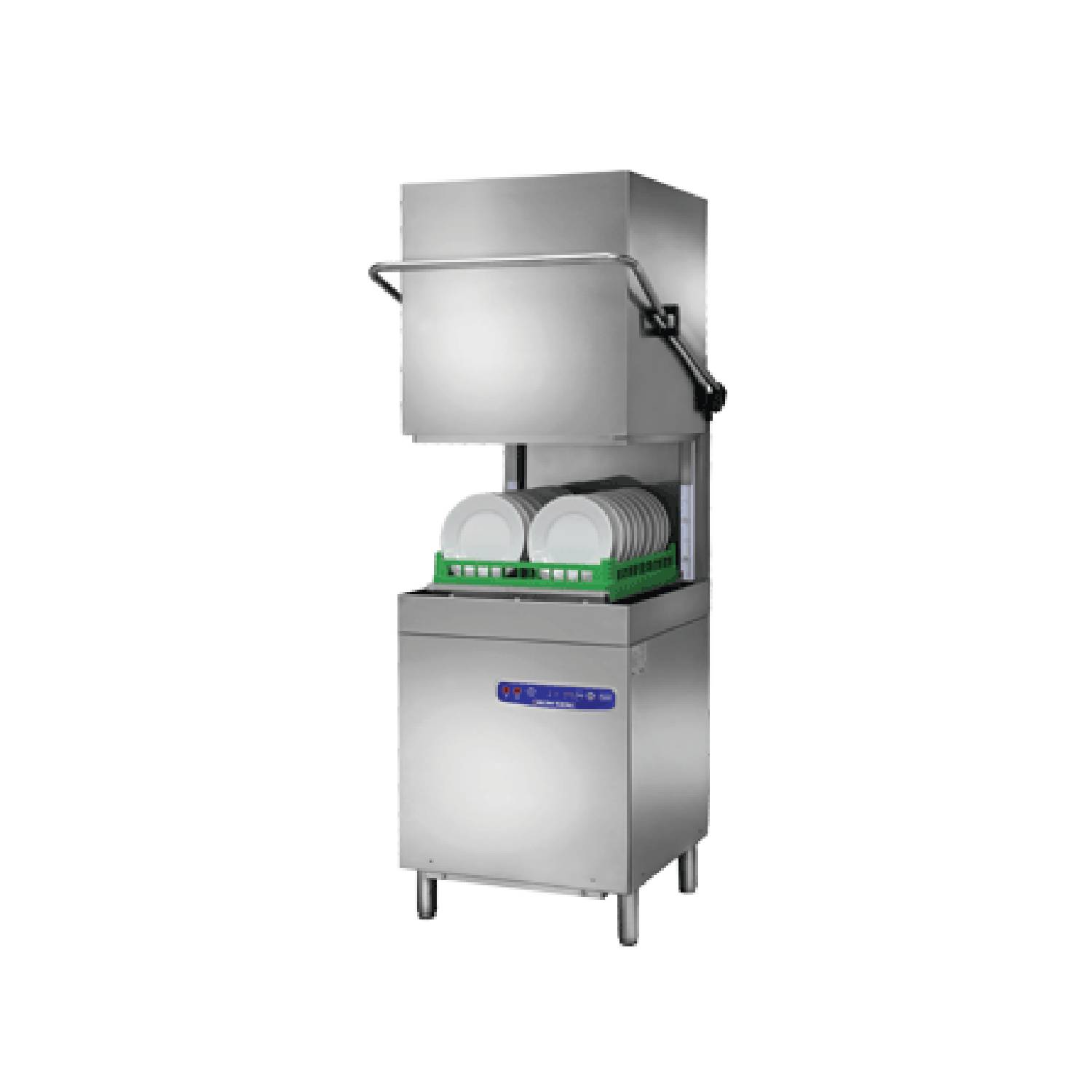

Blue Seal SH120E BT High Volume Hood Washer
Blue Seal SH120E BT High Volume Hood Washer Part of the Ware Washing equipment range that is at the forefront of ware washing technology. Robust yet stylish products providing power, outstanding performance and unrivalled durability.
High volume pass-through Hood washer with integral break tank. Technically advanced unit with three washing cycles, providing excellent performance even in the most demanding kitchens.
All models are WRAS and CE approved and also feature accurate thermostats giving guaranteed wash and rinse temperatures.
Product Features
- 8.2 litre boiler capacity
- 3.5 litre per cycle water consumption
- 65/100/150 sec cycle length
- 500mm x 500mm rack dimension
- Double filters for improved operation and reliability
- Double skinned doors for strength and rigidity
- Rinse aid detergent and drain pumps as standard
- Break tank & rinse booster pump fitted as standard
Advantages:
- Energy saving up to 25%
- High efficiency system based on the use of the heat/steam generated during the wash/rinse phase to preheat the water at the machine supply.
- Zero maintenance, system does not contain filters; no maintenance required.
- No steam and humidity in the room; better environment for end user.
- Environmentally friendly product
Technical Data
- Rack output p/h 55/36/24
- Boiler heating element 3 Phase 9000 Single Phase 6000 W
- Tank heating element 4000 W
- Wash pump 1100 W
- Rinse pump 200 W
- Mains water supply 200+400kPa (2+4 bar) – Ø 3/4 “G
- Water consumption per cycle 3.5 litres
- Cycle length 65/100/150 sec. /8mins
- Temperature (Function) 5° + 40° C
Optional Extras:
Manual Water Softeners: WS08: 8L, WS12: 12L, WS16: 16L
Dimensions
W: 710mm D: 740mm H: 1450mm – 1860
