DC ED900 Economy Passthrough Dishwasher 500mm Basket
DC ED900 Economy Passthrough Dishwasher 500mm Basket offers a cost-effective solution for busy kitchens. Featuring a simple and user-friendly design, these passthrough dishwashers feature a choice of 2 and 3-minute cycles with auto-start operation for efficient cleaning. Analogue wash and rinse tank temperature displays provide clear monitoring, while the single-skinned hood minimises space requirements. Environmentally conscious, the ED Range uses minimal water during operation. Three included baskets ensure ample cleaning capacity, and an engineer diagnostic mode simplifies maintenance. For added convenience, programmable options include rinse thermolock, audio status indicators, and an integral softener (when fitted). With a usable wash height of 400mm, the ED Range accommodates a variety of dishes.
PRODUCT FEATURES:
- 2+3 minute cycle
- Auto-start operation
- Wash tank and rinse tank temperature displays
- Single-skinned hood
- Low water usage
- Three baskets
- Engineer diagnostic mode
- Programmable options: rinse thermolock, audio status indicator, integral softener (when fitted)
- Warranty Options: 1 year parts only or 1 year parts and labour (select at checkout)
Technical Specifications — ED900
- Cycle time: 60 / 120 / 180 sec
- Baskets: 500 × 500 mm (x3)
- Height: 1500 mm
- Height (hood raised): 1930 mm
- Width: 655 mm
- Width including handle: 725 mm
- Depth: 745 mm
- Usable wash height: 400 mm
- Drain height: 470 mm
- Drain Ø: 32 mm
- Wash tank: 22 litres
- Boiler: 5 litres
- Water usage: 2.6 litres per cycle
- Wash element: 3.0 kW
- Boiler element: 6.0 kW
- Total load: 6.75 kW
- Power Options: The DC ED Range is available in both Single Phase and Three Phase options. Please select your preferred power configuration at checkout.
Installation & Site Requirements
- Drain Pump: Required if waste services are higher than the drain outlet.
- Integral Water Softener: Built-in softener protects the machine in hard-water areas (over 100 ppm). Ensure salt is replenished as required.
- Break Tank: Required in high-risk sites (schools, care homes, nurseries, hospitals) to protect the mains water supply.
- Chemical Auto-Dosing Pump: Chemical auto-dosing eliminates user intervention and prevents over- or under-dosing; connect to suitable detergent and rinse-aid containers.
Electrical appliances MUST be installed by a qualified electrician. Incorrect compliance to current installation legislation will invalidate the warranty.

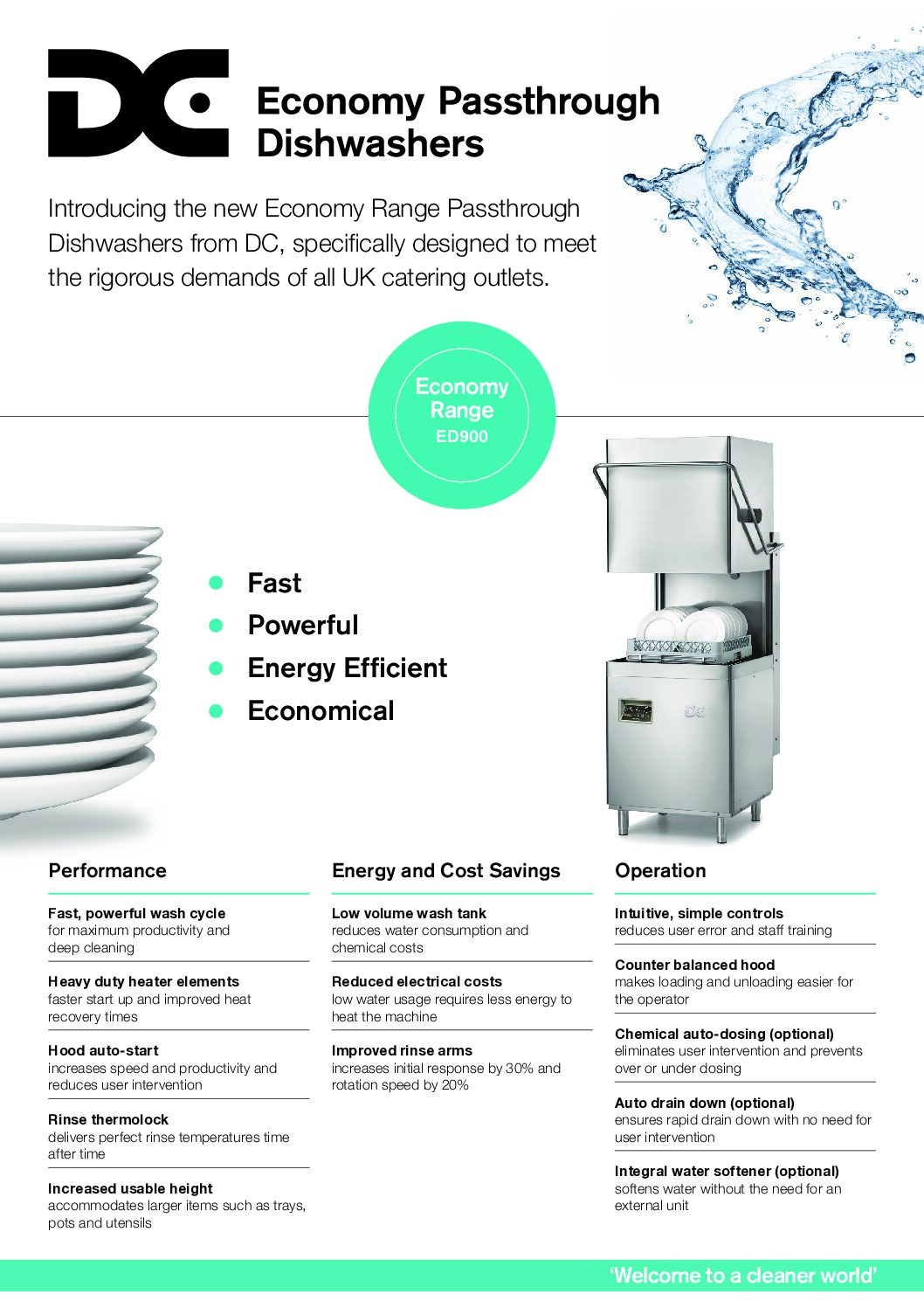

For full technical and installation requirements, please refer to the manufacturer’s specification sheet (attached).
MODELS AVAILABLE:
ED900 – Standard Model
ED900 D – Standard Model + Drain Pump
ED900 IS – Standard Model + Integral Softener
ED900 IS D – Standard Model + Integral Softener + Drain Pump
ED900 CP – Standard Model + Chemical Pump
ED900 CP D – Standard Model + Chemical Pump + Drain Pump
ED900 CP IS – Standard Model + Chemical Pump + Integral Softener
ED900 CP IS D – Standard Model + Chemical Pump + Integral Softener + Drain Pump
