Description

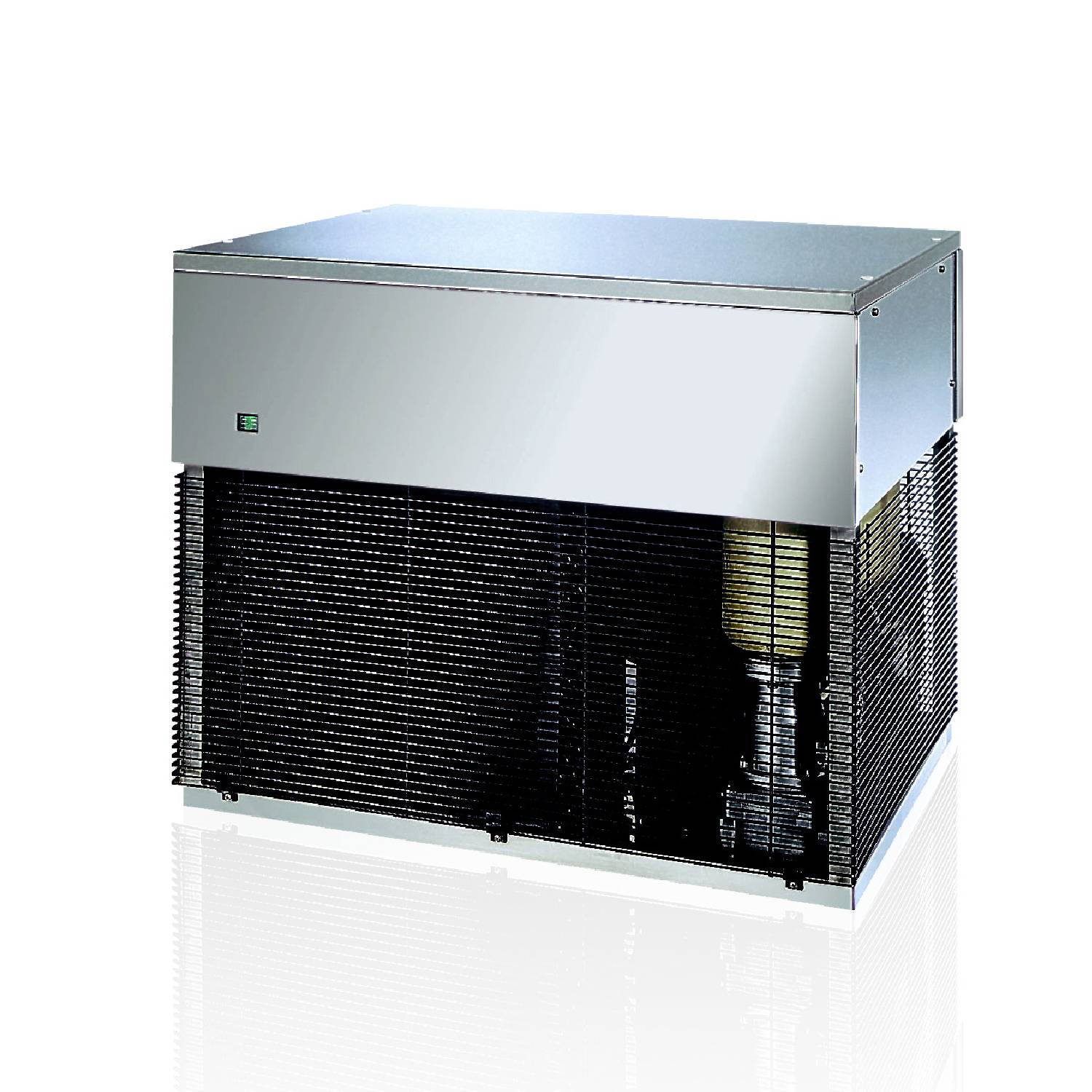

DC DCG500A Modular Icemaker 500kg/24hr (Granular Ice)
DC DCG500A Modular Icemaker 500kg/24hr (Granular Ice) is ideal for heavy-duty, high-volume applications, the DC DCG500A Modular Icemaker delivers up to 500kg of fresh granular ice per 24 hours — perfect for food display counters, fishmongers, medical facilities, and large-scale food prep areas.
Granular ice is softer and more malleable than traditional cube ice, making it ideal for preserving fresh produce, creating attractive displays, or cooling delicate items safely.
This is a modular machine, meaning it produces ice but requires a separate compatible storage bin (sold separately). This gives you flexibility to match bin size to your operational needs, helping you optimise both space and capacity.
The DCG500A is engineered for efficiency and reliability, featuring durable stainless steel construction, low running costs, and easy maintenance access. Whether you’re running a busy fish counter, a commercial kitchen, or a healthcare facility, this machine helps keep your ice supply flowing consistently without disruption.
A 3 years parts only warranty is standard on this model, the option of 3 years parts and labour warranty is available at extra charge. Please select at checkout.
Massive 500kg Output – Premium Granular Ice with 3-Year Warranty Options.
KEY FEATURES:
-
Up to 500kg granular ice production every 24 hours
-
Modular design – requires a separate ice storage bin
-
Energy-efficient with low running costs
-
Stainless steel construction for hygiene and durability
-
Simple to maintain with accessible servicing points
-
Free UK mainland delivery
-
Warranty options: 3 years parts only or 3 years parts and labour
SPECIFICATION:
- Water Temperature: +3C ~ +32C
- Waste Inlet connection: 3/4″
- Waste connection: 21mm
- Icemaker ventilation: 200mm to the rear, 50mm to the sides and top
- Power Supply: 30A
- Ambient Air operating temperatures: Minimum = +10C, Maximum = +38C

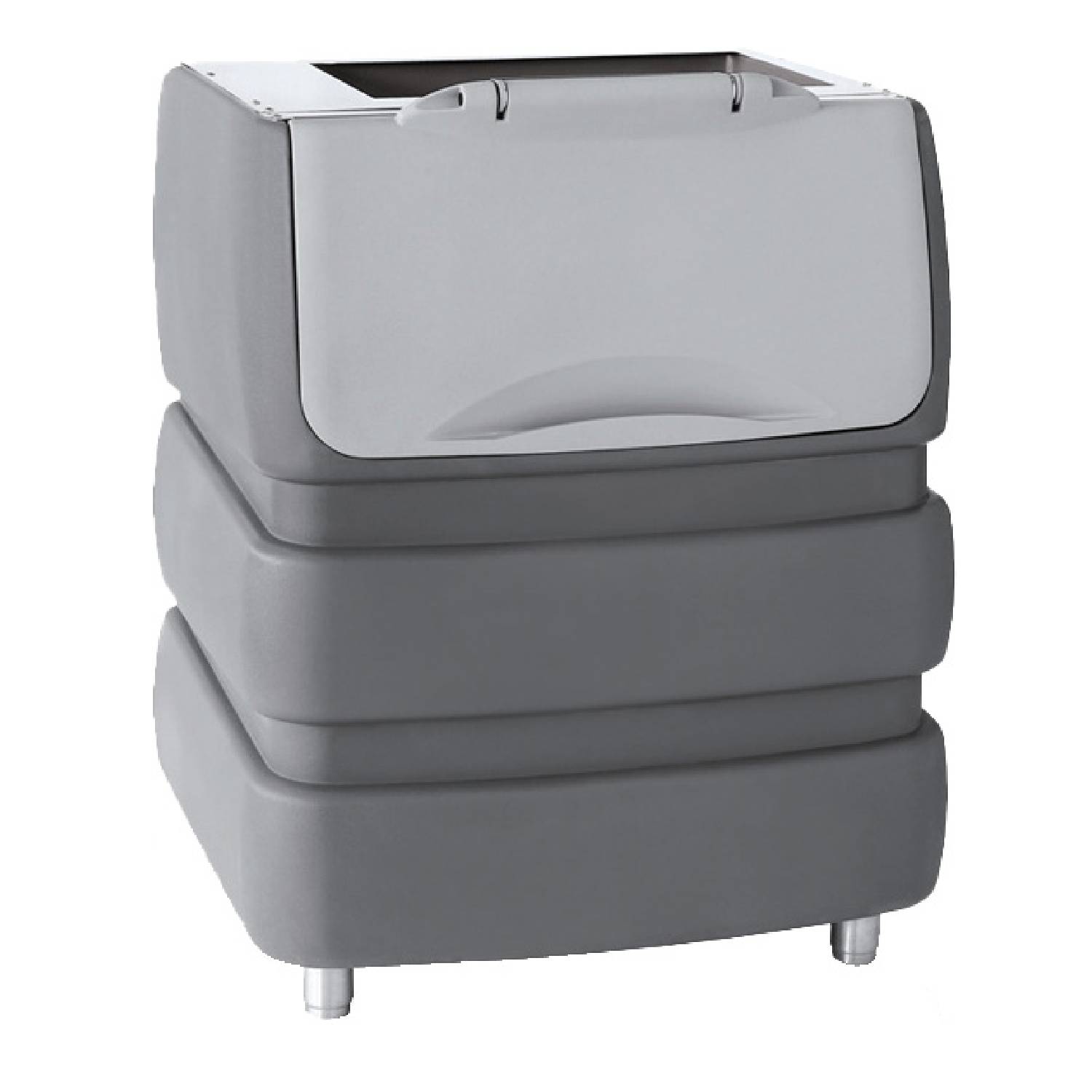

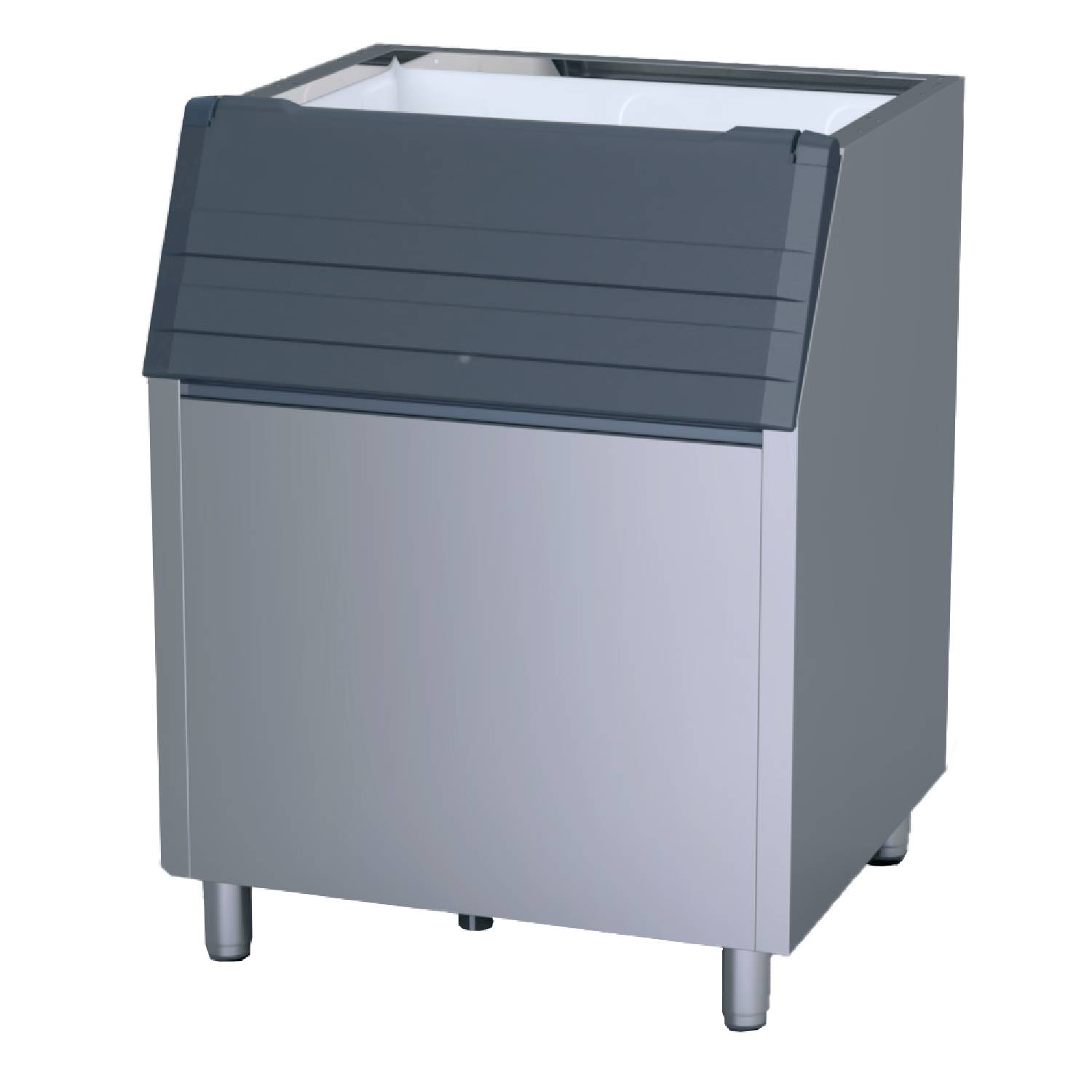

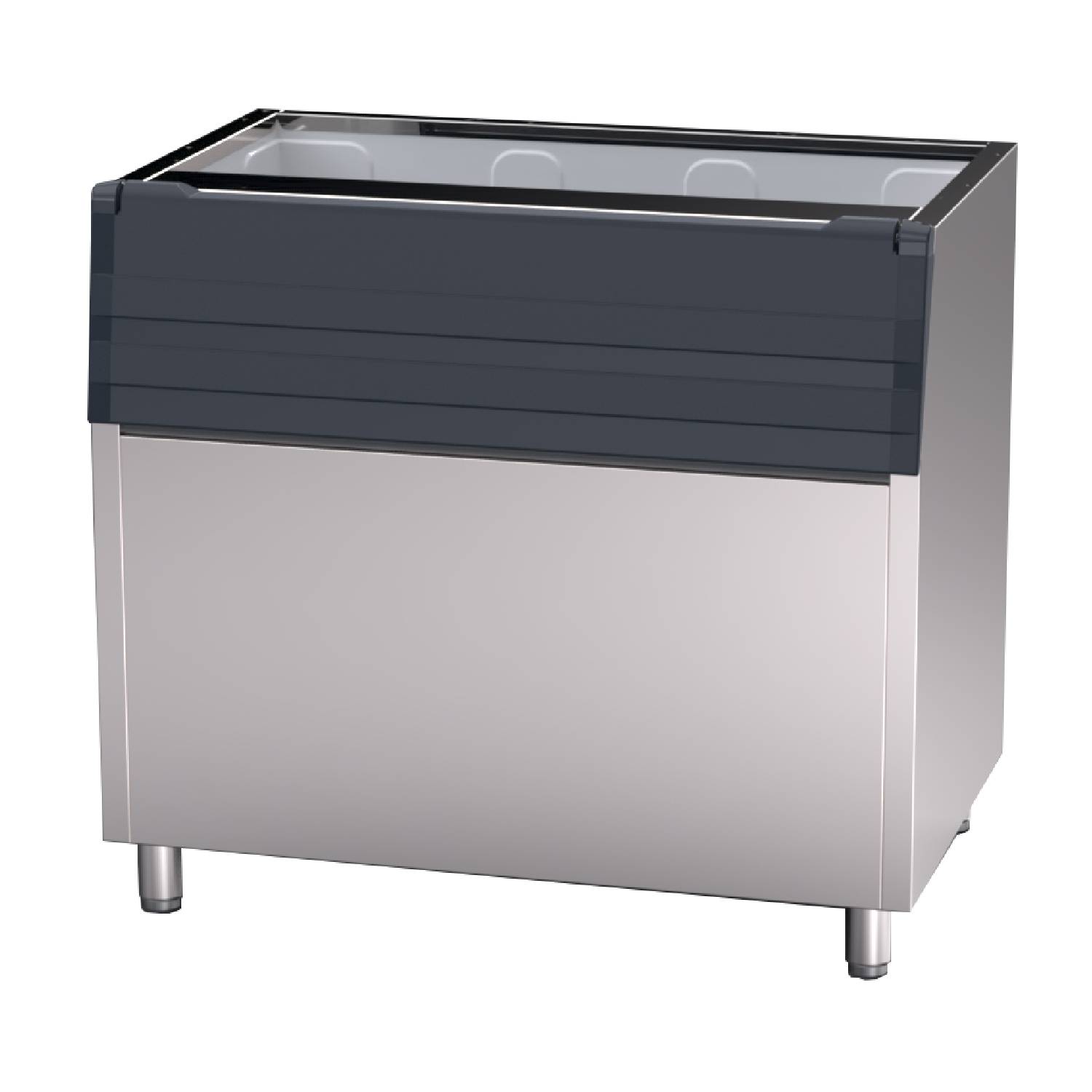

- This model requires an ice storage bin. Compatible with B100, B400, B850 & B530.
EXTERNAL DIMENSIONS:
Width: 640mm
Depth: 470mm
Height: 700mm
PURCHASING GUIDE: (this is a guide only. Please call us on 01379 641223 to discuss your individual requirements)
What size machine do I need? Icemakers are defined by their production capacity per 24 hours and their ice storage capacity.
Do I need a water treatment system? Yes, all icemakers benefit from a water filtration system which removes odours and mineral deposits from the water especially in medium/hard water areas.
Do I need a drain pump? A drain pump is required when the waste services are higher than the drain outlet of the machine.
What electricity supply do I need? This depends on the machine you are buying. Look carefully at the ampage rating to ensure you have an adequate supply.
What water pressure do I need? For your machine to operate at its best you will need a water pressure of 1 bar (14psi) – 6 bar (84psi). If you have low water pressure consider purchasing an external booster pump. If you have high water pressure consider a restrictor valve.
What temperatures do icemakers operate within? The minimum temperature that an air cooled ice machine will work at is 10C, the max temp is 43C. For water cooled models the min water temp is 3C and the maximum is 32C.
Do ice makers need ventilation to operate? yes, you should allow 200mm at the rear of the machine and at least 50mm to the sides and the top.
