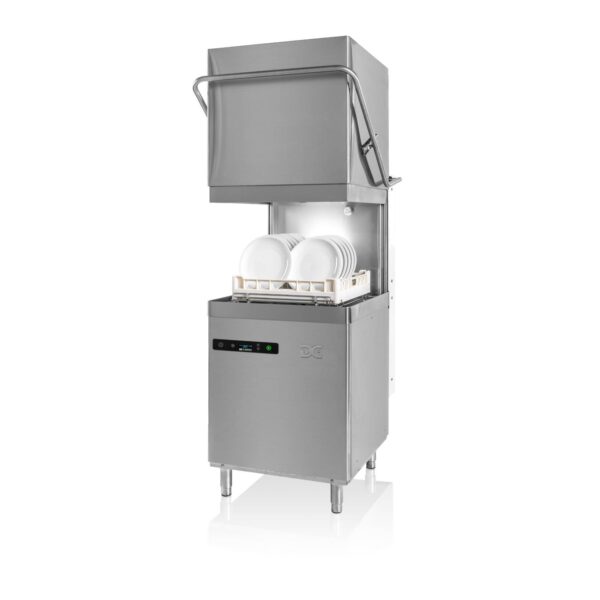

DC PD1300 IS D Premium Range Passthrough Dishwasher with Integral Softener & Drain Pump

£3,055.00 ( £3,666.00 inc. VAT)

Commercial pass-through dishwasher designed to provide versatility, strength and power when most needed.  1, 2+3 minute cycle option, extra loading height, auto-start hood, 18 plate capacity.  Capable of being arranged in either a straight-through or corner configuration.

Models available:

PD1300 – Standard Model

PD1300 D – Standard Model with Drain Pump

PD1300 IS – Standard Model with Integral Softener

PD1300 IS D – Standard Model with Integral Softener & Drain Pump

PD1300 CP – Standard Model with Chemical Pump

PD1300 CP D – Standard Model with Chemical Pump & Drain Pump

PD1300 CP IS – Standard Model with Chemical Pump & Integral Softener

PD1300 CP IS D – Standard Model with Chemical Pump, Integral Softener & Drain Pump.

Spec sheet download

Add to Wishlist
Add to Wishlist
Compare

Description

DC PD1300 IS D Premium Range Passthrough Dishwasher with Integral Softener & Drain Pump

DC PD1300 IS D Premium Range Passthrough Dishwasher with Integral Softener & Drain Pump is part of the Premium range of passthrough dishwashers specifically designed for outstanding performance whilst minimising environmental impact and running costs. This model comes complete with selectable 1, 2, 3 & 8* (*SHR version only) minute cycle timer and auto-start hood. By incorporating a low-volume wash tank, double-skinned hood and insulated boiler, water, electrical and chemical usage and costs are kept to an absolute minimum whilst still ensuring the highest level of cleaning power and hygiene.

OPTIONS: (Please select at checkout)

  • 1 year parts only warranty is standard with this model.  Option of 1 year parts and labour warranty (extra charge applies).
  • This model is available in either Single Phase or Three Phase.  Should you be unsure as to which machine is right for your needs please telephone us on 01379 641223 to discuss further.

PD1300 IS D PRODUCT FEATURES:

  • Heavy duty wash pump
  • Double skinned wash pump
  • Insulated Boiler
  • Easy Clean triple filter system
  • Anti block removable wash and rinse arms
  • Moulded wash tank to prevent debris build-up and assist routine maintenance
  • Optional thermostop for guaranteed rinse temperatures
  • Extra loading height
  • Boiler and wash tank temperature displays
  • Simple, intuitive controls
  • Self draining wash pump for improved hygiene
  • Low volume wash tank
  • Low water usage

PD1300 IS D SPECIFICATIONS:

  • Basket size – 50cm x 50cm
  • Wash Tank Capacity – 28 ltrs
  • Water consumption – 2.4 ltrs
  • Waste Height – 410mm
  • Filters – 3
  • Top Wash Arm
  • Max Loading Height – 400mm
  • Rinse Tank Capacity – 5 ltrs
  • Rinse Element – 6kw
  • Pump – 730 watts
  • Power: 30A/240V/50hz – Single Phase or 3PH + N – 3 Phase (415v)

PD1300 IS D External Dimensions:

Width: 650mm

Depth : 745mm

Height: 1500mm (Height hood raised 1950mm)



Purchasing Guide (this is a guide only; to discuss your individual requirements please call us on 01379 641223)

Do I need a water softener? All ware washing machines require a softener if the water supply exceeds 100ppm. By having an external or internal softener fitted to your machine you will greatly improve your washing results, reduce running costs and increase the life expectancy of your product. Please note that internal water softeners are only suitable for cold water. When connecting your machine to a hot water supply make sure you specify a hotwater softener.

Do I need a Break Tank? Type ‘A’ Break Tanks are a stipulation of the Water Supply (Water fittings) Regulations and Scottish Water Byelaws and should be fitted to machines that are to be used as commercial dishwasher is sites such as Hospitals, Hotels or any site that may come into contact with contaminated products. A Break tank provides an air gap in between the mains supply and the storage reservoir in the dishwasher. This eliminates the possibility of dirty or contaminated water backflow into the mains system as there is no contact between the two.

What electricity supply do I need? The electricity supply you need depends on the machine you are buying.  Look carefully at the ampage rating of the machine you are looking to purchase to ensure you have an adequate supply.

Do I need a drain pump? A drain pump is required when the waste services are higher than the drain outlet of the machine.

Do I need a Chemical Dosing Pump? Some businesses have a chemical dosing pump already. This is normally a box that is located on a wall that takes in rinse aid and detergent and distributes them accordingly to the Passthrough. If this is not something already on site then you will need an internal Chemical dosing pump to distribute your rinse aid and detergent into your wash cycles.

What water pressure & flow rate do I need? For your machine to operate at its ability you’ll need a water pressure of 2-4 bar (28-56psi). Anything less or more than this may adversely affect wash and rinse results.  If you have low water pressure consider purchasing an internal or external rinse booster pump. The minimum flow rate is 10 litres per minute.



Faulty installation, commissioning, misuse, or user related problems are not covered under warranty. Electrical appliances MUST be installed by a qualified electrician. A warranty call out will not be instigated without the name of the installing engineer



Additional information

Dimensions Depth 745 mm , Width 650 mm , Height 1500 mm.
Brand

DC

Power Requirement

30 amp., This unit requires a hardwired electrical supply to be installed by a qualified electrician

Model

PD1300 IS D

Delivery

Free Next Day Delivery if ordered before 12 noon (Weekdays & Mainland UK only) Otherwise please allow up to 48 hours from ordering., Whilst we always try to ensure our stock levels are accurate we advise checking with us that the item is in stock if your order is urgent.

Power

3 Phase Electric, Single Phase Electric

Break-tank

No

Basket Dimensions

500mm x 500mm

Built in Drain Pump

Yes

Chemical Pump

No

Integral Water Softener

Yes
