Description
DC PG50 Premium Glasswasher, 500mm Basket
DC PG50 Premium Glasswasher, 500mm Basket 30 Pint capacity features a new sleek, user-friendly interface with an LCD display and soft touch controls. Choose from 4 pre-programmed cycles or customise your wash with the unique “My Wash” feature. The advanced control panel allows real-time temperature monitoring, logging of previous cycles, and even engineer diagnostic mode for ultimate control. Packed with innovative technology like superior auto-dosing units, an insulated boiler for efficiency, and a double-skinned cabinet for noise reduction, the PG50 tackles dishes with ease while maximising space with its extra-tall wash height. For added flexibility, 30A machines can be derated to 20A or 13A to suit your electrical setup (upon request).
PRODUCT FEATURES:
- Product Code: PG50
- Digital Display
- Five Wash Cycles
- Dedicated MyWash Cycle
- Engineer Menu
- Manager Menu
- Info Menu
- Last Cycle Temperature Display
- Current Temperature Display
- Standby Mode
- Warranty Options: 2 year parts only or 2 year parts and labour (select at checkout)
Technical Specifications — PG50
- Cycle time: 60, 90, 120, 180 sec + user defined
- Basket size: 500 × 500 mm (x2)
- Height: 840 mm
- Width: 605 mm
- Depth: 635 mm
- Depth with door open: 1025 mm
- Usable wash height: 345 mm
- Drain height: 80 mm
- Drain Ø: 25 mm
- Wash tank: 12 litres
- Boiler: 5 litres
- Water usage: 2.6 litres per cycle
- Wash element: 2.0 kW
- Boiler element: 6.0 kW
- Total load: 6.55 kW
Installation & Site Requirements
- Water Softener: Required if water supply exceeds 100 ppm.
- Drain Pump: Required if waste services are higher than the drain outlet.
- Break Tank: Required in high-risk sites (schools, care homes, nurseries, hospitals) to protect the mains water supply.
Electrical appliances MUST be installed by a qualified electrician. Incorrect compliance to current installation legislation will invalidate the warranty.

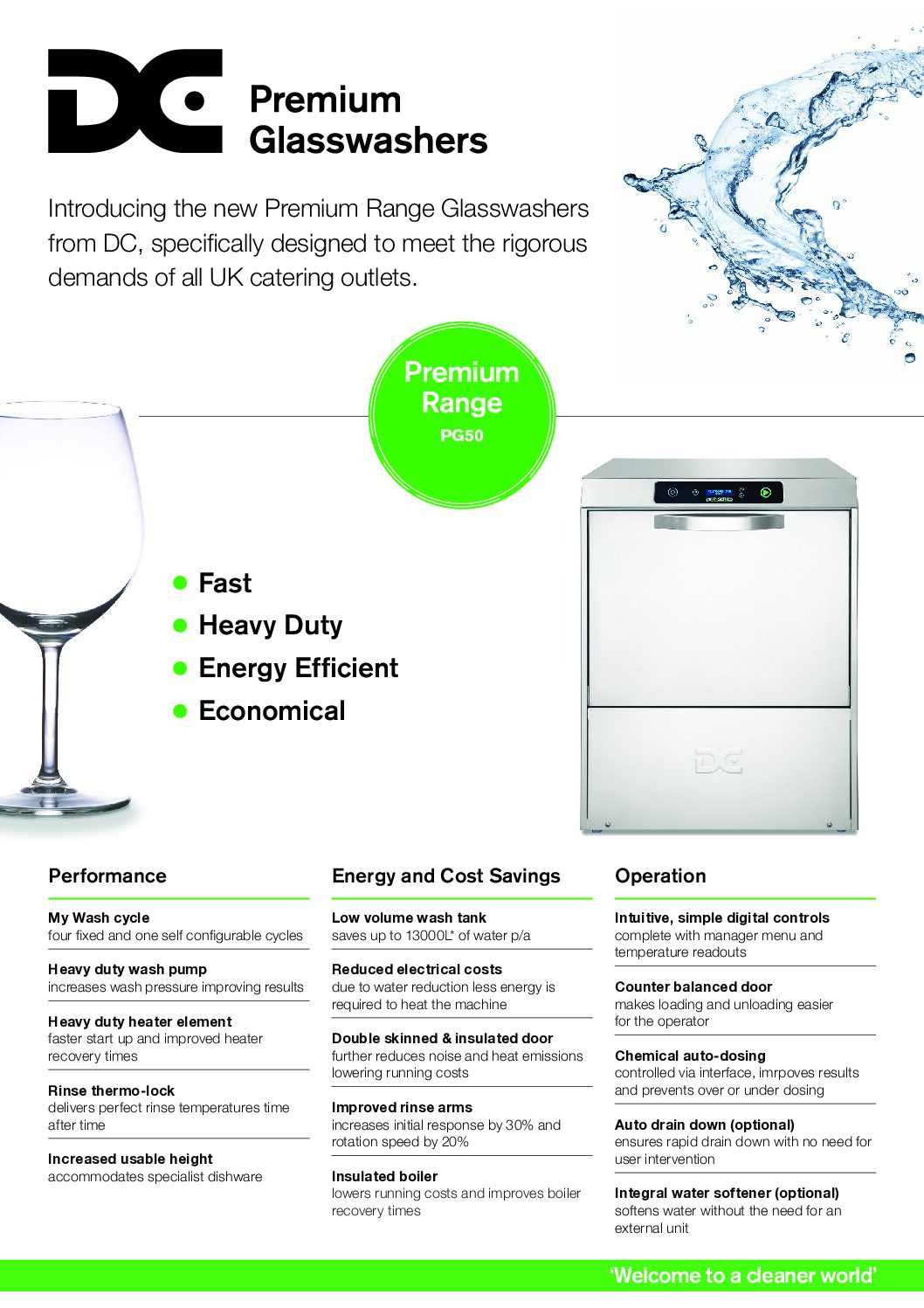

For full technical and installation requirements, please refer to the manufacturer’s specification sheet (attached).
