Description

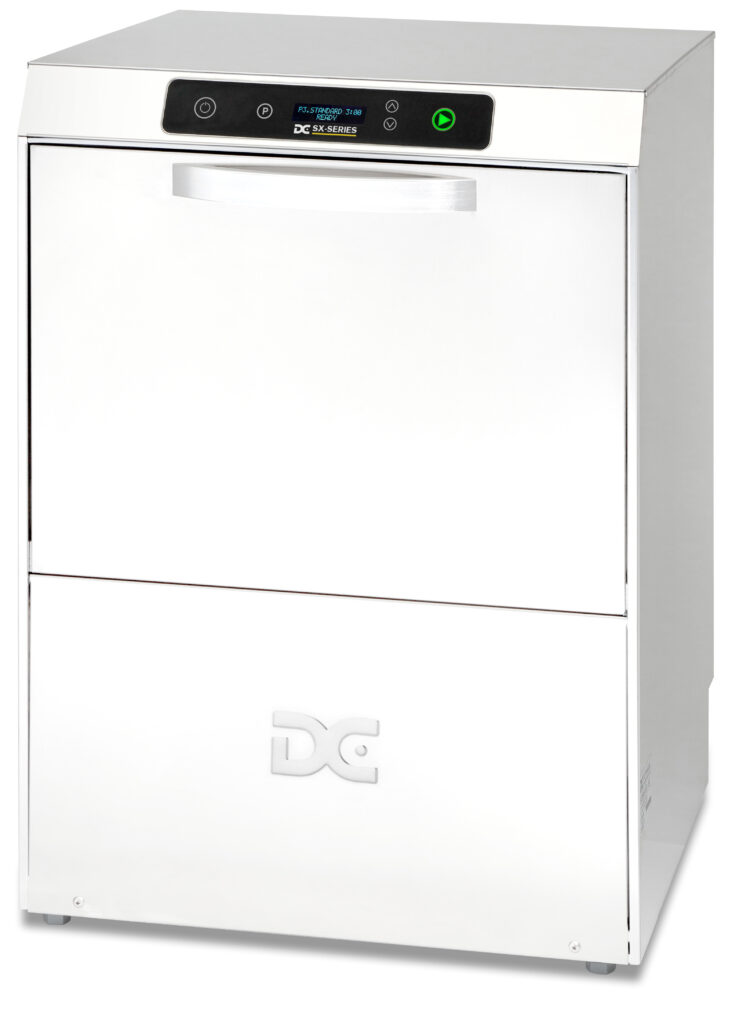

DC SD50A IS D Standard Dishwasher with Integral Softener Break Tank & Drain Pump 500mm Basket
The DC SD50A IS D Standard Dishwasher with Integral Softener Break Tank & Drain Pump 500mm Basket (18 plate) is part of the DC range of frontloading ware-washers. It combines speed, strength and reliability with intense cleaning ability and an easy to use control panel which makes this an user friendly machine. This model is constructed using a double-skinned stainless steel cabinet and door to improve strength, thermal acoustic insulation and reduce running costs. The standard range comes supplied with rinse and detergent dosing units and can be fitted with integral water softeners to help protect the machine and improve results.
PRODUCT FEATURES:
- Water Softener
- Heavy duty wash pump
- Removable anti-block wash and rinse arms
- Hydro dynamic basket slides
- Low water usage
- Easy Clean filters
- Optional thermostat for guaranteed rinse temperatures
- Self draining wash pump for improved hygiene
- Integral detergent and rinse aid dosing units
- Simple, intuitive controls
Technical Specifications — SD50
- Cycle time: 180 sec
- Baskets: 500 × 500 mm (x2)
- Height: 825 mm
- Width: 580 mm
- Depth: 635 mm
- Depth with door open: 1015 mm
- Usable wash height: 315 mm
- Drain height: 200 mm
- Drain Ø: 25 mm
- Wash tank: 26 litres
- Boiler: 2.8 litres
- Water usage: 2.4 litres per cycle
- Wash element: 2 kW
- Boiler element: 2.6 kW
- Total load: 3 kW
Installation & Site Requirements
- Water Softener: Required if water supply exceeds 100 ppm.
- Drain Pump: Required if waste services are higher than the drain outlet.
- Break Tank: Required in high-risk sites (schools, care homes, nurseries, hospitals) to protect the mains water supply.
Electrical appliances MUST be installed by a qualified electrician. Incorrect compliance to current installation legislation will invalidate the warranty.
For full technical and installation requirements, please refer to the manufacturer’s specification sheet (attached).
