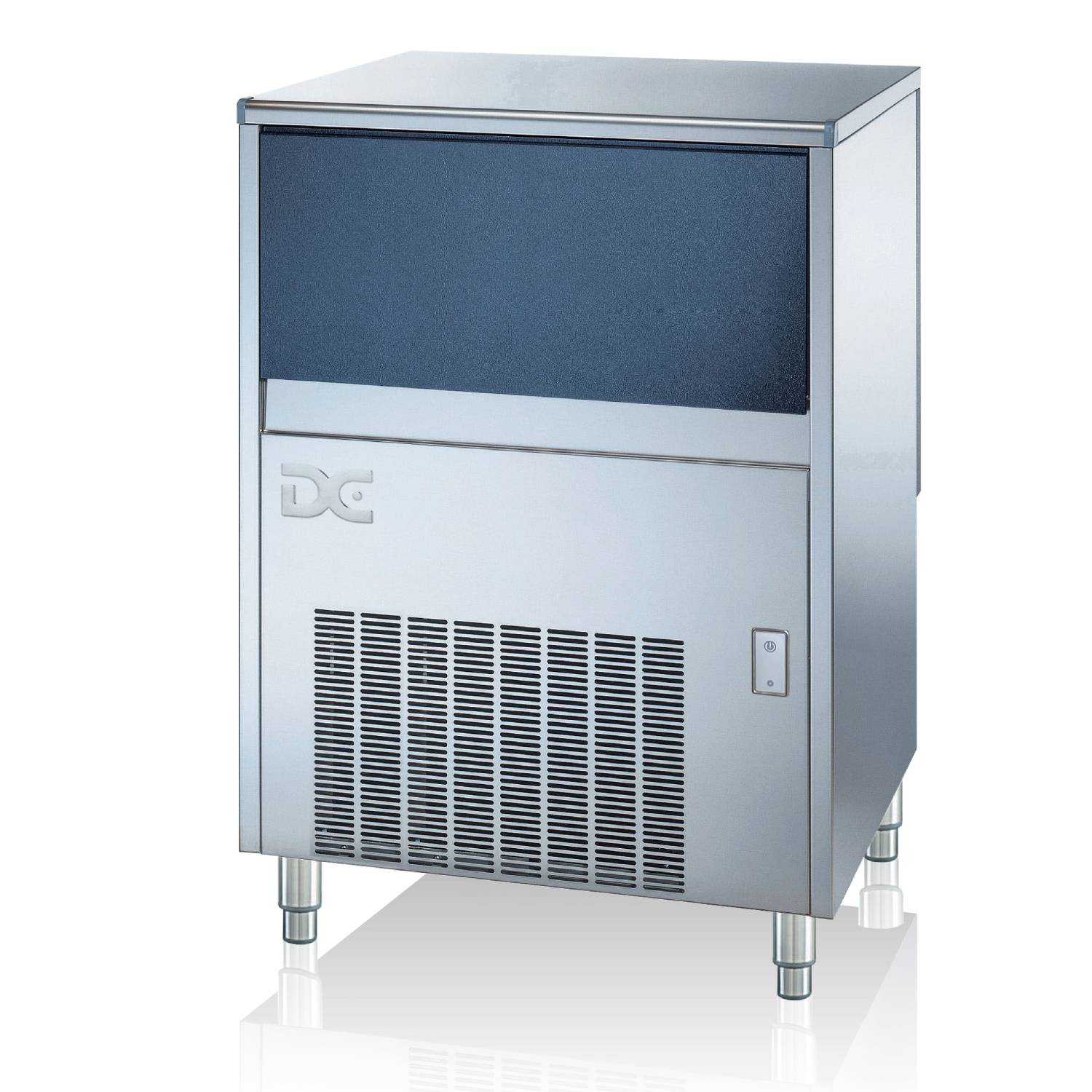

DC DC130-65A Self Contained Icemaker 130kg/24hr (Classic Ice)
DC DC130-65A Self Contained Icemaker 130kg/24hr (Classic Ice) is part of the range of self-contained, compact icemakers from DC constructed using corrosive-resistant stainless steel cabinets for strength and hygiene; using only the highest quality components and evaporators for maximum performance and to insure crystalline ice on demand.
This range features ergonomically designed ice storage bins made from insulated, non-toxic, ABS food-safe plastic with limescale inhibiting evaporator plates. Using the latest spray technology water is sprayed into ice moulds at subzero temperatures, building up layer upon layer of dense crystalline ice.
This model produces Classic Ice: Solid cubes of crystalline ice that cool quickly and melt slowly.
A 3 years parts only warranty is standard on this model, the option of 3 years parts and labour warranty is available at extra charge. Please select at checkout.
- Storage Capacity: 65kg
- Waste Height: 440mm
- Waste Outlet: 24mm
- Water Temperature: +3C ~ +32C
- Waste Inlet connection: 3/4″
- Power Supply: 13A
- Air Temperature: +10C ~ +43C
Purchasing Guide (this is a guide only. Please call us on 01379 641223 to discuss your individual requirements)
What size machine do I need? Icemakers are defined by their production capacity per 24 hours and their ice storage capacity.
Do I need a water treatment system? Yes, all icemakers benefit from a water filtration system which removes odours and mineral deposits from the water especially in medium/hard water areas.
Do I need a drain pump? A drain pump is required when the waste services are higher than the drain outlet of the machine.
What electricity supply do I need? This depends on the machine you are buying. Look carefully at the ampage rating to ensure you have an adequate supply.
What water pressure do I need? For your machine to operate at its best you will need a water pressure of 1 bar (14psi) – 6 bar (84psi). If you have low water pressure consider purchasing an external booster pump. If you have high water pressure consider a restrictor valve.
What temperatures do icemakers operate within? The minimum temperature that an air cooled ice machine will work at is 10C, the max temp is 43C. For water cooled models the min water temp is 3C and the maximum is 32C.
Do ice makers need ventilation to operate? yes, you should allow 200mm at the rear of the machine and at least 50mm to the sides and the top.
