Description

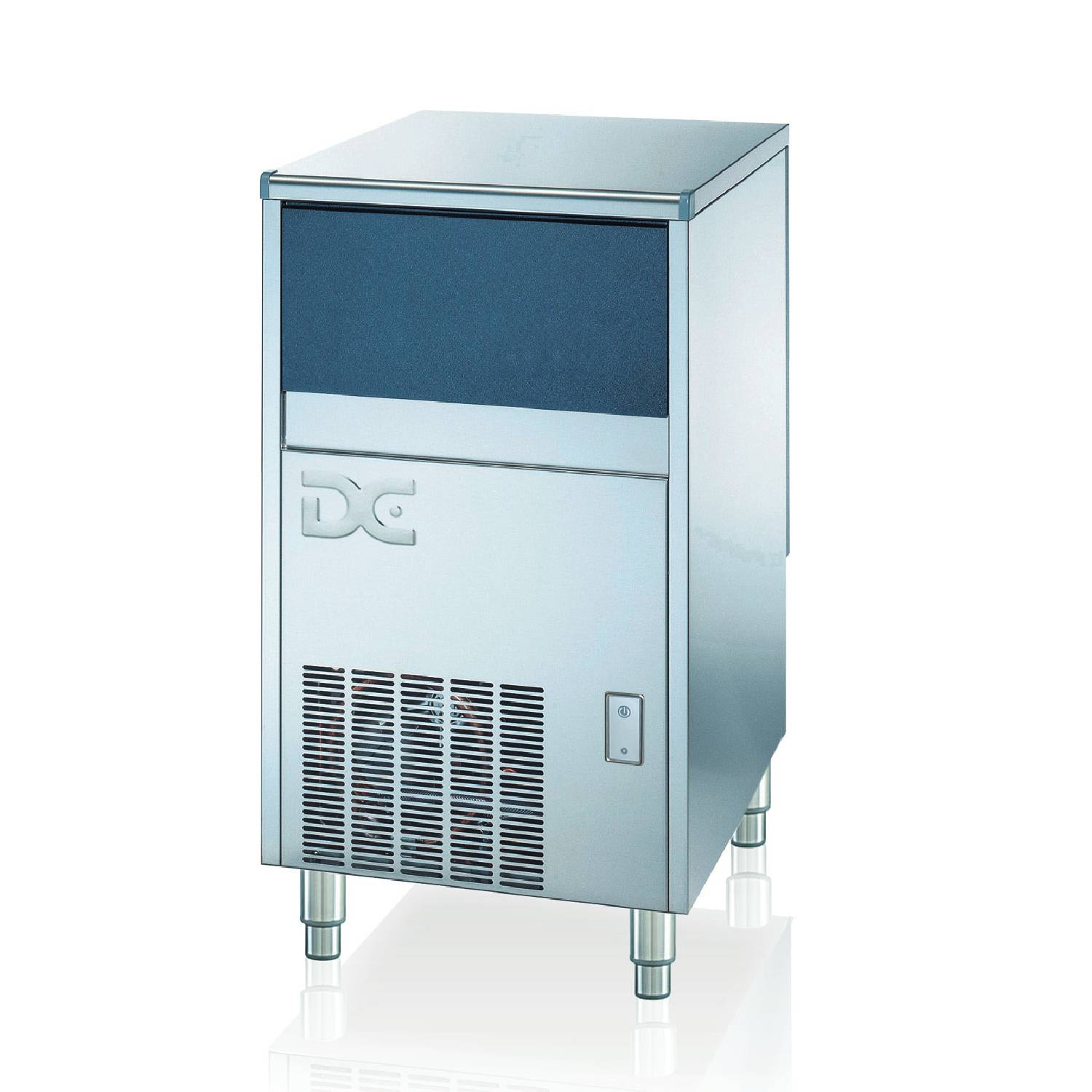

DC DCG90-20A Self Contained Icemaker 90kg/24hr (Granular Ice)
DC DCG90-20A Self Contained Icemaker 90kg/24hr (Granular Ice) is part of the range of self-contained, compact icemakers from DC constructed using corrosive-resistant stainless steel cabinets for strength and hygiene; using only the highest quality components and evaporators for maximum performance and to insure crystalline ice on demand. Using the latest technology, a cylindrical evaporator granulates the ice by using an Archimedean screw that ejects the granules into the insulated storage bin below.
This model produces Granular Ice: similar to crushed ice, it’s softer than cubes and chewable, while its mouldable properties suit displays or packaging applications.
A 3 years parts only warranty is standard on this model, the option of 3 years parts and labour warranty is available at extra charge. Please select at checkout.
SPECIFICATION:
- Storage Capacity: 20kg
- Water Temperature: +3C ~ +32C
- Drain Height: 240mm inc feet
- Waste Inlet connection: 3/4″
- Waste connection: 21mm
- Icemaker ventilation: 200mm to the rear, 50mm to the sides and top
- Power Supply: 13A
- Air Temperature: +10C ~ +43C
EXTERNAL DIMENSIONS:
Width: 496mm
Depth: 660mm
Height: 685mm
Purchasing Guide (this is a guide only. Please call us on 01379 641223 to discuss your individual requirements)
What size machine do I need? Icemakers are defined by their production capacity per 24 hours and their ice storage capacity.
Do I need a water treatment system? Yes, all icemakers benefit from a water filtration system which removes odours and mineral deposits from the water especially in medium/hard water areas.
Do I need a drain pump? A drain pump is required when the waste services are higher than the drain outlet of the machine.
What electricity supply do I need? This depends on the machine you are buying. Look carefully at the ampage rating to ensure you have an adequate supply.
What water pressure do I need? For your machine to operate at its best you will need a water pressure of 1 bar (14psi) – 6 bar (84psi). If you have low water pressure consider purchasing an external booster pump. If you have high water pressure consider a restrictor valve.
What temperatures do icemakers operate within? The minimum temperature that an air cooled ice machine will work at is 10C, the max temp is 43C. For water cooled models the min water temp is 3C and the maximum is 32C.
Do ice makers need ventilation to operate? yes, you should allow 200mm at the rear of the machine and at least 50mm to the sides and the top.
