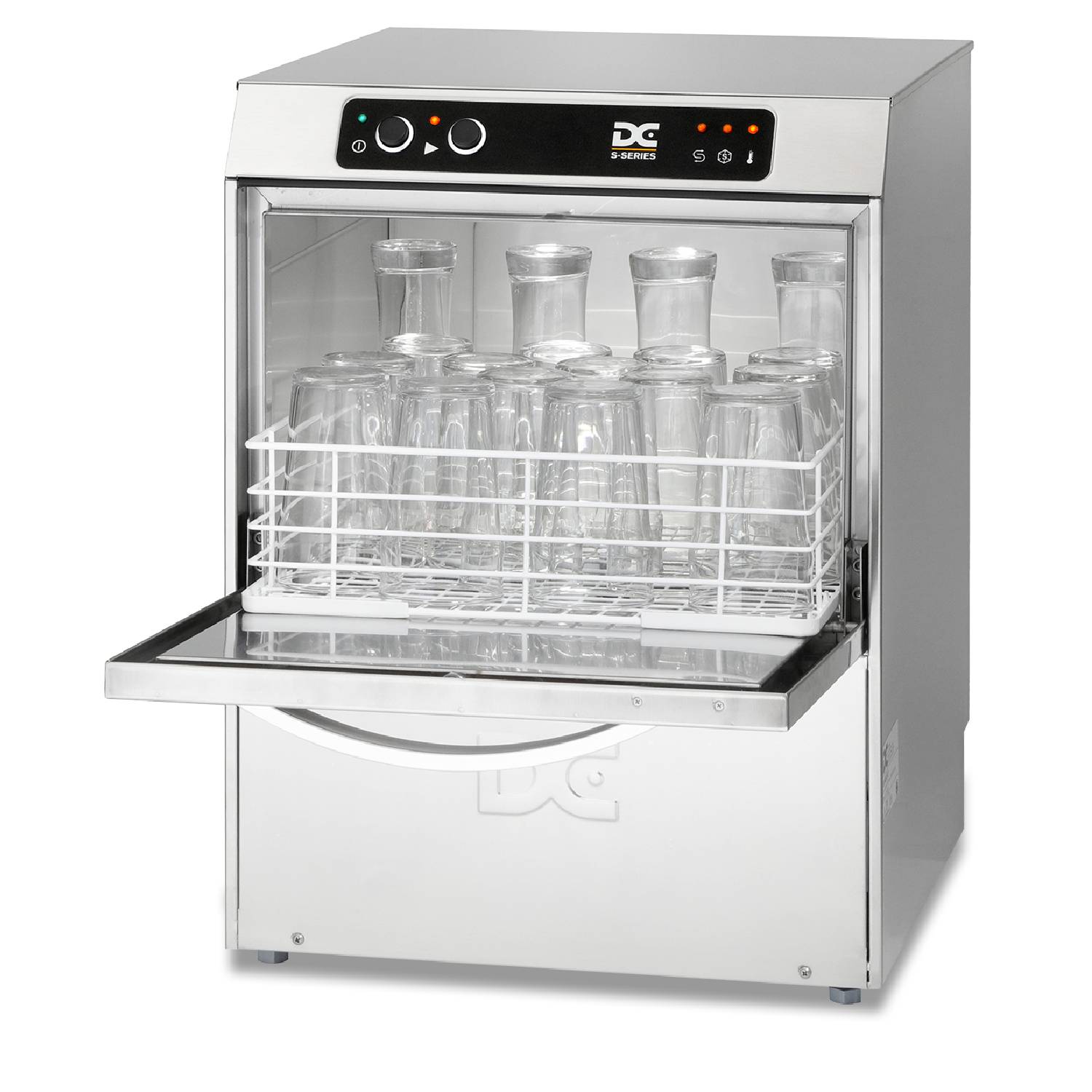

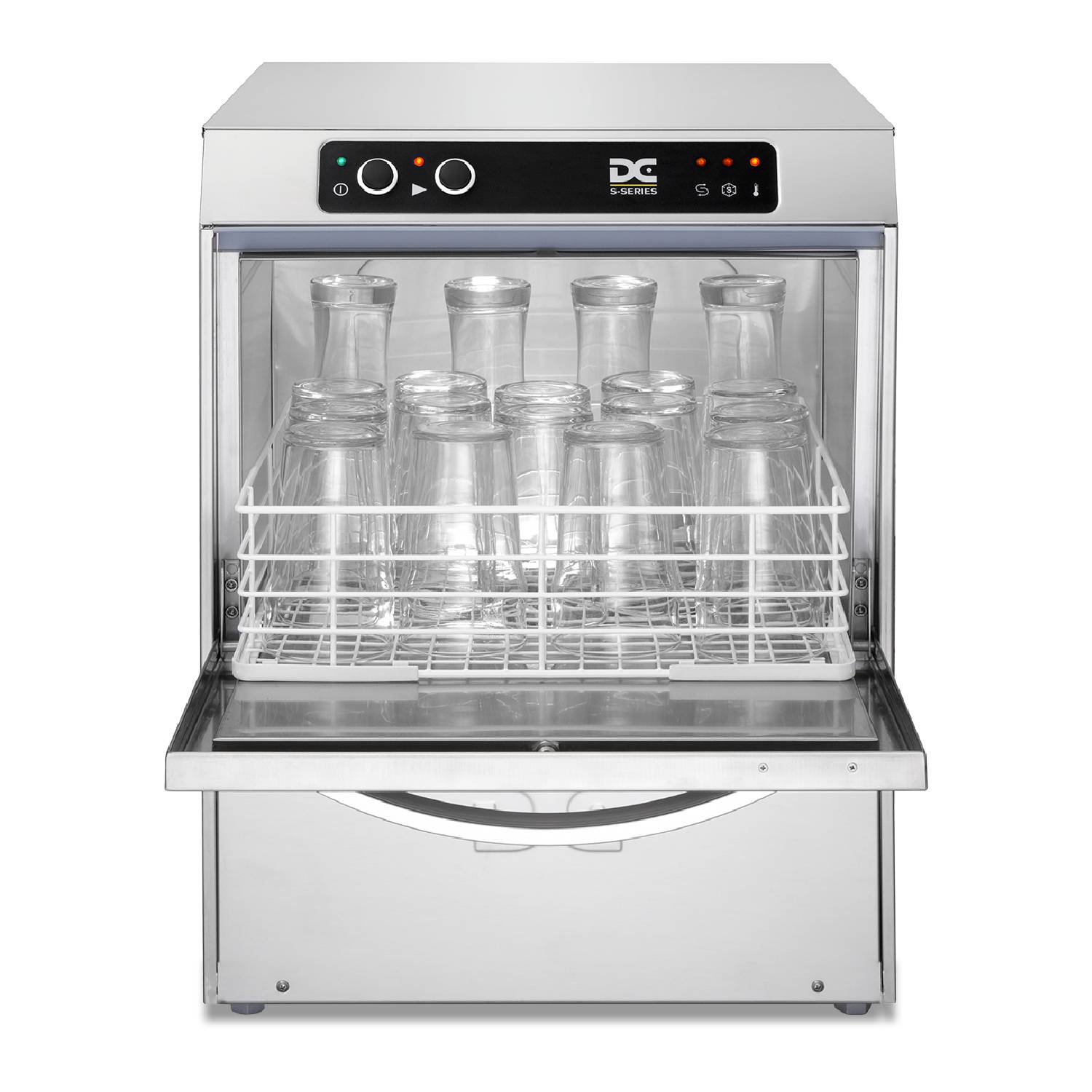

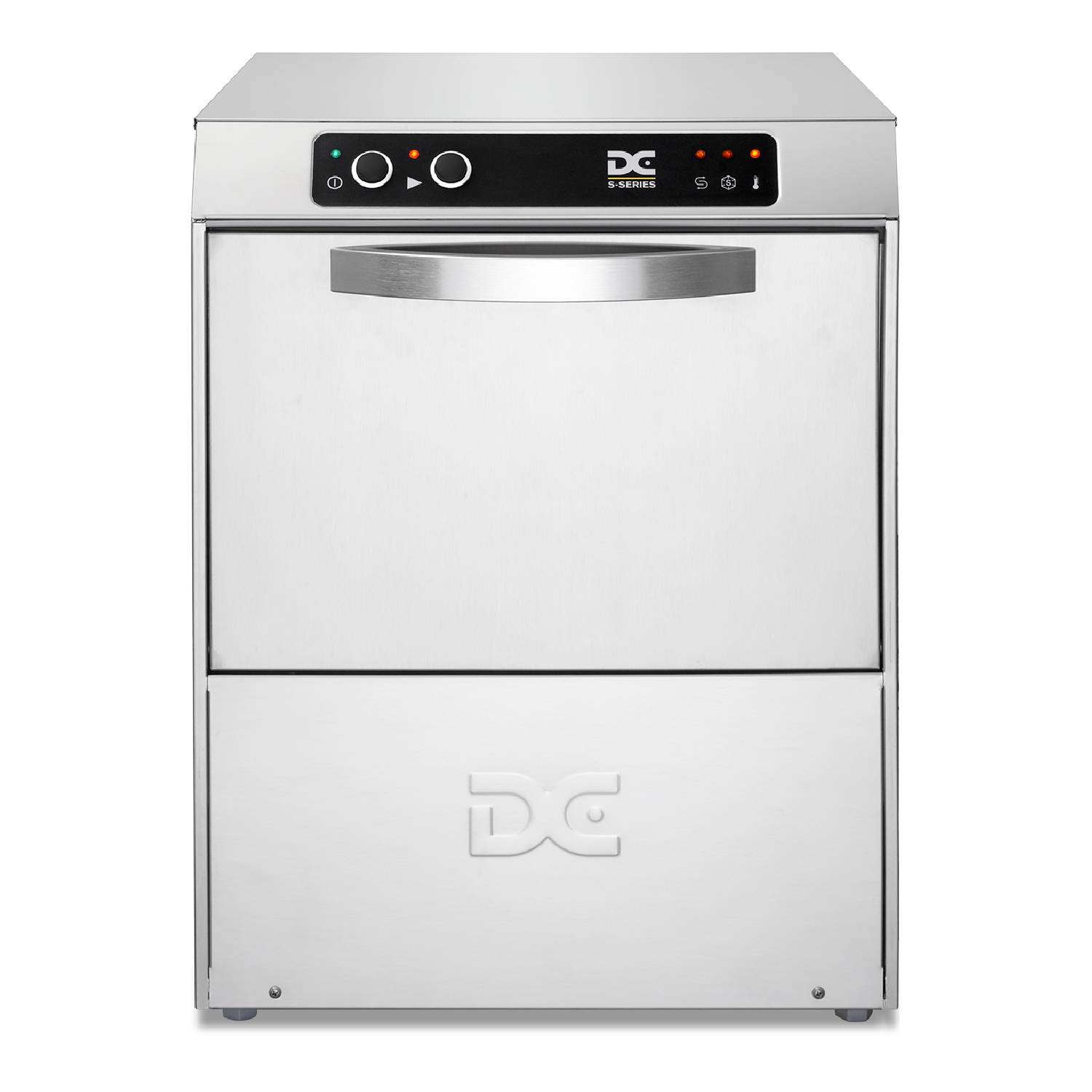

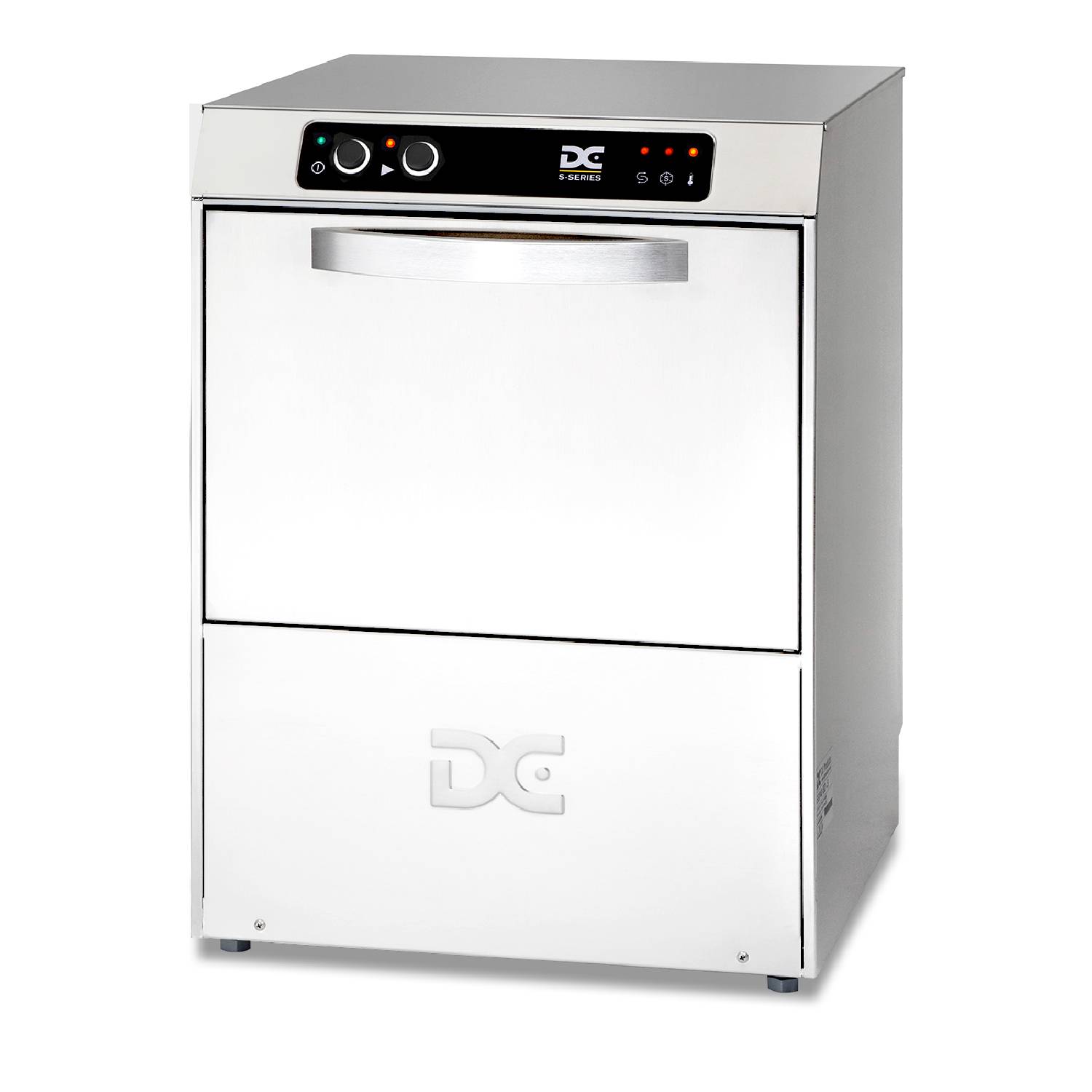

DC SG40 D Standard Glasswasher with Drain Pump, 400mm Basket 18 pint
DC SG40 D Standard Glasswasher with Drain Pump, 400mm Basket 18 pint is a quality compact glasswasher from the Standard Range of DC, specifically engineered with a double-skinned stainless steel cabinet and door to improve strength, thermal acoustic insulation and reduce overall running costs. The DC Standard Range of glasswashers are ideal for those wishing to combine efficiency with superb product quality. All models within this range can be outfitted with a plethora of add-ons, such as an optional drain pump, integral water softener or cold rinse.
1 years parts only warranty is standard with this model. Option of 1 years parts and labour warranty is available at an additional cost. Please select your option at checkout.
SG40 D Product Features:
- Energy-saving wash pump
- Double-skinned stainless-steel cabinet and door
- Low water usage
- EasyClean filters
- Removable anti-block wash and rinse arms
- Hydro-dynamic basket slides
- Optional thermostop for guaranteed rinse temperatures
- Integral detergent and rinse aid dosing units
- Simple, intuitive controls
- Supplied with 2 glass baskets
Technical Specifications
- Cycle time: 120 seconds
- Baskets (x2): 400 × 400 mm
- External dimensions (H × W × D): 690 × 475 × 515 mm
- Depth with door open: 795 mm
- Usable wash height: 300 mm
- Drain height: 120 mm
- Drain diameter: 25 mm
- Wash tank capacity: 14 litres
- Boiler capacity: 2.8 litres
- Water usage: 2.4 litres per cycle
- Wash element: 1.6 kW
- Boiler element: 2.8 kW
- Total electrical load: 3 kW
Installation & Site Requirements
- Water softener: Required if supply hardness exceeds 100 ppm. Internal or external softener improves results, reduces running costs, and extends machine life.
- Drain pump: Needed when the site waste is higher than the machine’s drain outlet.
- Break tank: Fit when connecting a commercial dishwasher to the mains water supply.
- Rinse booster pump: Consider if site water pressure is low.
- Installation & warranty: Electrical appliances must be installed by a qualified electrician. Faulty installation/commissioning, misuse, or user-related issues are not covered. A warranty call-out will not be arranged without the installing engineer’s name.
For full technical and installation requirements, please refer to the manufacturer’s specification sheet (attached).
