DC SXG45 Standard Extra Frontloading Glasswasher 450mm Basket

£1,100.00 ( £1,320.00 inc. VAT)

The DC’s Standard Extra Range includes a dual element configuration and insulated boiler as standard to ensure quicker startup, recovery time and greatly improved temperature maintenance. 2 minute cycle, 25 pint capacity.

Models available in this range:

SXG45 – Standard Model

SXG45 D – with drain pump

SXG45 IS – with integral softener

SXG45 IS D – with integral softener and drain pump

Clear
Add to Wishlist
Add to Wishlist
Compare

Description

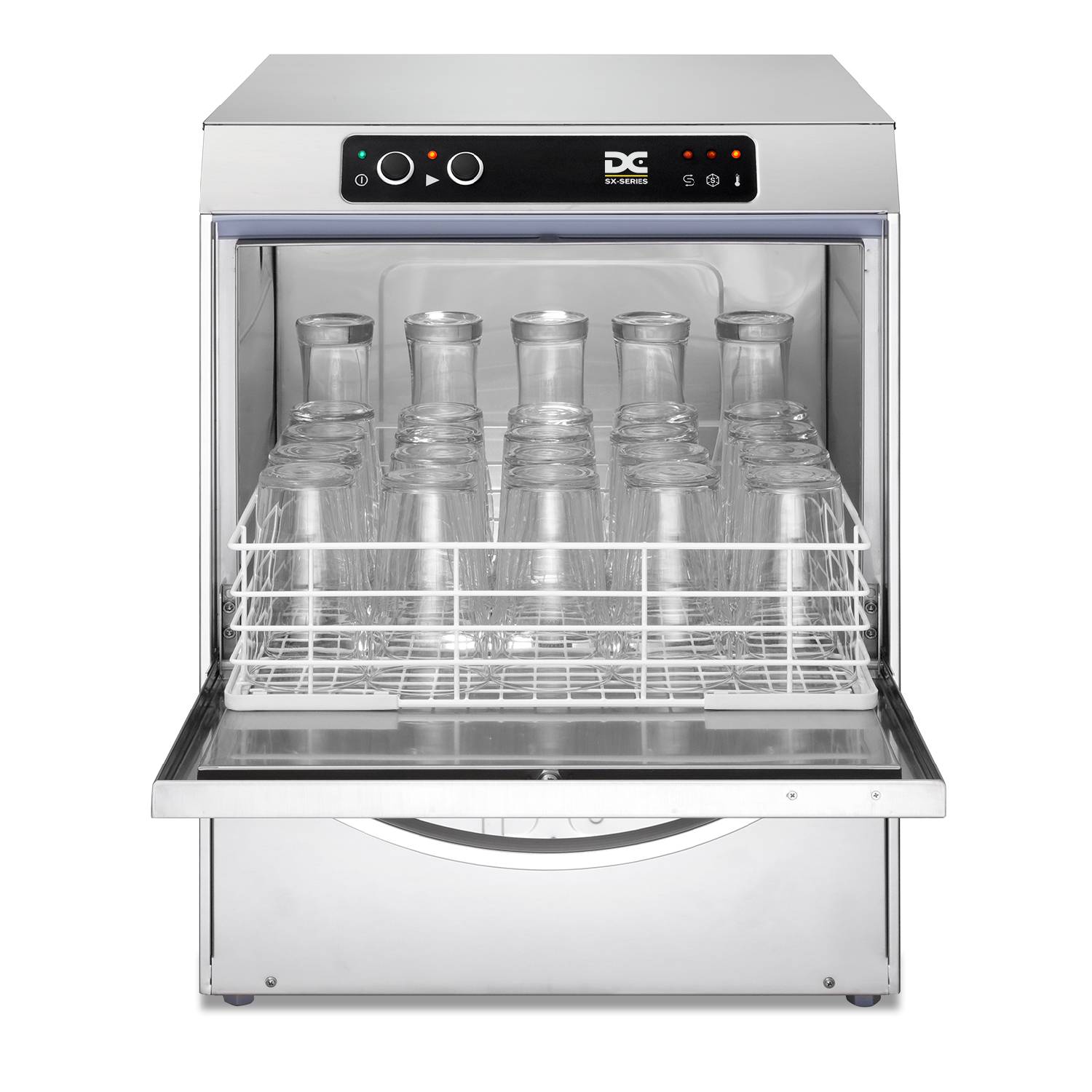

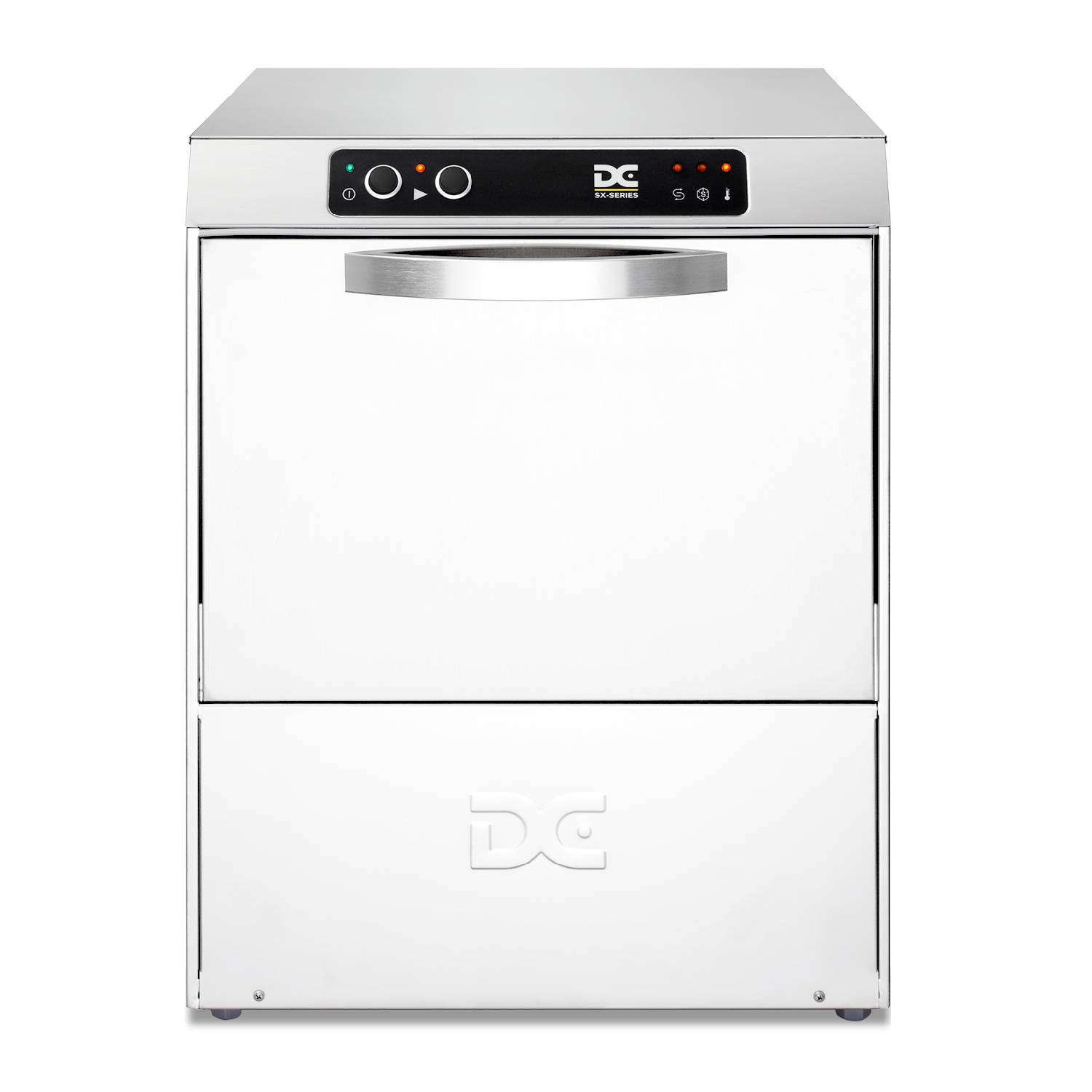

DC SXG45 Standard Extra Frontloading Glasswasher 450mm Basket

DC SXG45 Standard Extra Frontloading Glasswasher 450mm Basket is an exceptionally high quality glasswasher from the Standard Extra Range of DC. Aside from being constructed of stainless steel, the SXG45 includes a dual element configuration and insulated boiler as standard to ensure quicker startup, recovery time and greatly improved temperature maintenance. The DC’s Standard Extra Range places great emphasis on performance and environmental awareness.

This model comes with 1 year parts only warranty as standard.  Option of 1 year parts and labour warranty available (additional cost)  Please select at checkout.

SXG45 Product Features:

  • Energy-saving wash pump
  • Double-skinned stainless-steel cabinet and door
  • Low water usage
  • EasyClean filters
  • Removable anti-block wash and rinse arms
  • Hydro-dynamic basket slides
  • Optional thermostop for guaranteed rinse temperatures
  • Integral detergent and rinse aid dosing units
  • Dual element configuration
  • Insulated boiler
  • Superior peristaltic rinse aid dosing pump
  • Simple, intuitive controls
  • Supplied with 2 glass baskets

Specifications:

  • Dimensions W515 x D555 x H680mm
  • 25 pint capacity
  • 2 filters
  • Cycle time of 2 minutes
  • Wash tank capacity 18Ltr
  • Water consumption 2.4Ltr
  • Required water pressure of 2-4 bar (28-56 psi).
  • Waste outlet diameter 25mm
  • Waste height 120mm
  • Requires a hardwired electrical supply to be installed
  • Usable wash height 310mm
  • Machine drain height 120mm
  • Basket size 450 x 450mm
  • Weight of 52kg
  • 1 year parts only warranty

Purchasing Guide (this is a guide only; to discuss your individual requirements please call us on 01379 641223)

Do I need a water softener? All ware washing machines require a softener if the water supply exceeds 100ppm. By having an external or internal softener fitted to your machine you will greatly improve your washing results, reduce running costs and increase the life expectancy of your product. Please note that internal water softeners are only suitable for cold water. When connecting your machine to a hot water supply make sure you specify a hotwater softener.

What electricity supply do I need? The electricity supply you need depends on the machine you are buying.  Look carefully at the ampage rating of the machine you are looking to purchase to ensure you have an adequate supply.

Do I need a drain pump? A drain pump is required when the waste services are higher than the drain outlet of the machine.

Do I need a type ‘A’ break tank? Type A break tanks should be fitted to machines that are to be used as commercial dishwashers and connected to the mains water supply.

What water pressure & flow rate do I need? For your machine to operate at its ability you’ll need a water pressure of 2-4 bar (28-56psi). Anything less or more than this may adversely affect wash and rinse results.  If you have low water pressure consider purchasing an internal or external rinse booster pump. The minimum flow rate is 10 litres per minute.

Warranty:

Faulty installation, commissioning, misuse, or user related problems are not covered under warranty. Electrical appliances MUST be installed by a qualified electrician. A warranty call out will not be instigated without the name of the installing engineer.



Additional information

Weight52 kg
DimensionsD 555 , W 515 , H 680 mm
Brand

DC

Cycle Duration

120 sec

Delivery Options

Free Standard Delivery, exclusions apply*, Next Day (weekdays) pre 12.00 – £45.00

Material

Stainless Steel

Model

SXG45

Power

Single Phase Electric

Power Requirement

20 Amp single phase. Needs to be hard wired to a mains electricity supply.

Warranty

1 years parts and labour warranty, 1 years parts only warranty as standard.

Delivery

*Free Standard Delivery, allow up to 48 hours. Mainland only, excludes Scottish Highlands, Ireland and Channel/Offshore Islands (POA), Next day pre 12.00 £45 (exclusions apply – mainland only excludes Scottish Highlands, Ireland and Channel/Offshore Islands (POA), Whilst we always try to ensure our stock levels are accurate we advise checking with us that the item is in stock if your order is urgent.

Built in Drain Pump

No

Chemical Pump

No

Break-tank

No

Basket Dimensions

450mm x 450mm

Integral Water Softener

No
