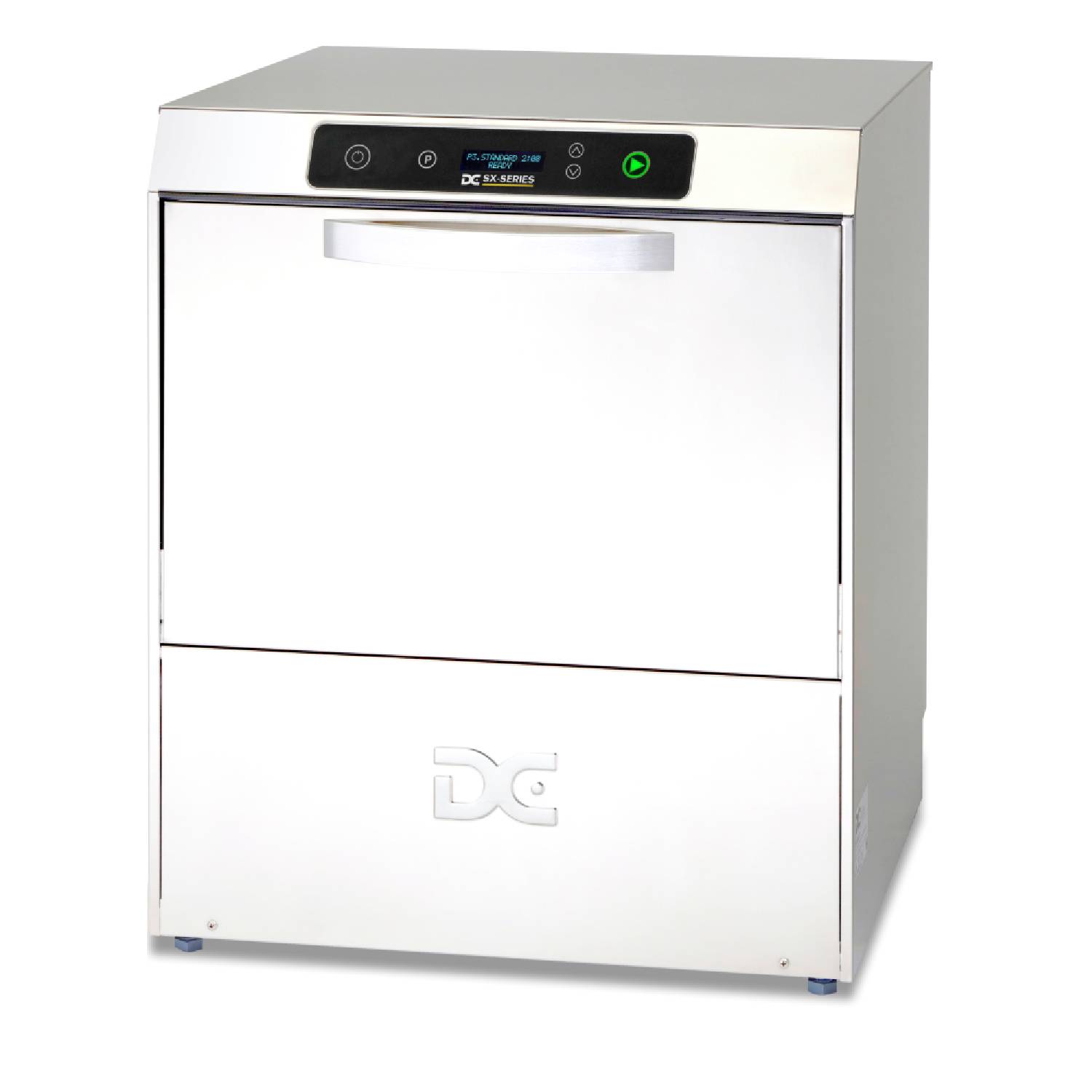

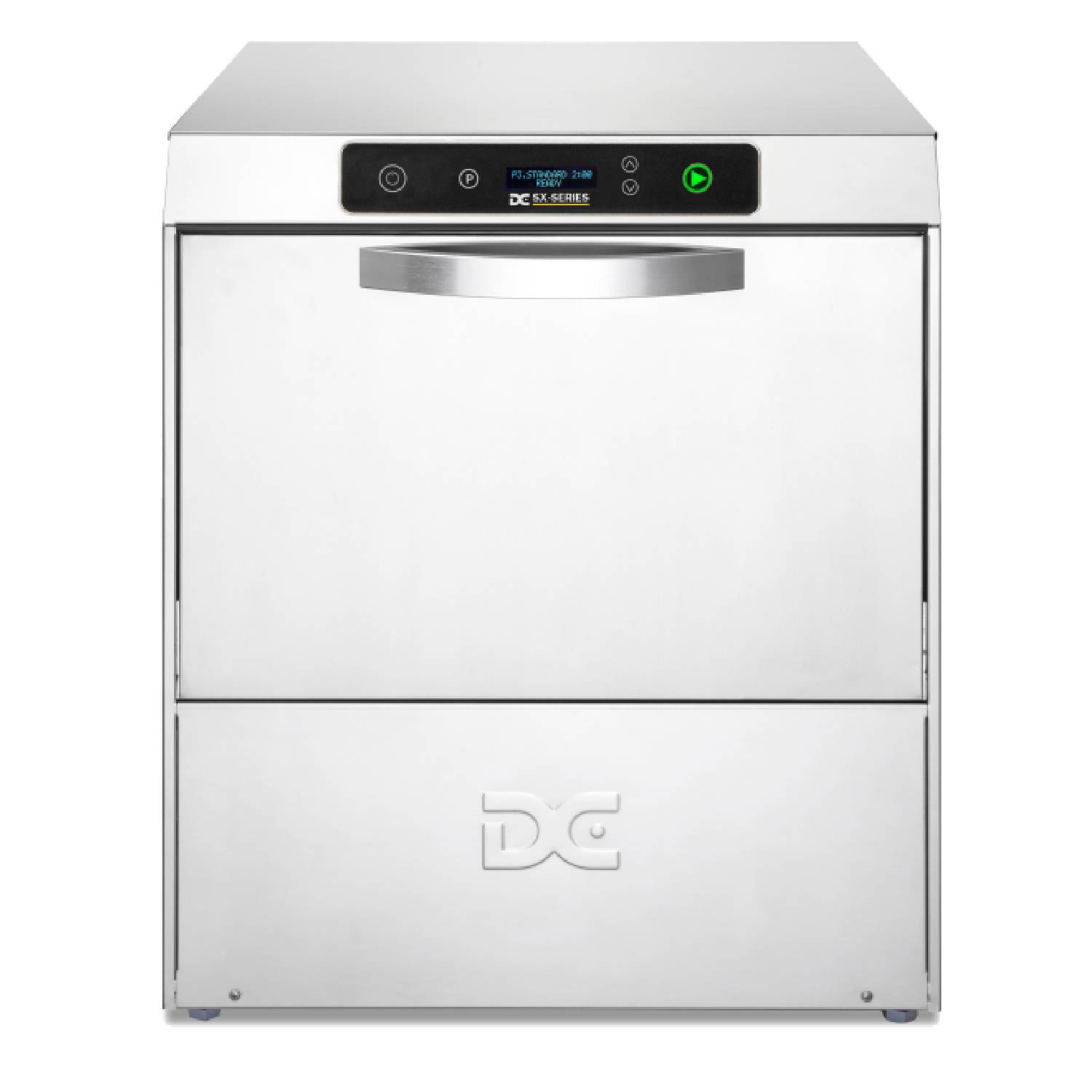

DC SXG50 IS Standard Glasswasher with Integral Softener 500mm Basket
DC SXG50 IS Standard Glasswasher with Integral Softener 500mm Basket has had a high-tech upgrade with a new LCD display, soft touch controls, and multiple wash cycles. Choose from 4 fixed options or customise your cleaning with the “My Wash” cycle. Get real-time temperature readouts and even track previous cycles for record-keeping. The advanced control panel lets you adjust chemical dosing and activate standby mode.
This feature-packed machine features superior dosing units, an insulated boiler for improved efficiency, and double-skinned construction for noise reduction. It comes with two glass baskets and can even be derated from 20A to 13A for more flexible installation.
PRODUCT FEATURES:
- Product Code: SXG50 IS
- Digital Display
- Five Wash Cycles
- Dedicated MyWash Cycle
- Engineer Menu
- Manager Menu
- Info Menu
- Last Cycle Temperature Display
- Current Temperature Display
- Standby Mode
- 20A to 13A derating option for flexible installation (upon request).
- Warranty Options: 2 year parts only or 2 year parts and labour (select at checkout)
SX additional features:
Dual element configuration – insulated boiler – superior peristaltic rinse aid dosing pump
TECHNICAL SPECIFICATION:
- Size: 575mm (w) x 605mm (d) x 690mm (h)
- Pint Capacity: 30
- Cycle Time (mins): 2
- Useable Wash Height: 320mm
- Power Supply: 20A
- Basket size: 50 x 50cm
For both gas and electrical appliances, ensure safe and proper installation by a qualified professional. Failure to comply with current installation legislation for gas (by a Gas Safe registered engineer) or electrical appliances (by a qualified electrician) will result in invalidation of warranty. Please refer to the spec sheet for full supply requirements and technical specifications to ensure a smooth installation process.
PURCHASING GUIDE: (this is a guide only; to discuss your individual requirements please call us on 01379 641223)
Water softener: All ware washing machines require a softener if the water supply exceeds 100ppm. Having an external or internal softener fitted will greatly improve washing results, lower running costs, and increase the lifespan of your machine. Please note that internal softeners are only suitable for cold water. When connecting your machine to a hot water supply, make sure you specify a hot water softener.
Electricity supply: The electricity supply you need depends on the machine you are buying. Carefully check the amperage rating of the machine to ensure you have an adequate supply.
Drain pump: A drain pump is required when the waste outlet is higher than the drain outlet of the machine.
Break tank: Type A break tanks are required for commercial dishwashers connected to the mains water supply.
Water pressure & flow rate: To ensure optimal performance, your machine needs a water pressure of 2-4 bar (28-56psi). Anything less or more than this could negatively impact wash performance. If you have low water pressure, consider purchasing an internal or external rinse booster pump. The minimum flow rate is 10 litres per minute (approximately 2.6 gallons per minute).
