Maidaid C452 Undercounter Glasswasher with Gravity Drain – 450mm Basket
Maidaid C452 Undercounter Glasswasher with Gravity Drain – 450mm Basket is part of the Maidaid C Range of Undercounter Glasswashers – a fully electronic machine range offering outstanding value for money.
PRODUCT FEATURES:
- 2 year warranty
- Four button bright LED display with soft touch controls
- Twin traffic lights giving instant status updates & operational self-diagnostics
- Alarms menu with hi-level information retrieval
- Quick release parallel wash & rinse arm design
- Three standard cycle time options with further options available
- Cycle times can be tailored to site requirements
- Automatic self-cleaning at end of service
- Selectable energy saving mode
- Selectable thermostop ensures optimum rinse temperatures
- Patented dual flow wash pump –reducing power consumption whilst retaining wash efficiency
- Moulded wash tank for easy cleaning
- Moulded rack guide giving partial double skin
- Accurate detergent and rinse aid dosing pumps as standard
- Maidaid Halcyon® is able to provide a site survey & installation service – please contact us to discuss. Charges will apply
SPECIFICATIONS:
- Feet height mm 5-15
- Rack size mm 450 x 450
- Maximum useable height mm 280
- Door opening mm 305
- Theoretical productivity Racks/h 40
- Effective productivity Racks/h 30*
- Wash tank element kW 1.4
- Boiler element kW 2.6
- Wash pump kW 0.18
- Tank capacity L 15
- Noise emission dB ≤ 55
- Number of standard cycles 3
- Standard cycles times Sec 90/120/150 – adjustable
- Special cycle Plate
- Self-cleaning cycle Partial self clean
- Water consumption per cycle L 2.0
- Wash temperature °C 60 – adjustable
- Rinse temperature °C 65 – adjustable
- Packaging Specs
- Gross weight Kg 49
- Cubic volume m³ 0.37
- Power Supply: Installed power AMP kW 230V – 50Hz – 1N 13* 2.8
- Supplied with 13A moulded plug and lead
EXTERNAL DIMENSIONS:
Width: 525mm
Depth: 560mm
Height: 705 + feet mm

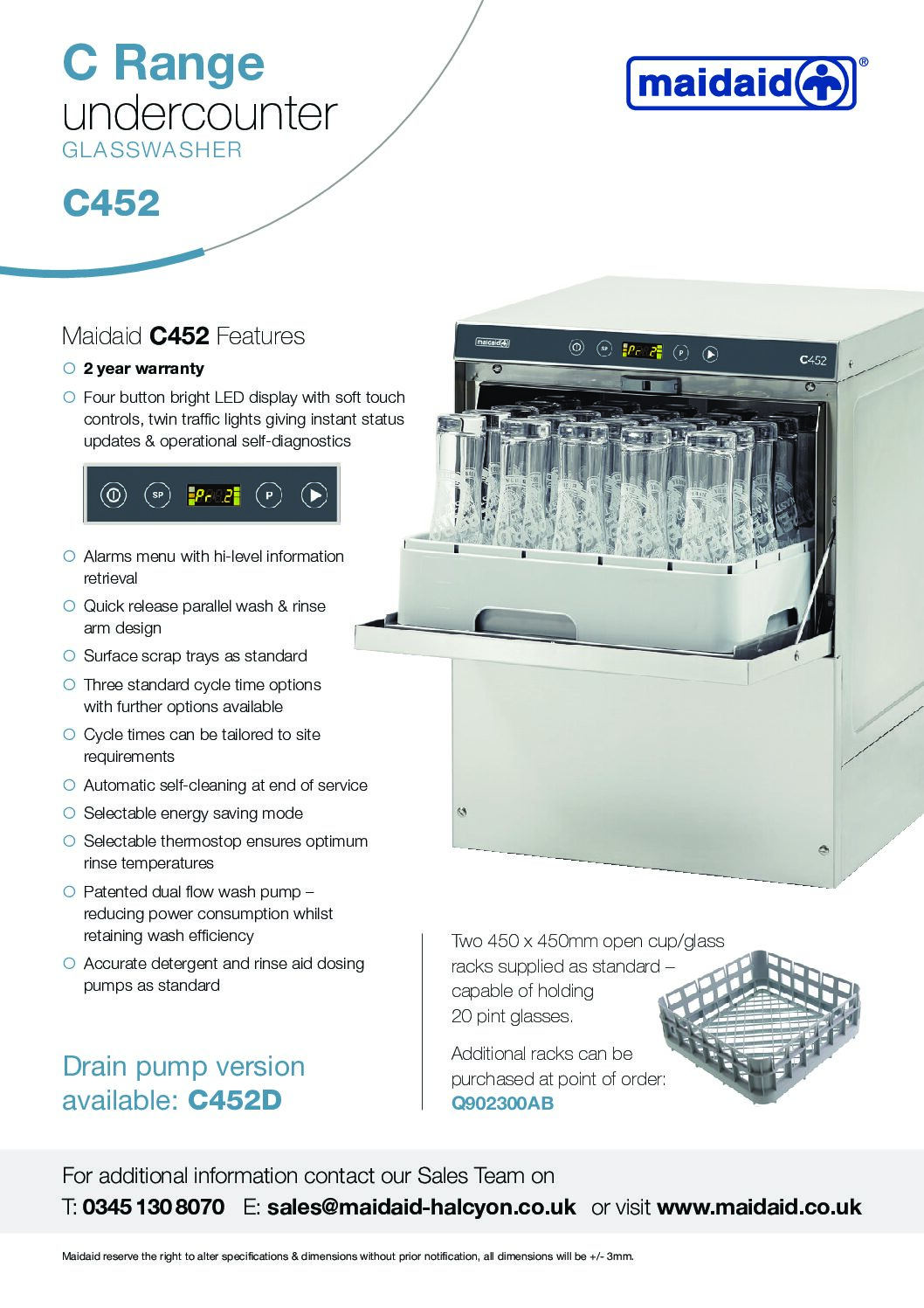

Electrical appliances MUST be installed by a qualified electrician. Incorrect compliance to current installation legislation will lead to invalidation of warranty. Please refer to spec sheet for full electrical requirements/technical specifications
*Water treatment: To achieve good warewashing results water treatment is essential. It will help prevent calcium scaling of internal components and reduce detergent consumption. If water hardness exceeds 7° Clark (100 ppm), a water softener is recommended on all dish and glass washers, unless already built into the machine.
