Description

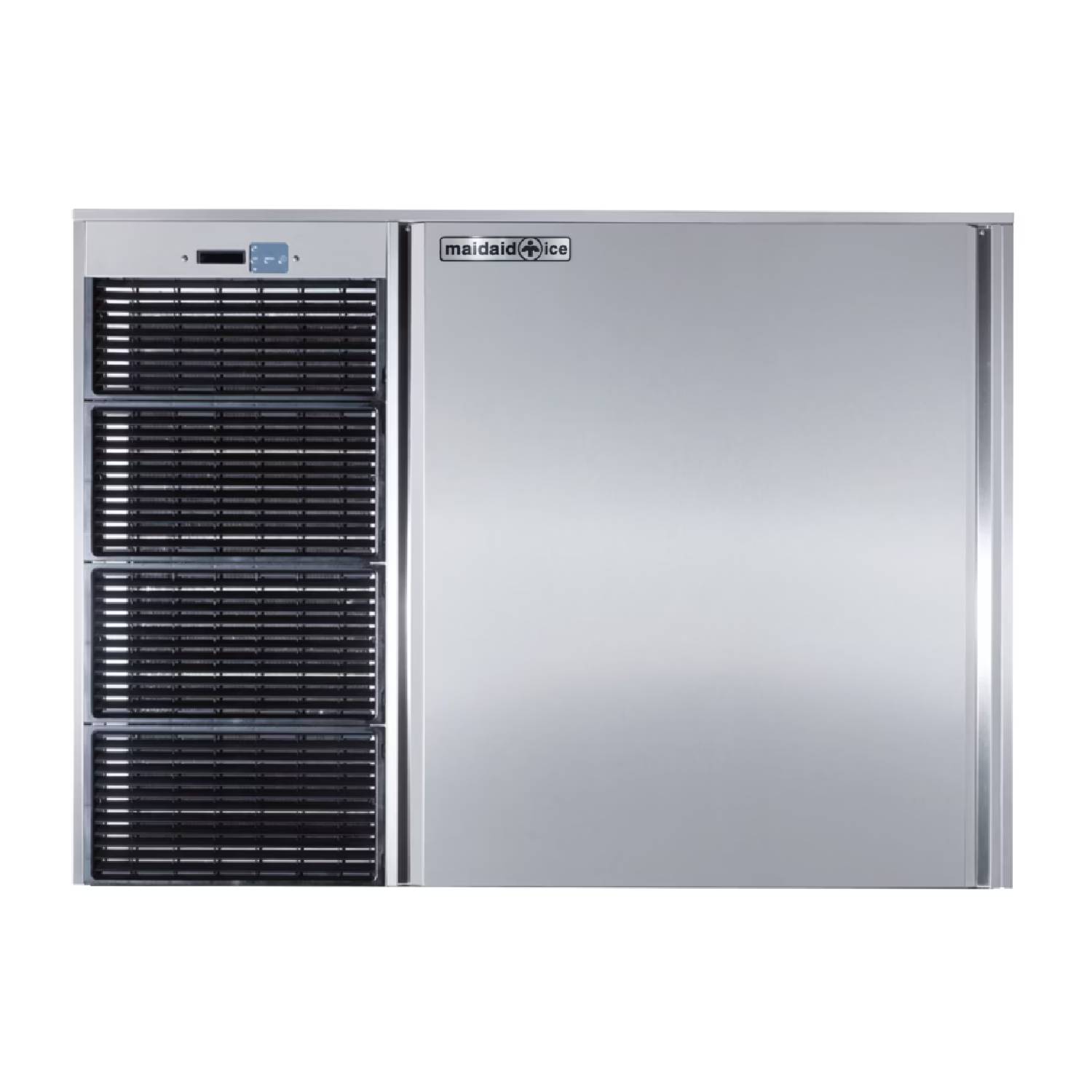

Maidaid CUBE 350 Modular Cube Ice Machine
Maidaid CUBE 350 Modular Cube Ice Machine is part of a new range of ice machines from market leader Maidaid that produce different shapes of ice, such as cubes, pebbles, half dice, modular cubes, and granular. Some of these machines have an incorporated storage bin, while others require the bin to be purchased separately.
This model requires a separate storage bin: BIN 400 (350kg)
PRODUCT FEATURES:
- 2 year warranty
- R452A refrigerant
- Anti-scale patented spray system with flexible jets which avoids deposits with small vibrations
- High resistant external frame as AISI 304 stainless steel which aids service, installation and maintenance
- Highly efficient evaporator
- smart water distributor that improves drop off efficiency
- Smart diagnostics board with self diagnostics
- Capable of operating in ambient temperature of 10 to 43 degrees
- Supply water temperature between 5 and 38 degrees
SPECIFICATION:
- Width: 1321mm x Depth: 638mm x Height: 993mm
- Production in kg over 24 hours: 345kg
- Storage capacity: N/A
- Cooling System: Air
- Ice Type: Cube
- Cube Size: 22g
- Refrigerant: R452A
- Power Voltage/phase/Hz: 230/1/50
- Power watts/Amps: 2700W (25A)
- Water consumption L/Kg: 24.4
- Water supply pressure: 1-6 Bar
- Ambient Temperature: 10C/43C
- Water Supply Temperature: 5C/38c
- Weight nett/gross Kg: 165kg
AVAILABLE IN THIS RANGE:
CUBE 350: 345kgs/24hrs
Significant problems relating to ice machine breakdowns can be directly related to water quality issues that could have been avoided by the installation of a water filter. A water filter will maintain the quality of ice produced and also maximise the life of the machine. Please ask us for advice on water filters.
