Description

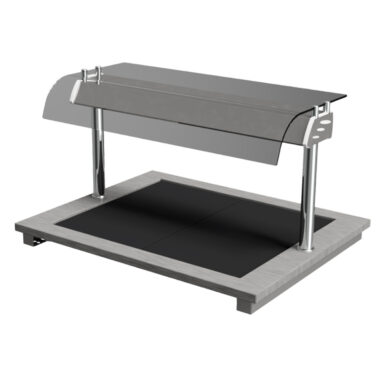

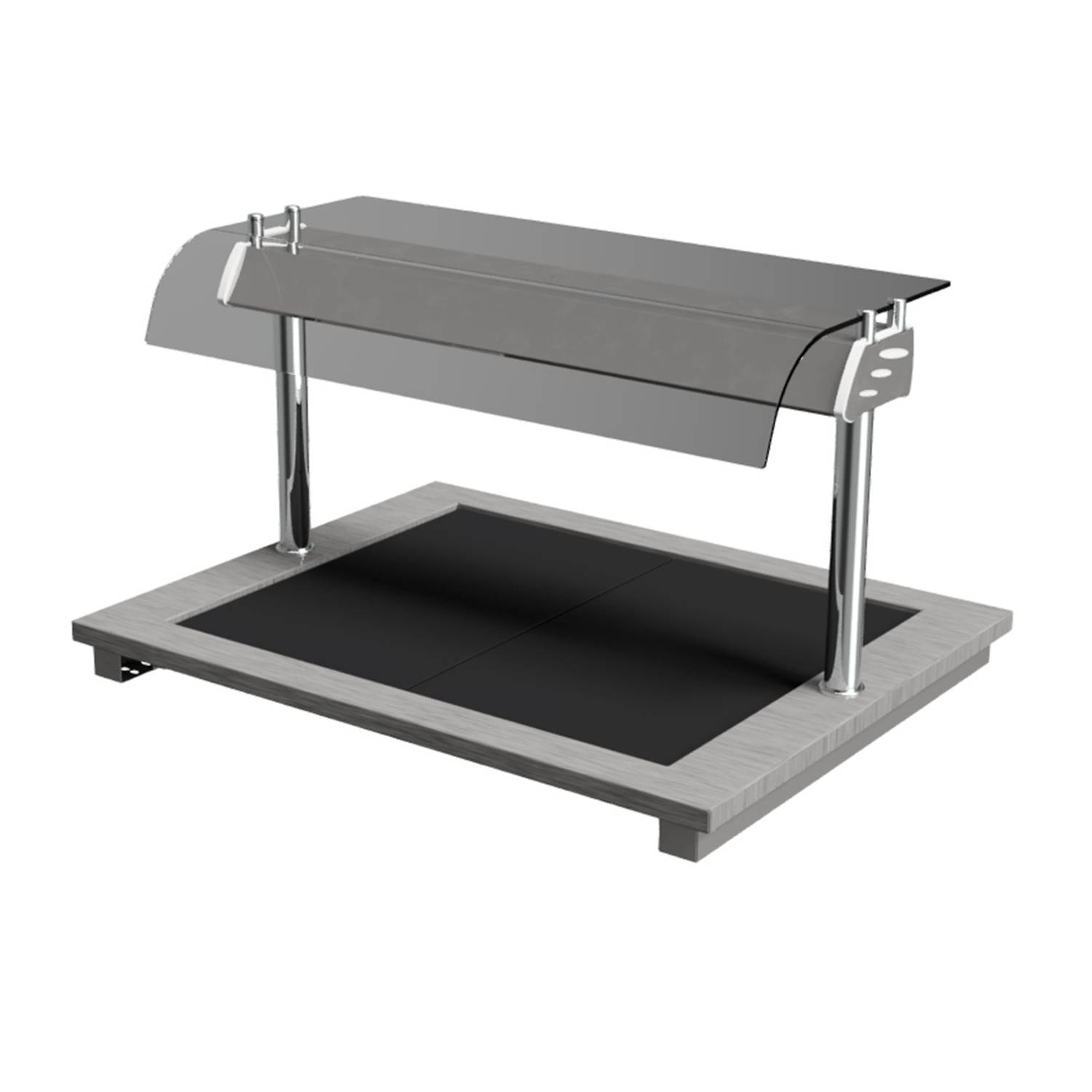

MOFFAT D2/3/4/5HT Drop-In Hot Top/Food Warmers
MOFFAT D2/3/4/5HT Drop-In Hot Top/Food Warmers are hot displays with individual Neo-Ceram glass, GN 1/1 size, thermo panels collectively governed by an energy-regulating control. Designed to maintain precooked food at serving temperature, these unit are not induction type, eliminating the need for dedicated food pans. They can be used with any suitable heatproof food container, except for cast iron. Chafing dishes are not required. The surface temperature of the panels is adjustable up to a maximum of 100°C.
PRODUCT FEATURES:
- Simply drop into place and plug into a 13amp power outlet
- All controls are fitted in the gantry hood for easy install, commissioning and operation
- Alternative panel mounted remote control Box on models with no overhead gantry
- Gantry ends light up indicating display is on
- Available in Curved or Square glass profiles
- 24/7 operation
- Self-contained unit. Electrics are integral no awkward fitting under counter control boxes.
- 13amp plug and go
- Ready to Insert into any new or existing ambient counter structure
- Guaranteed evenly distributed heat with no hot spots
- Even flat surface with no distortion or discolouring
OPERATING MODES:
- Hot Display with individual, Neo – Ceram glass
- GN 1/1 size
- Thermo panels collectively governed by an energy regulating control/
- The overhead gantry has large electric heat lamps with quartz covers that let UV light through, and each bulb contains halogen
ELECTRICAL SPECIFICATIONS:
- Electrical Supply – 13amp
- Units designed complete with a 13amp plug and cable ready to use, power rating up to 2.9kw max

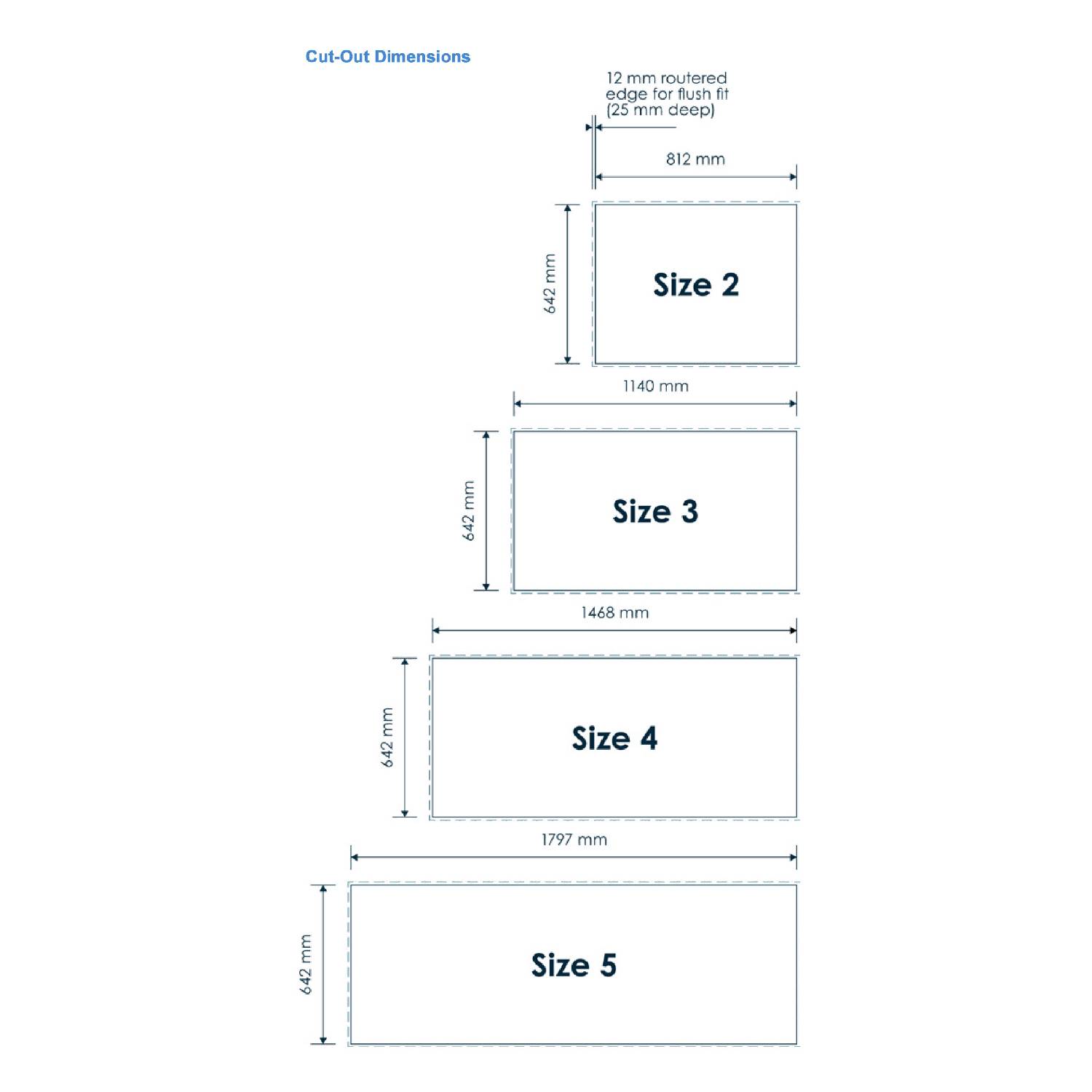

MODEL DIMENSIONS:
D2HT: 830mm (l) x 660mm (w) – 0.58kW
D3HT: 1158mm (l) X 660mm (w) – 0.98kW
D4HT: 1486mm (l) x 660mm (w) – 1.38kW
D5HT: 1814mm (l) x 660mm (w) – 1.78kW
OPTIONAL EXTRAS – Sold separately. Please call us to discuss your requirements.
- Double sided Island Glass Curved or Shear line type
- Heavy Duty spiked Stainless Steel Carving pad (Code: VCCP)
Electrical appliances MUST be installed by a qualified electrician. Incorrect compliance to current installation legislation will lead to invalidation of warranty. Please refer to spec sheet for full electrical requirements/technical specifications
