Description

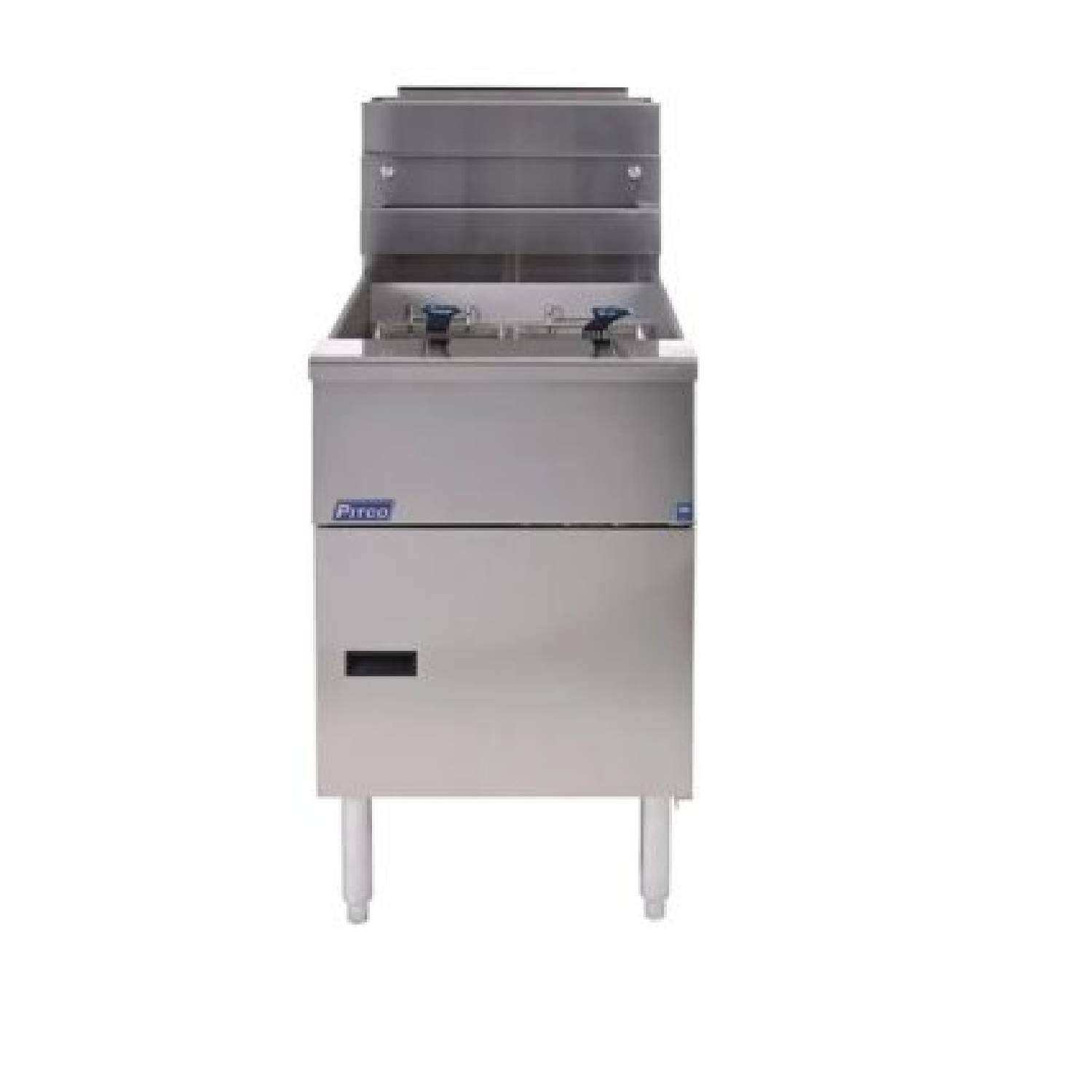

PITCO SG18S Free Standing Single Tank Gas Fryer
PITCO SG18S Free Standing Single Tank Gas Fryer is part of the Solstice Series – the workhorse series of fryers, capable of cooking over 40KG frozen product per hour. Providing fast recovery times and less oil absorption, the solstice series is used and trusted by many high street chains.
This Solstice gas fryer comes standard with a millivolt thermostat with a thermo-safety pilot, high temperature safety limit switch. The unique Solstice burner and baffle design increases cooking production, lowers flue temperature and improves working environment.
Available in Natural or LPG Gas, please select at checkout.
STANDARD FEATURES:
- 40kW. Oil Capacity: 41Ltr. Chip Output: up to 54kg/hr
- Dimensions 1172(H) x 499(W) x 876(D)mm (working height 865mm)
- Material – Stainless Steel
- Warranty – 1 Year Parts Only
- Weight – 103kg
- Colour – Silver
- Large high production frying area

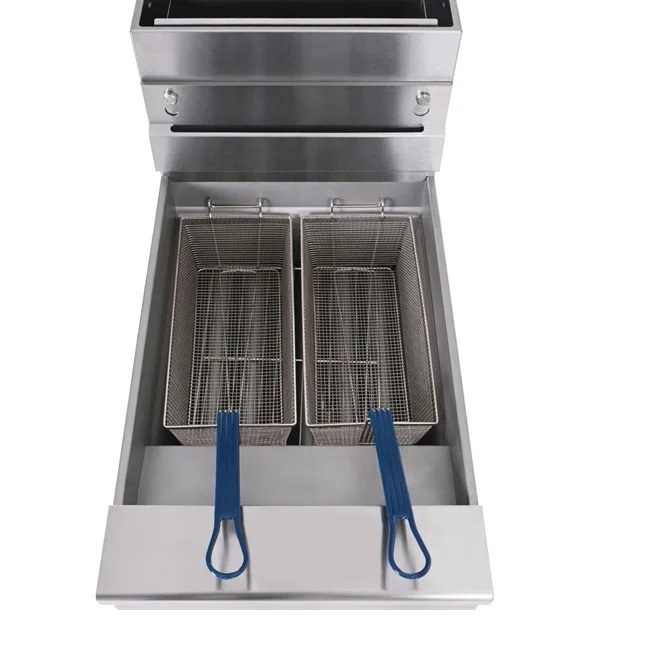

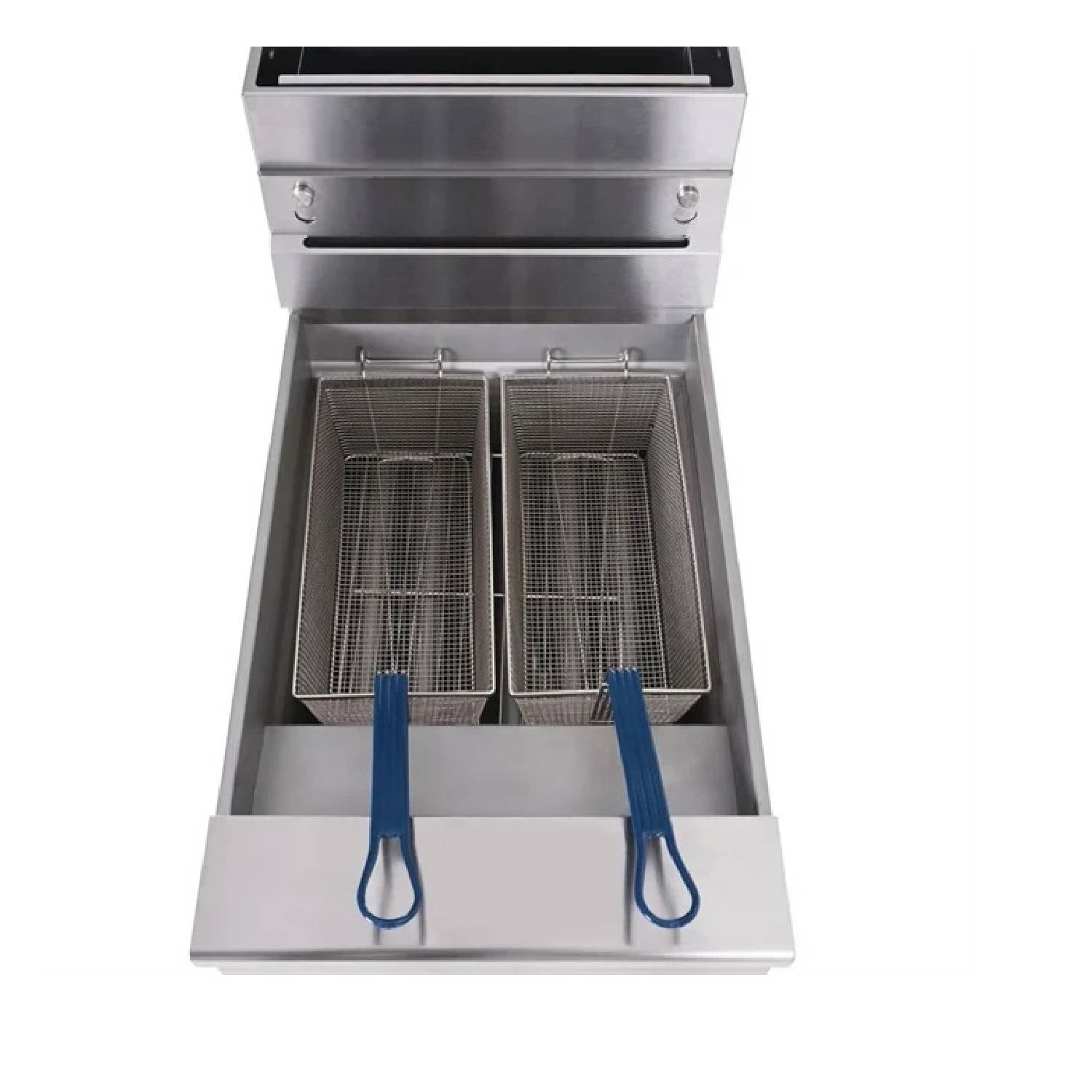

Choice of basket options
Two nickel-plated, oblong, wire mesh baskets
One nickel-plated, square, wire mesh basket
CONTROLS:
- Millivolt thermostat maintains selected temperature automatically between 200°F (93°C) and 400°F (190°C-CE).
- Integrated gas control valve acts as a manual and pilot valve, automatic pilot valve, gas filter, pressure regulator, and
automatic main valve. - Gas control valve prevents gas flow to the main burner until pilot is established and shuts off all gas flow automatically if
the pilot flame goes out. - Gas control valve prevents gas flow to the main burner until pilot is established and shuts off all gas flow automatically if
the pilot flame goes out. - Temperature limit switch safely shuts off all gas flow if the fryer temperature exceeds the upper limit.
- New Solstice burner/baffle design.
-Increases cooking production.
-Lowers flue temperature.
-Improves working environment.
-Generates more production per BTU.
OPERATIONS:
- Two front 1 1/4” (3.2 cm) full port drains for quick draining.
- 9” (22.9 cm) clearance allows for ease of cleaning.
EXTERNAL DIMENSIONS:
Width: 499mm
Depth: 876mm
Height: 1172mm
Working Height: 865mm

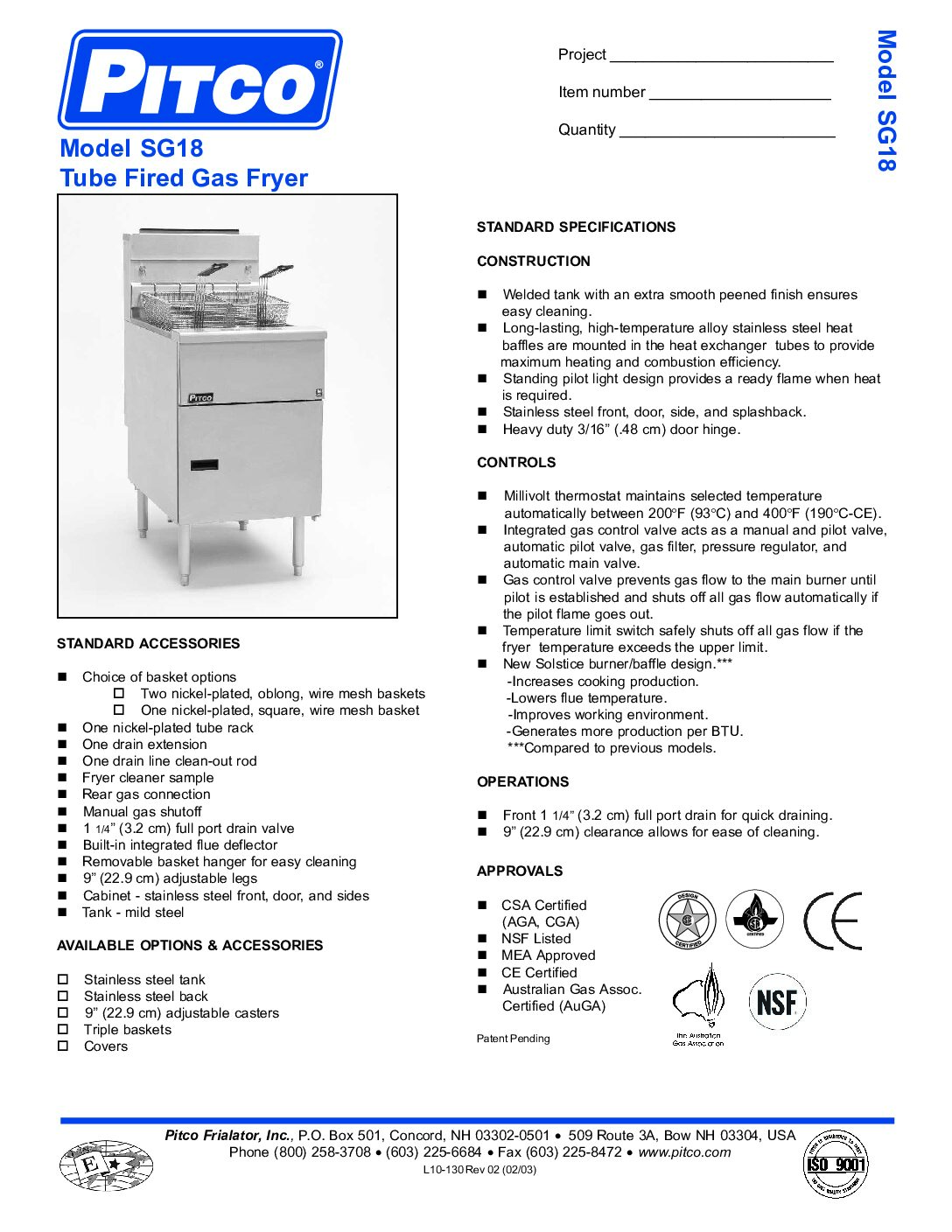

For both gas and electrical appliances, ensure safe and proper installation by a qualified professional. Failure to comply with current installation legislation for gas (by a Gas Safe registered engineer) or electrical appliances (by a qualified electrician) will result in invalidation of warranty. Please refer to the spec sheet for full supply requirements and technical specifications to ensure a smooth installation process.
