Description

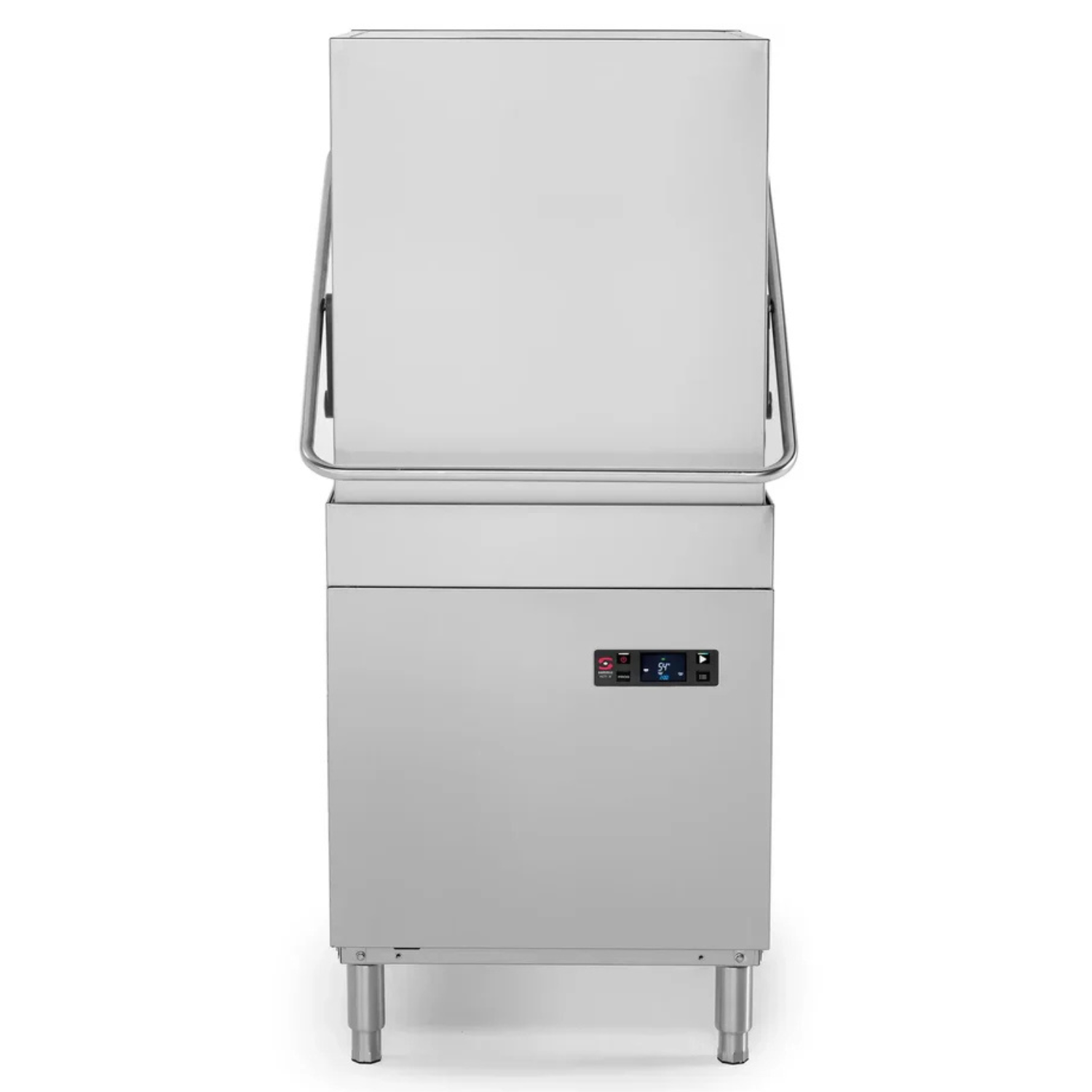

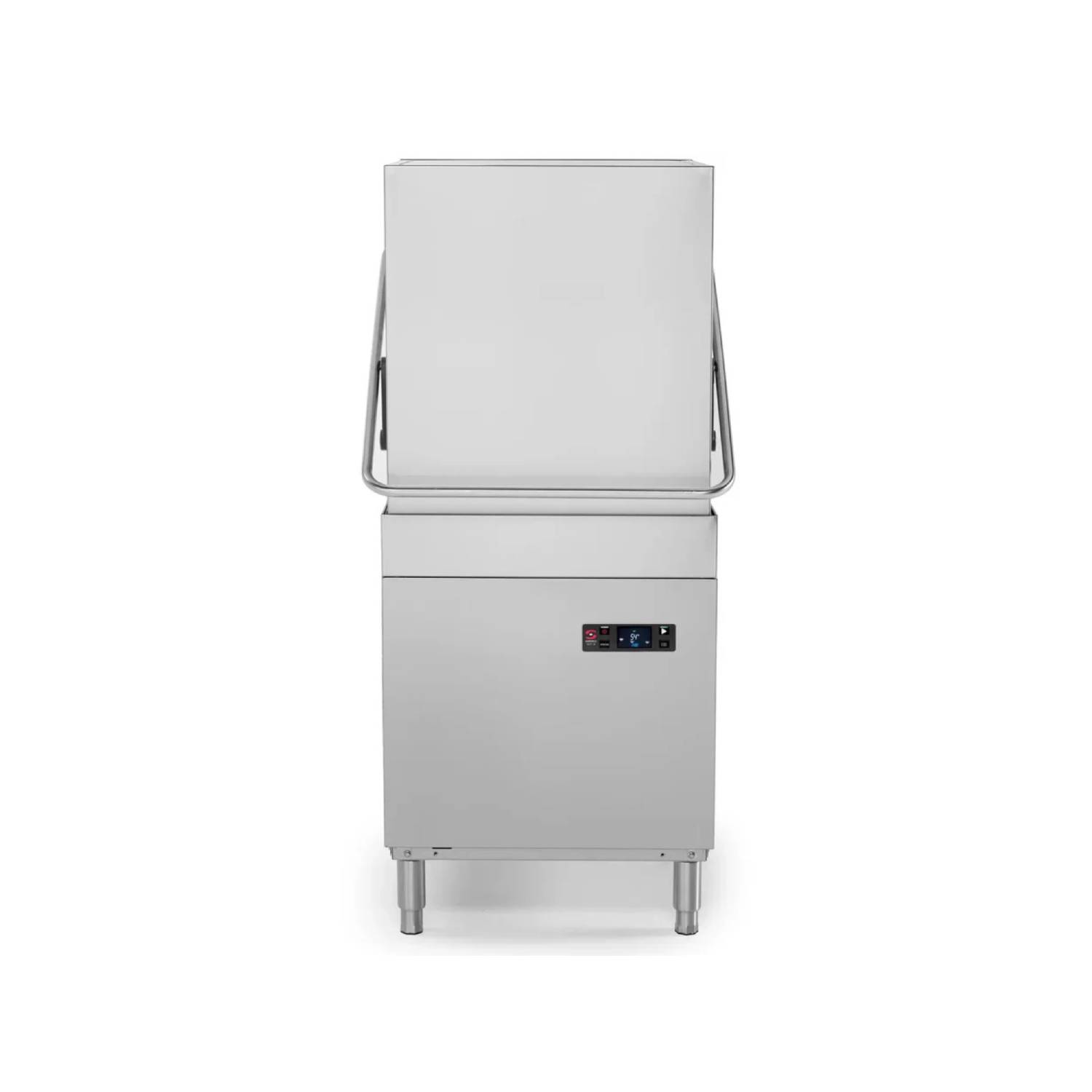

SAMMIC Active AX-100B Pass Through Dishwasher, 500mm basket (Drain Pump)
SAMMIC Active AX-100B Pass Through Dishwasher, 500mm basket (Drain Pump) is part of the NEW ACTIVE range of hood type dishwashers from Sammic developed with the aim of making the latest washing technologies available to professionals, without the hassle.
All this, with all the advantages of the new Sammic warewashing family: deep drawn tanks, Hydroblade arms, 3 stage filters, ergonomics and resource efficiency ensures high performance, without complications.
PRODUCT FEATURES:
- AX-100B with Drain Pump
- Simple & user friendly control
- Dedicated cycles: selection of the ideal wash programme using icons.
- Duration of the cycle is adapted according to the type of item to be washed.
- Electronic control panel with IP65 humidity protection
- Sani-Control: guaranteed disinfection.
- Exclusive Hydroblade™ washing arms: maximum effectiveness.
- 3-stage filtering system.
- GUARANTEED DISINFECTION in compliance with standard DIN 10534.
- THERMAL LOCK function: Ensures that rinsing will be carried out at the ideal temperature to disinfect the dishes.
- Product Code: 1303307/1303306
TECHNICAL SPECIFICATION:
- Basket dimensions: 500 mm x 500 mm
- Maximum glass height: 430 mm
- Cycles: 3
- Cycle duration: 120 / 180 / 210 “
- Production baskets/hour: 30 / 24 / 17
- Boiler capacity: 8 l
- Wash tank capacity: 25 l
- Water consumption/cycle: 3 l
Loading
- Pump: 750 W / 1 Hp
- Tank: 2500 W
- Boiler: 6000 W
- Total loading: 6750 W
POWER CONFIGURATION OPTIONS: Please make your selection at checkout.
We recommend reading the spec sheet for full technical specification and electrical requirements.
Option of either 3Phase or Single Phase – Both Phases require to be hardwired*
EXTERNAL DIMENSIONS:
Width: 648mm
Depth: 756mm
Height: 2000mm/1508mm
DEFAULT EQUIPMENT:
- Peristaltic detergent pump.
- Rinse aid pump.
- 1 glasses basket.
- 1 mixed basket (plates).
- 1 cutlery basket.
OPTIONAL EQUIPMENT:
- Overflow drainage pump. Tank water renewal by the principle of density
*INSTALLATION REQUIREMENTS: Must be installed by a qualified electrician. Incorrect compliance to current installation legislation will lead to invalidation of warranty.
Sani-Control guarantee
- GUARANTEED DISINFECTION in compliance with standard DIN 10534.
- THERMAL LOCK function: Ensures that rinsing will be carried out at the ideal temperature to disinfect the dishes.
New recessed bodywork
- Ergonomic design with rounded corners to prevent the accumulation of dirt and facilitate cleaning.
- Compact tank volume (50% water saving compared to the previous range).
- Embedded basket guides

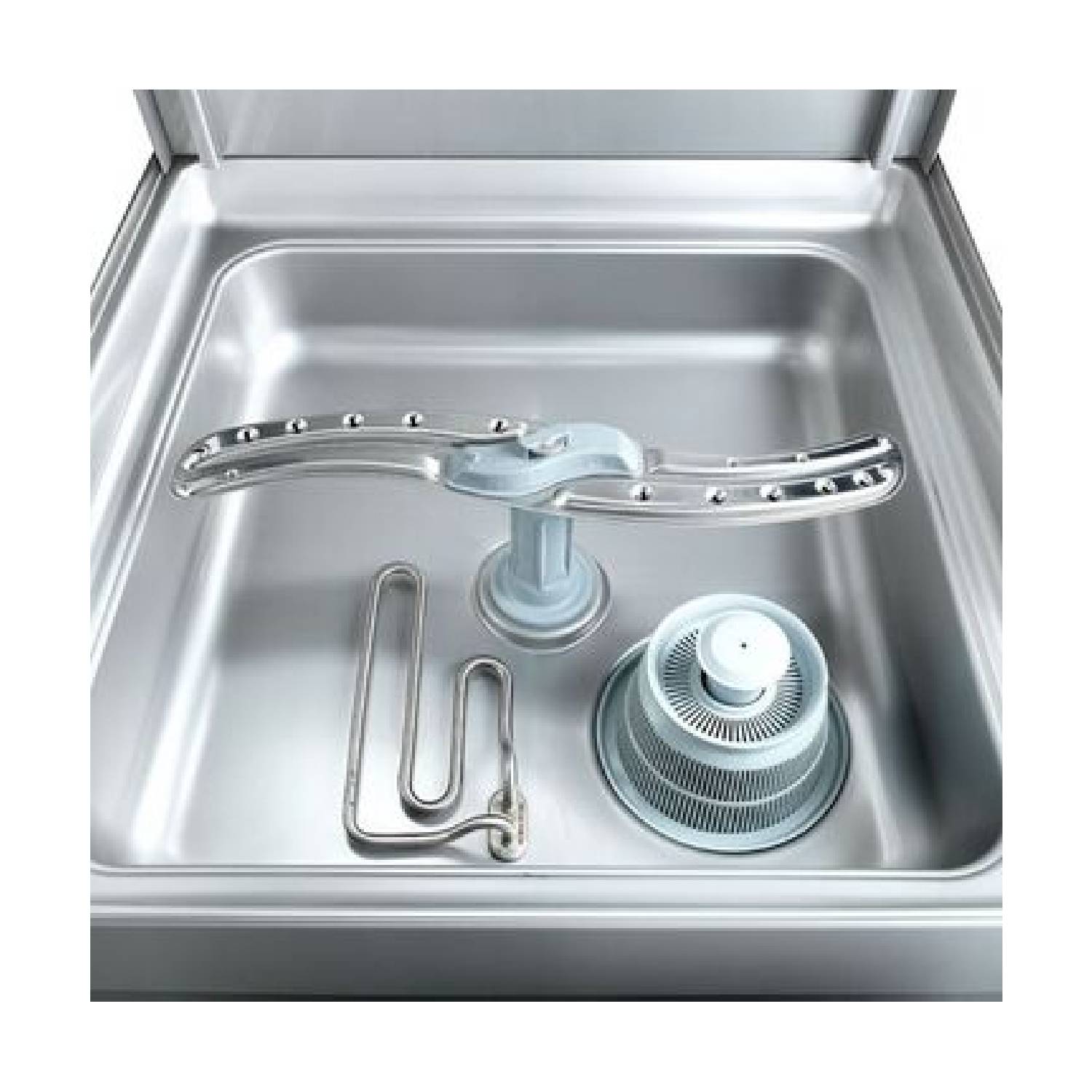

Hydroblade™ washing arms
- Redesigned nozzles for greater washing performance.
- The “monoblock” design delivers durability and resistance to impacts.
- 30% savings in water consumption during rinsing compared to the previous range.
3-stage filter system: surface, tank and extraction
- Keeps the washing water in optimal conditions to maintain constant washing performance.
- The surface filters feature an “easy-on” design and can be quickly removed without having to disconnect the washing arms.
