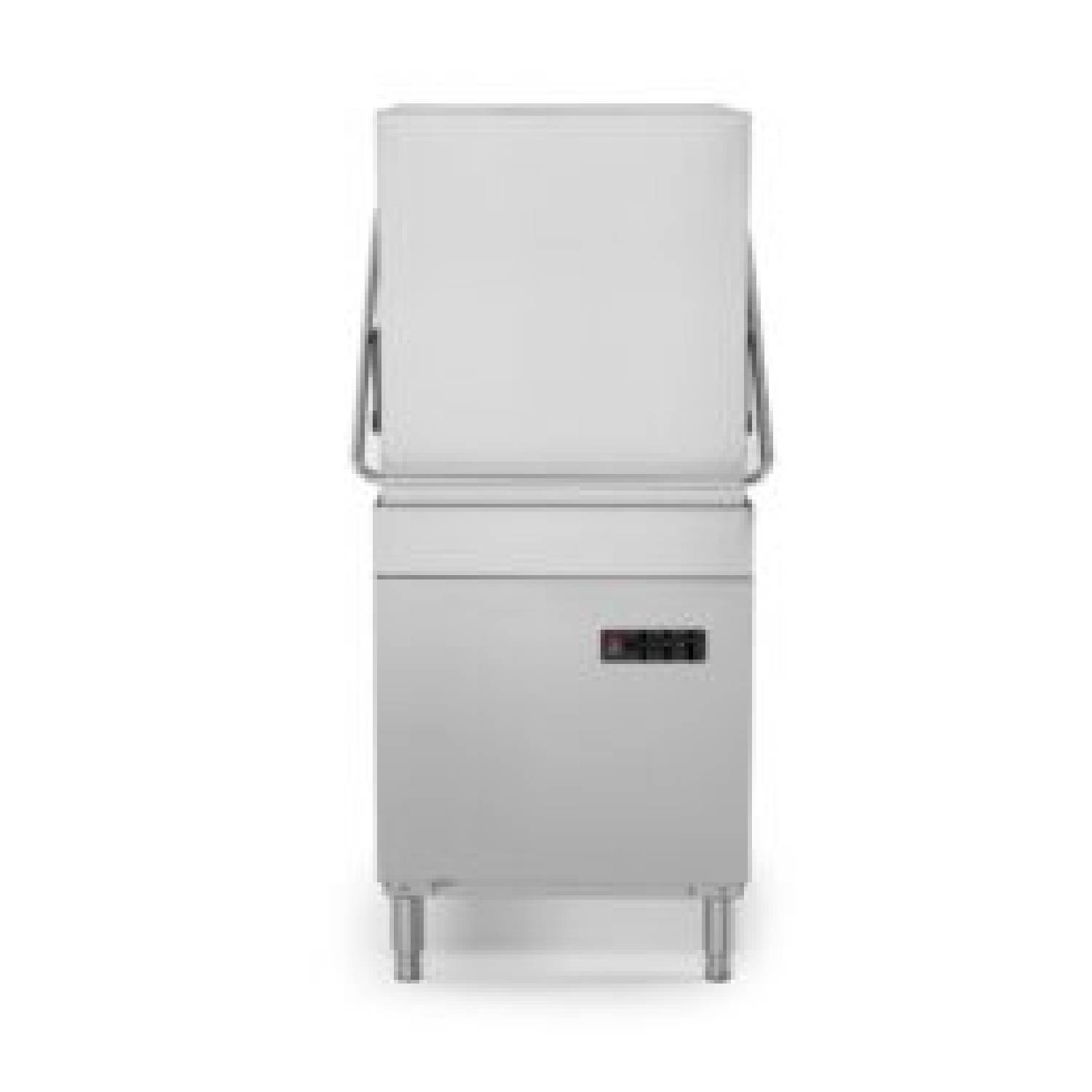

SAMMIC Active AX-100BC Pass Through Dishwasher, 500mm basket (Drain Pump, Break Tank)

£3,396.00 ( £4,075.20 inc. VAT)

Hood type dishwasher, designed for comfortable operation thanks to front or side loading.

Rack size 500x500mm and door clearance 430 mm

AVAILABLE IN THIS RANGE:

AX-100BC – with Drain Pump & Break Tank

AX-100BCD – with Drain Pump, Water Softener & Break Tank

Add to Wishlist
Add to Wishlist
Compare

Description

SAMMIC Active AX-100BC Pass Through Dishwasher, 500mm basket (Drain Pump, Break Tank)

SAMMIC Active AX-100BC Pass Through Dishwasher, 500mm basket (Drain Pump, Break Tank) is part of the NEW ACTIVE range of hood type dishwashers from Sammic developed with the aim of making the latest washing technologies available to professionals, without the hassle.

All this, with all the advantages of the new Sammic warewashing family: deep drawn tanks, Hydroblade arms, 3 stage filters, ergonomics and resource efficiency ensures high performance, without complications.

PRODUCT FEATURES:

  • AX-100BC with Drain Pump & Type A air break (WRAS approval in process 09/2021)
  • Simple & user friendly control
  • Dedicated cycles: selection of the ideal wash programme using icons.
  • Duration of the cycle is adapted according to the type of item to be washed.
  • Electronic control panel with IP65 humidity protection
  • Sani-Control: guaranteed disinfection.
  • Exclusive Hydroblade™ washing arms: maximum effectiveness.
  • 3-stage filtering system.
  • GUARANTEED DISINFECTION in compliance with standard DIN 10534.
  • THERMAL LOCK function: Ensures that rinsing will be carried out at the ideal temperature to disinfect the dishes.
  • Product Code: 1303313/1303314

TECHNICAL SPECIFICATION:

  • Basket dimensions: 500 mm x 500 mm
  • Maximum glass height: 430 mm
  • Cycles: 3
  • Cycle duration: 120 / 180 / 210 “Production baskets/hour: 30 / 24 / 17
    • Boiler capacity: 12 l
    • Wash tank capacity: 25 l
    • Water consumption/cycle: 2.8 l
      Loading
    • Pump: 750 W / 1.0 Hp
    • Tank: 2500 W
    • Boiler: 6000 W
    • Total loading: 6750 WWash temperature: — ºC
      Rinse temperature: 87 ºC
      Net weight: 108 Kg
      Noise level (1m.): — dB(A)



POWER CONFIGURATION OPTIONS: Please make your selection at checkout.

We recommend reading the spec sheet for full technical specification and electrical requirements.

 Option of either 3Phase or Single Phase – Both Phases require to be hardwired*

EXTERNAL DIMENSIONS:

Width: 648mm

Depth: 756mm

Height: 2000mm/1508mm

DEFAULT EQUIPMENT:

  • Peristaltic detergent pump.
  • Drainage pump with level sensor.
  • Proactive tank water renewal
  • Type-A air break (WRAS approval in process 09/21)
  • Rinse aid pump.
  • 1 glasses basket.
  • 1 mixed basket (plates).
  • 1 cutlery basket.

OPTIONAL EQUIPMENT:

  • Automatic resin regeneration water softener with salt detector

*INSTALLATION REQUIREMENTS: Must be installed by a qualified electrician. Incorrect compliance to current installation legislation will lead to invalidation of warranty.




Sani-Control guarantee

  • GUARANTEED DISINFECTION in compliance with standard DIN 10534.
  • THERMAL LOCK function: Ensures that rinsing will be carried out at the ideal temperature to disinfect the dishes.

New recessed bodywork

  • Ergonomic design with rounded corners to prevent the accumulation of dirt and facilitate cleaning.
  • Compact tank volume (50% water saving compared to the previous range).
  • Embedded basket guides

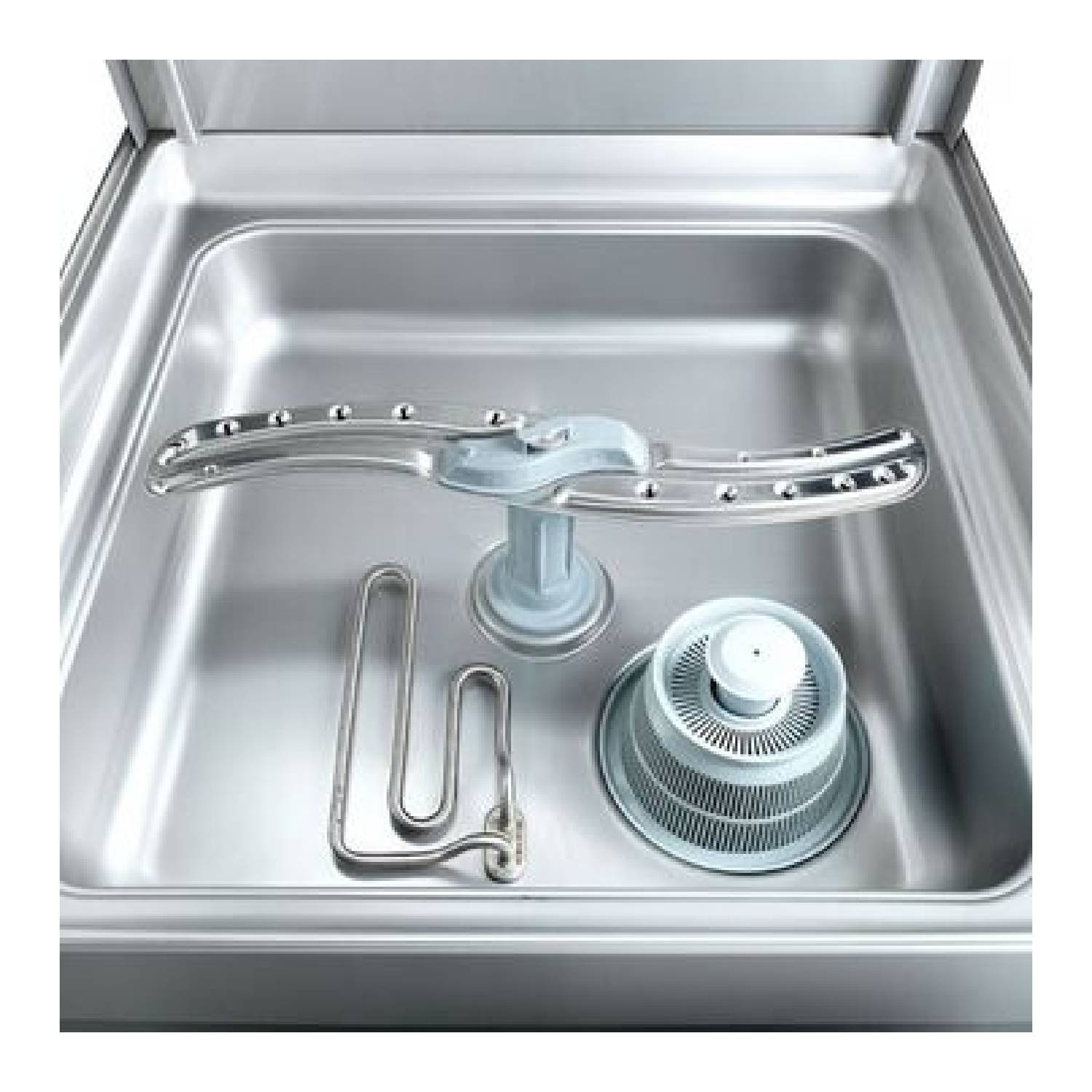

Hydroblade™ washing arms

  • Redesigned nozzles for greater washing performance.
  • The “monoblock” design delivers durability and resistance to impacts.
  • 30% savings in water consumption during rinsing compared to the previous range.

3-stage filter system: surface, tank and extraction

  • Keeps the washing water in optimal conditions to maintain constant washing performance.
  • The surface filters feature an “easy-on” design and can be quickly removed without having to disconnect the washing arms.

Additional information

Weight 113 kg
Dimensions Depth 756 mm , Width 648 mm , Height 2000 mm.
Brand

Sammic

Power Requirement

Available as Single or 3 Phase

Basket Dimensions

500mm x 500mm

Wash Cycles

3

Cycle Duration

120 / 180 / 210 "

Production

30/24/17

Warranty

2 years parts and labour

Model

AX-100BC

Delivery Options

Free next day delivery as standard if ordered before 12, otherwise within 48 hours. Excludes the Scottish Highlands and Islands (please call for a delivery quote), Whilst we always try to ensure our stock levels are accurate we would always advise you check that the item is in stock if your order is urgent.

Break-tank

Yes

Power

3 Phase Electric, Single Phase Electric

Built in Drain Pump

Yes

Chemical Pump

No

Integral Water Softener

No
