SAMMIC Active AX-50 Dishwasher, 500mm Basket (13 amp)

£1718.00 (£2061.60 inc. VAT)

Rack size 500x500mm and door clearance 380 mm

Available models in this range:

AX-50 with Gravity Drain

AX-50B with Drain Pump

Add to Wishlist
Add to Wishlist
Compare

Description

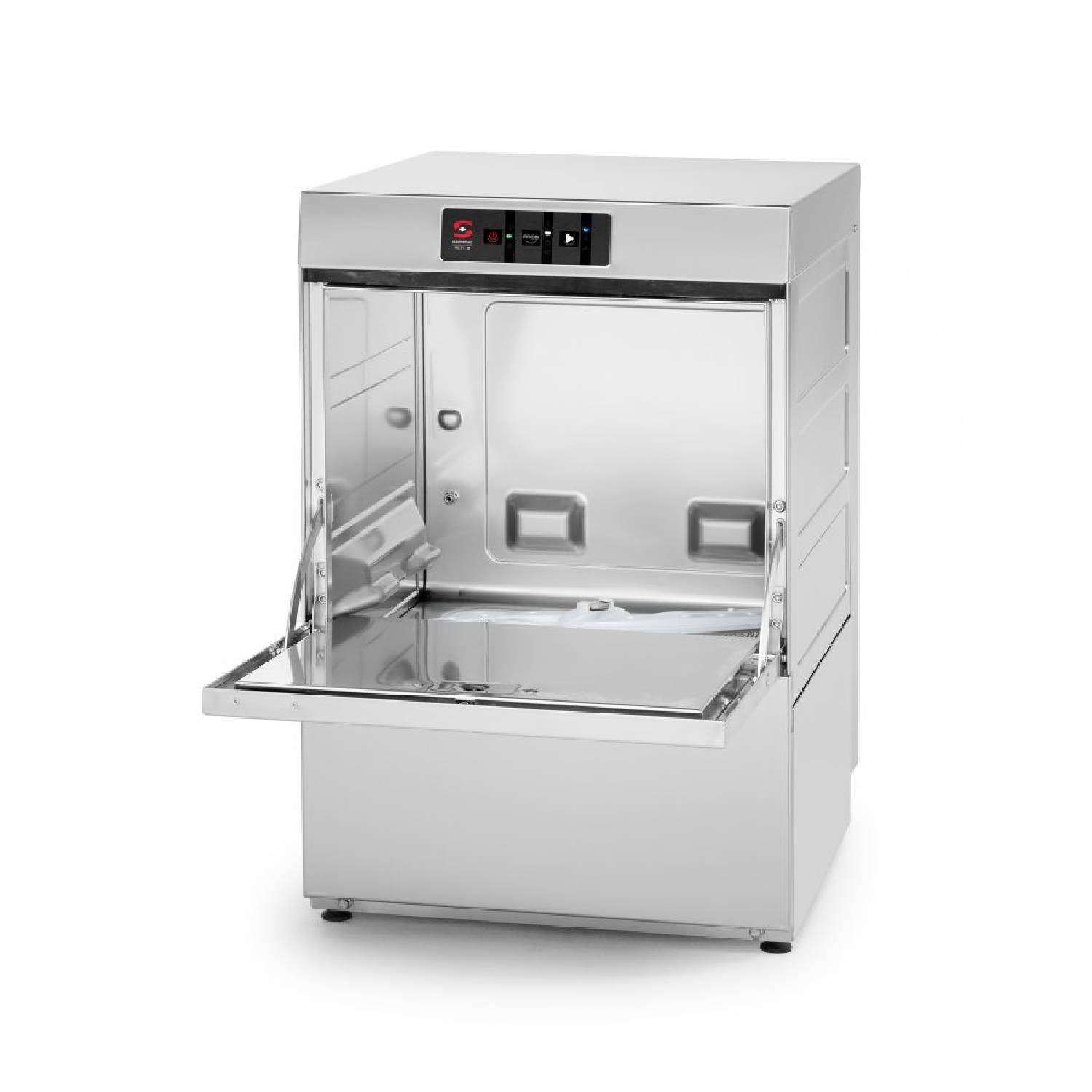

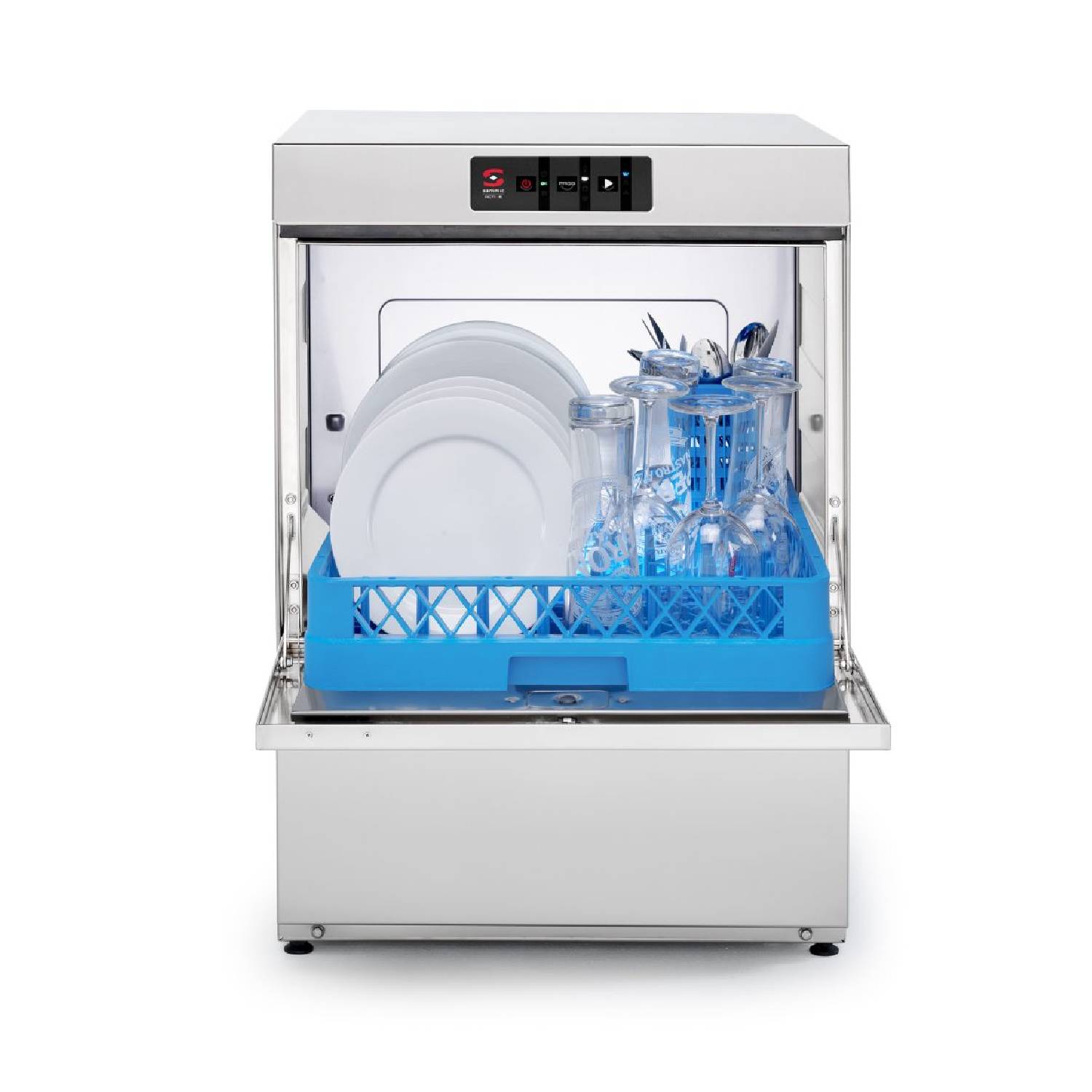

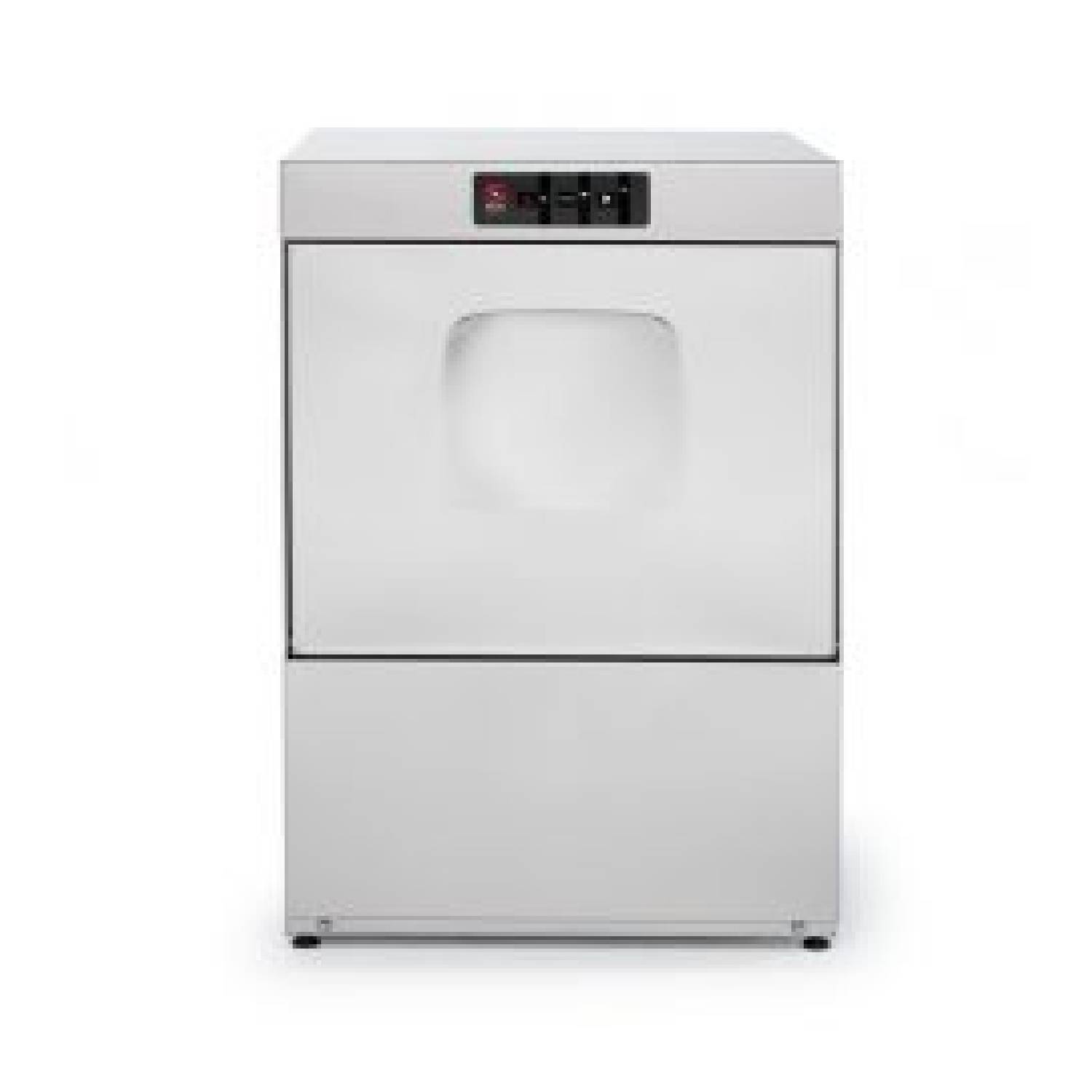

SAMMIC Active AX-50 Dishwasher, 500mm Basket (13 amp)

SAMMIC Active AX-50 Dishwasher, 500mm Basket (13 amp) is part of the NEW range of front loading commercial dishwashers from Sammic. Renowned for manufacturing machines offering the best performance, providing optimal washing results, sturdy and reliable.

PRODUCT FEATURES:

  • Sani-Control: guaranteed disinfection
  • Embedded bodywork and easy-grip door: hygienic and ergonomic
  • Exclusive Hydroblade™ washing arms: maximum effectiveness.
  • 3-stage filtering system.
  • Double-walled body (partial).

TECHNICAL SPECIFICATION:

  • Pump: 500W/0.75HP
  • Max glass height: 380mm
  • Cycle duration: 120″/150″/210″
  • Wash temperature: 50C – 65C
  • Rinse temperature: 75C – 85C
  • Tank: 1800W
  • Boiler: 2500W
  • Total loading: 3000W
  • Wash tank capacity 14L
  • Water consumption/cycle: 2.7 l
  • Double Rack Option
  • Product Code: 1303182/D

Loading

Pump: 500 W / 0.75 Hp
Tank: 1800 W
Boiler: 2500 W
Total loading: 3000 W

Please refer to spec sheet for further technical information.

Includes:

Peristaltic Detergent Pump
1 glasses basket.
1 mixed basket (plates)
1 small basket for cutlery

Optional

Overflow drainage pump.  Tank water renewal by the principle of density

Double-level accessory for washing two baskets at the same time.

EXTERNAL DIMENSIONS:

Width: 580mm

Depth: 635mm

Height: 835mm

ACCESSORIES – SOLD SEPARATELY:

  • Stand
  • High feet Kit (140-190mm)
  • Manual/Automatic water softener
  • 500 x 500mm basket
  • Reverse Osmosis device

Sani-Control guarantee

  • GUARANTEED DISINFECTION in compliance with standard DIN 10534.
  • THERMAL LOCK function: Ensures that rinsing will be carried out at the ideal temperature to disinfect the dishes.

New recessed bodywork

  • Ergonomic design with rounded corners to prevent the accumulation of dirt and facilitate cleaning.
  • Compact tank volume (50% water saving compared to the previous range).
  • Embedded basket guides

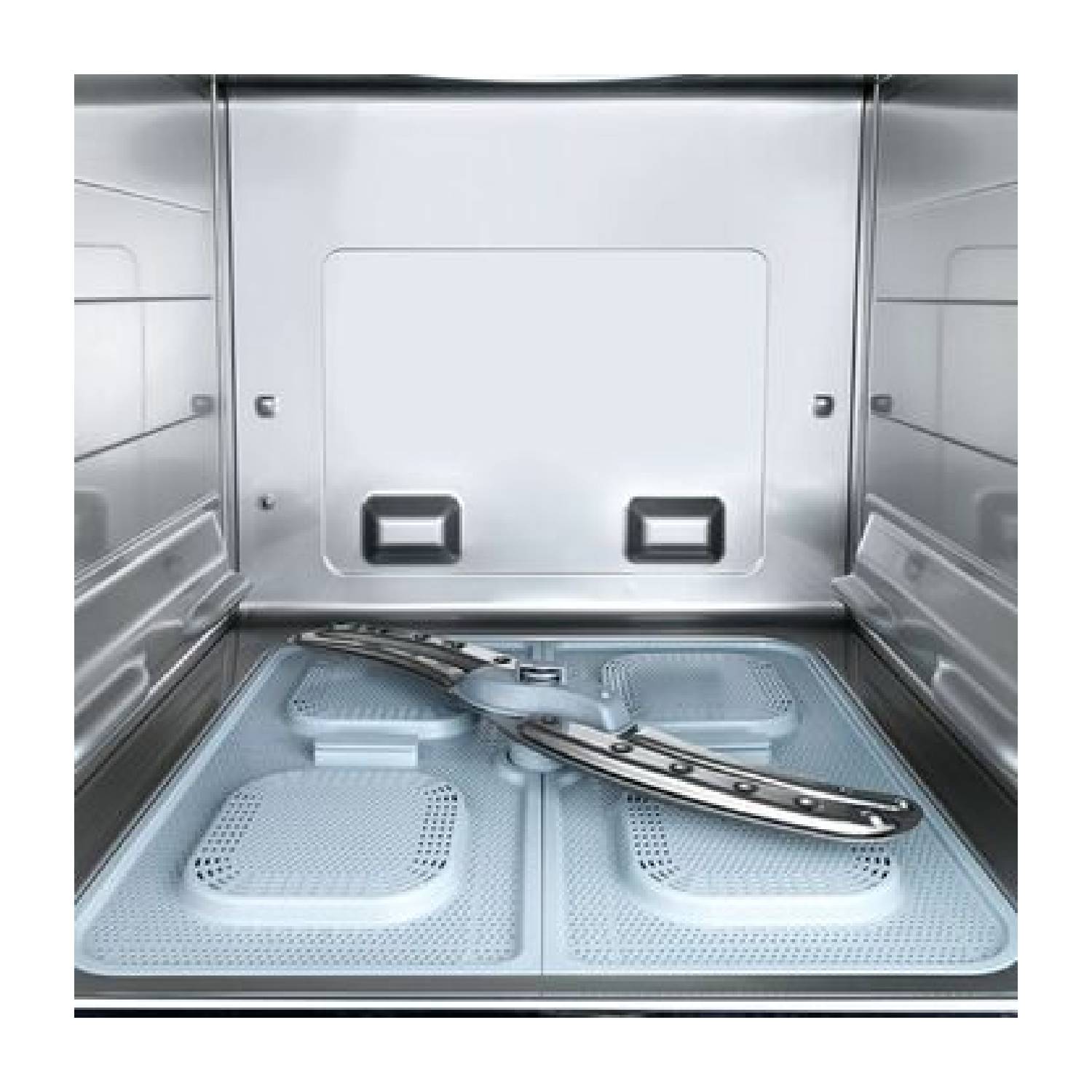

Hydroblade™ washing arms

  • Redesigned nozzles for greater washing performance.
  • The “monoblock” design delivers durability and resistance to impacts.
  • 30% savings in water consumption during rinsing compared to the previous range.

3-stage filter system: surface, tank and extraction

  • Keeps the washing water in optimal conditions to maintain constant washing performance.
  • The surface filters feature an “easy-on” design and can be quickly removed without having to disconnect the washing arms.

“Easy grip” door: new design with integrated door handle

  • The integration of the components provides greater resistance and robustness.
  • Designed to have no corners or areas that are difficult to access: prevents deposits of dirt and facilitates cleaning.
  • Its ergonomic handle provides a perfect grip, even with wet hands.
  • Double-walled door with safety microswitch and high quality seal
  • 38 cm loading capacity: high versatility for washing a wide range of items: dishes, Euronorm trays, GN 1/1 tubs and pizza plates diam 39

Warewashing, made simple

  • Active Xperience: simple and intuitive use
  • Dedicated cycles: selection of the ideal washing programme using icons.
  • Electronic control panel with IP65 humidity protection.

For electrical products we always recommend consulting a certified electrician if you are unsure of installing them and the electrical requirements for them.

Additional information

Weight 55 kg
Dimensions Depth 635 mm , Width 580 mm , Height 835 mm.
Basket Dimensions

500mm x 500mm

Wash Cycles

3

Cycle Duration

120" / 150" / 210"

Production

30 / 24 / 17

Warranty

2 years parts and labour

Model

AX-50

Delivery Options

Free next day delivery as standard if ordered before 12, otherwise within 48 hours. Excludes the Scottish Highlands and Islands (please call for a delivery quote), Whilst we always try to ensure our stock levels are accurate we would always advise you check that the item is in stock if your order is urgent.

Break-tank

No

Power

13 amp standard plug

Built in Drain Pump

No

Chemical Pump

No

Integral Water Softener

No
