Description

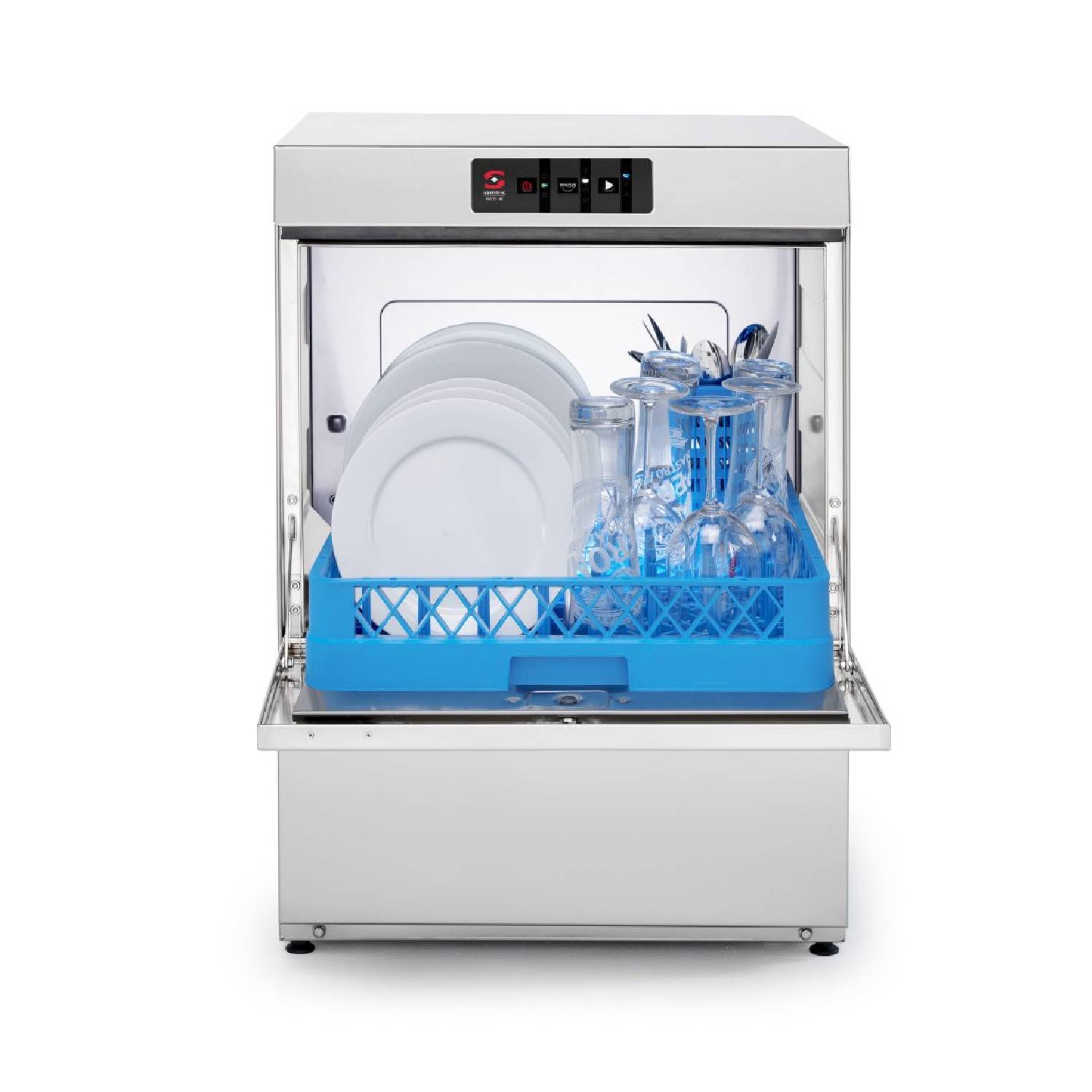

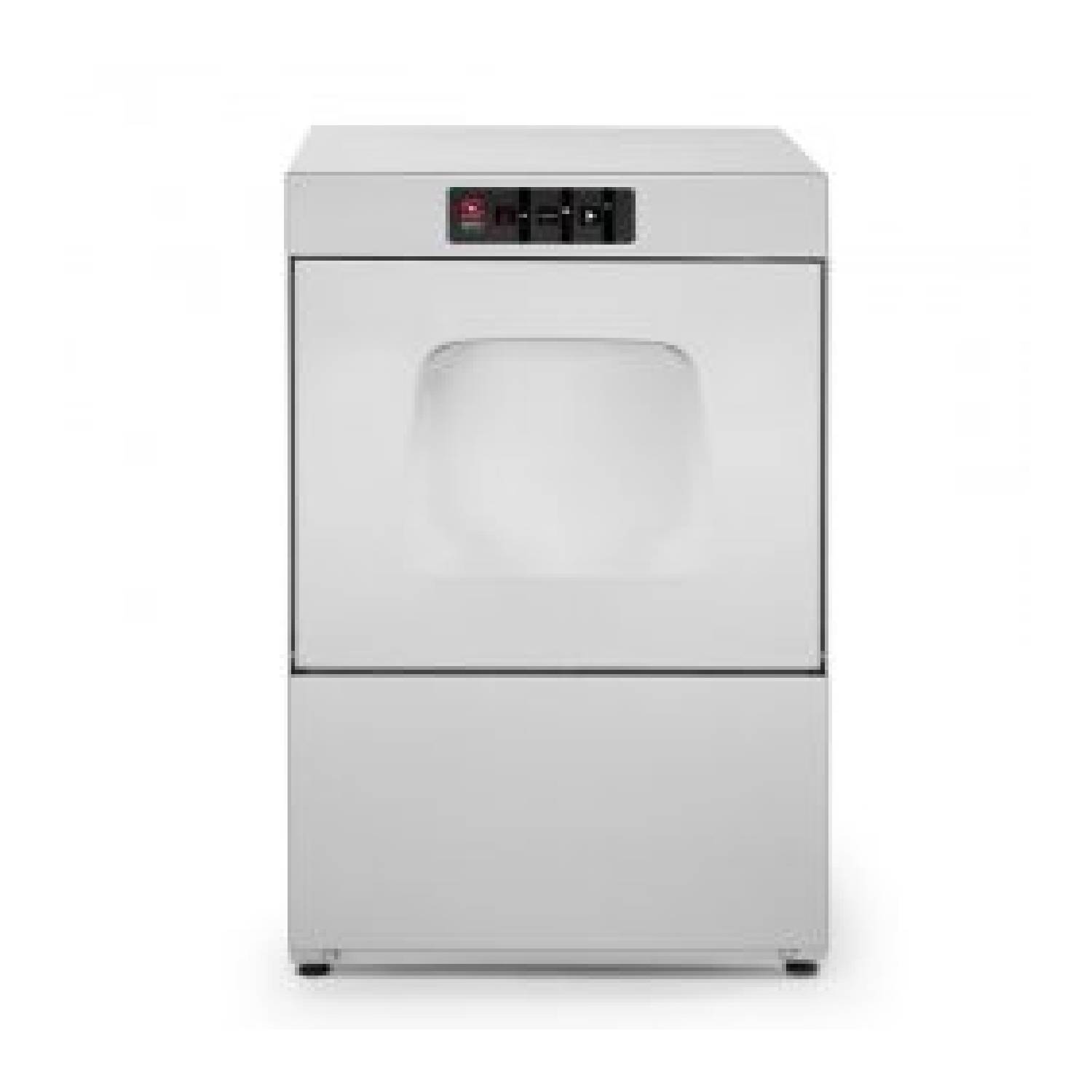

SAMMIC Active AX-50B Dishwasher with a drain pump, 500mm Basket (13 amp)
SAMMIC Active AX-50B Dishwasher with a drain pump, 500mm Basket (13 amp) is part of the NEW range of front loading commercial dishwashers from Sammic. Renowned for manufacturing machines offering the best performance, providing optimal washing results, sturdy and reliable.
PRODUCT FEATURES:
- Sani-Control: guaranteed disinfection
- Embedded bodywork and easy-grip door: hygienic and ergonomic
- Exclusive Hydroblade™ washing arms: maximum effectiveness.
- 3-stage filtering system.
- Double-walled body (partial).
TECHNICAL SPECIFICATION:
- With drain pump option with water tank water renovation system
- Pump: 500W/0.75HP
- Max glass height: 380mm
- Cycle duration: 120″/150″/210″
- Wash temperature: 50C – 65C
- Rinse temperature: 75C – 85C
- Tank: 1800W
- Boiler: 2500W
- Total loading: 3000W
- Wash tank capacity 14L
- Water consumption/cycle: 2.7 l
- Double Rack Option
- Product Code: 1303187/D
Loading
Pump: 500 W / 0.75 Hp
Tank: 1800 W
Boiler: 2500 W
Total loading: 3000 W
Please refer to spec sheet for further technical information.
Includes:
Peristaltic Detergent Pump
1 glasses basket.
1 mixed basket (plates)
1 small basket for cutlery
Optional
Overflow drainage pump. Tank water renewal by the principle of density
Double-level accessory for washing two baskets at the same time.
EXTERNAL DIMENSIONS:
Width: 580mm
Depth: 635mm
Height: 835mm
ACCESSORIES – SOLD SEPARATELY:
- Stand
- High feet Kit (140-190mm)
- Manual/Automatic water softener
- 500 x 500mm basket
- Reverse Osmosis device
Sani-Control guarantee
- GUARANTEED DISINFECTION in compliance with standard DIN 10534.
- THERMAL LOCK function: Ensures that rinsing will be carried out at the ideal temperature to disinfect the dishes.
New recessed bodywork
- Ergonomic design with rounded corners to prevent the accumulation of dirt and facilitate cleaning.
- Compact tank volume (50% water saving compared to the previous range).
- Embedded basket guides

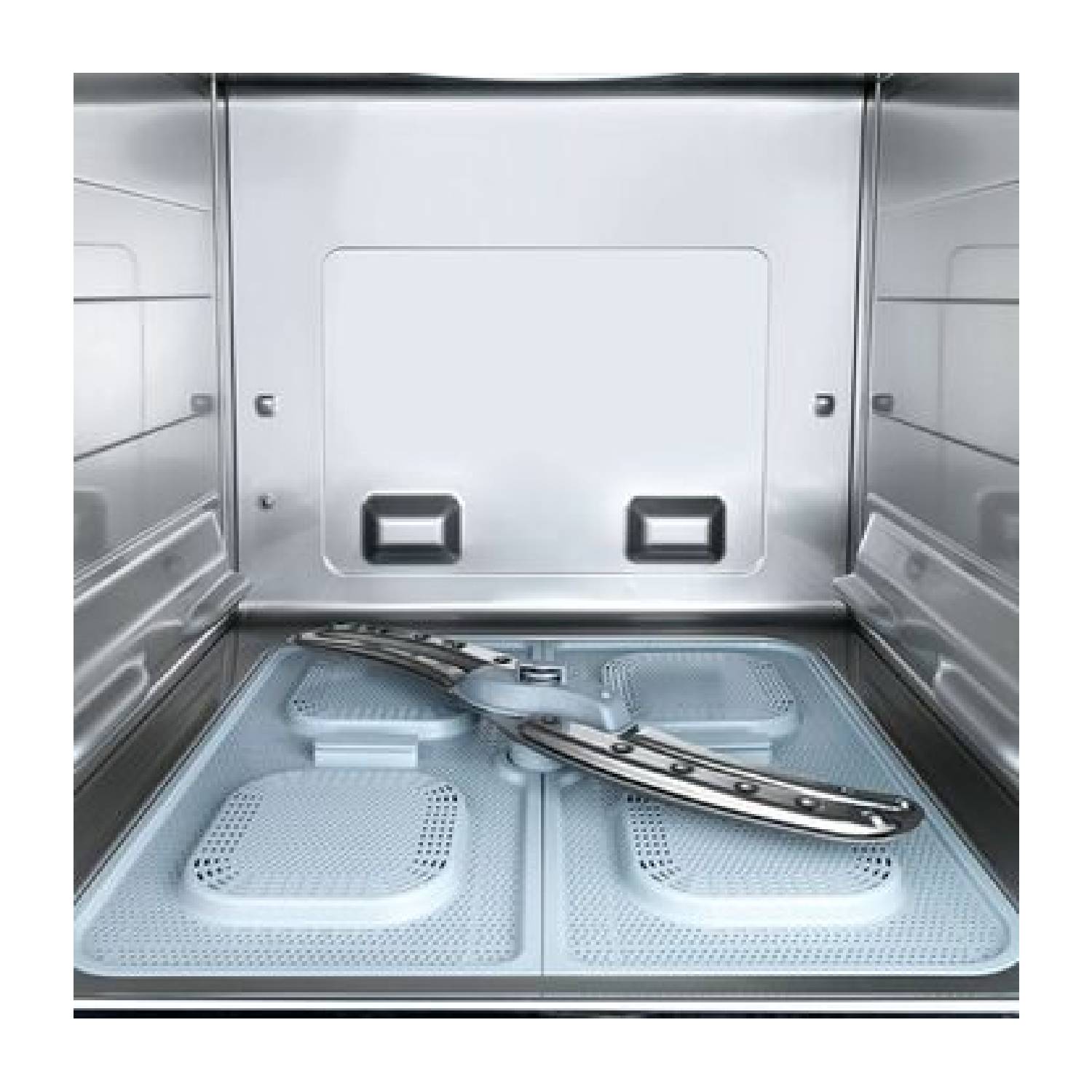

Hydroblade™ washing arms
- Redesigned nozzles for greater washing performance.
- The “monoblock” design delivers durability and resistance to impacts.
- 30% savings in water consumption during rinsing compared to the previous range.
3-stage filter system: surface, tank and extraction
- Keeps the washing water in optimal conditions to maintain constant washing performance.
- The surface filters feature an “easy-on” design and can be quickly removed without having to disconnect the washing arms.

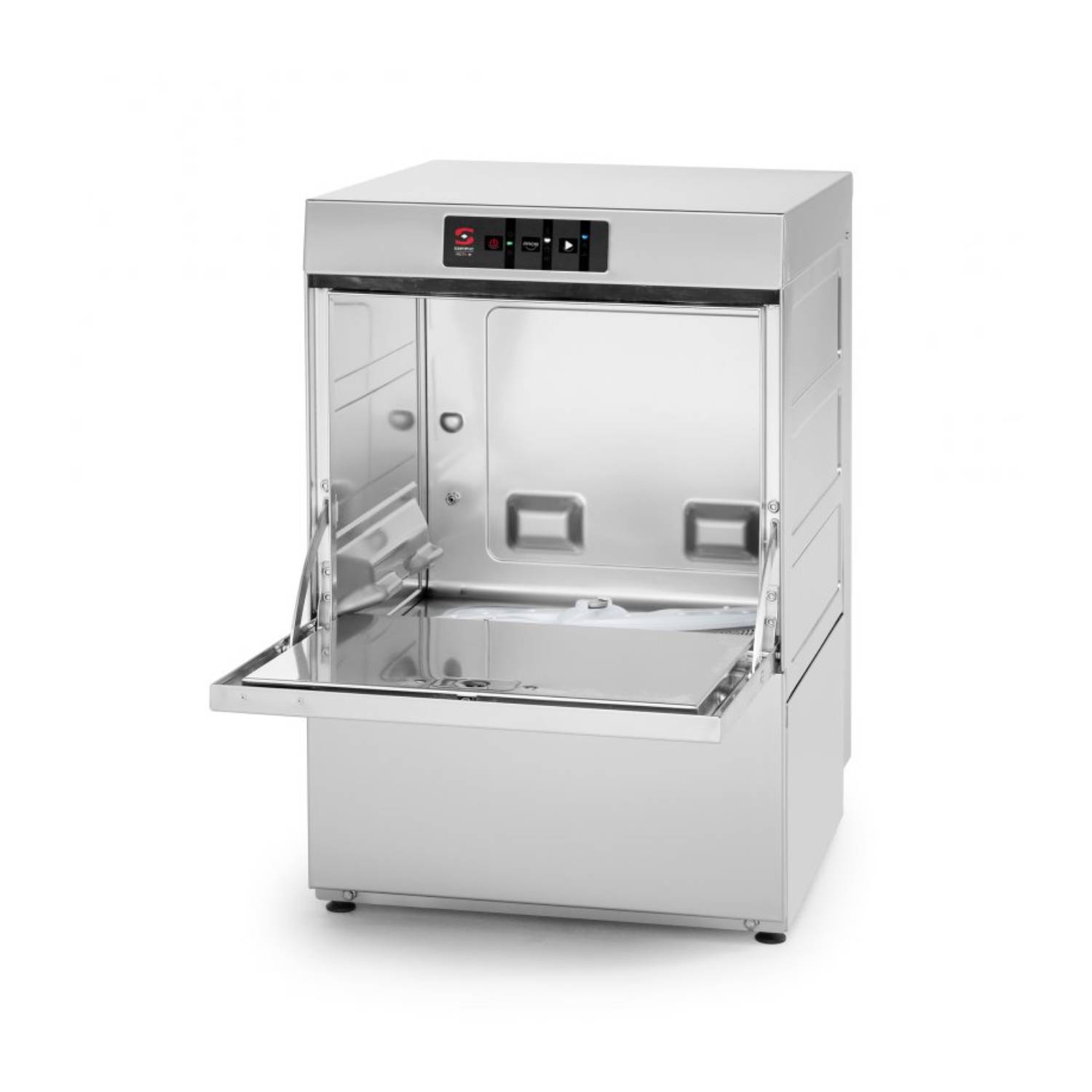

“Easy grip” door: new design with integrated door handle
- The integration of the components provides greater resistance and robustness.
- Designed to have no corners or areas that are difficult to access: prevents deposits of dirt and facilitates cleaning.
- Its ergonomic handle provides a perfect grip, even with wet hands.
- Double-walled door with safety microswitch and high quality seal
- 38 cm loading capacity: high versatility for washing a wide range of items: dishes, Euronorm trays, GN 1/1 tubs and pizza plates diam 39
Warewashing, made simple
- Active Xperience: simple and intuitive use
- Dedicated cycles: selection of the ideal washing programme using icons.
- Electronic control panel with IP65 humidity protection.
For electrical products we always recommend consulting a certified electrician if you are unsure of installing them and the electrical requirements for them.
