Description

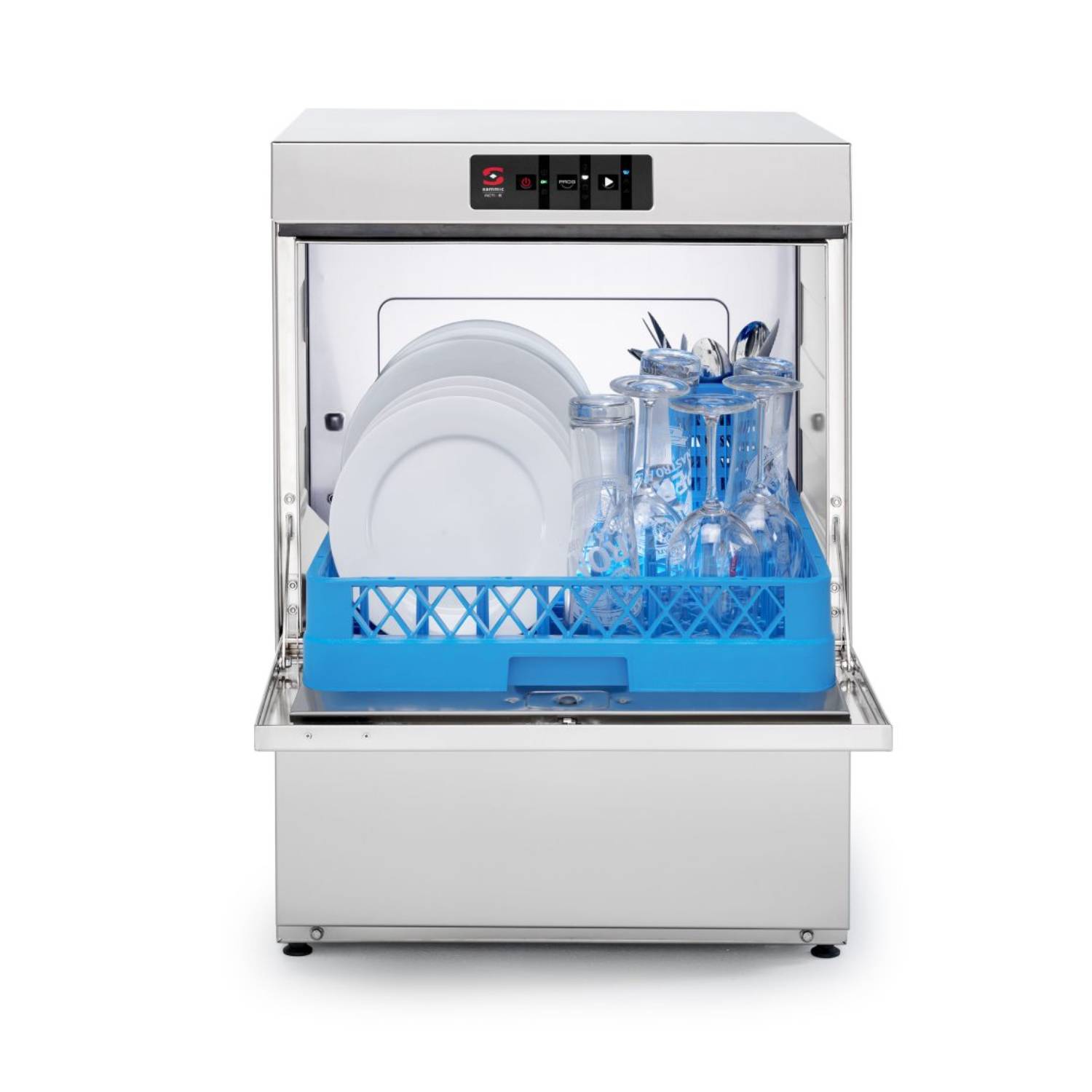

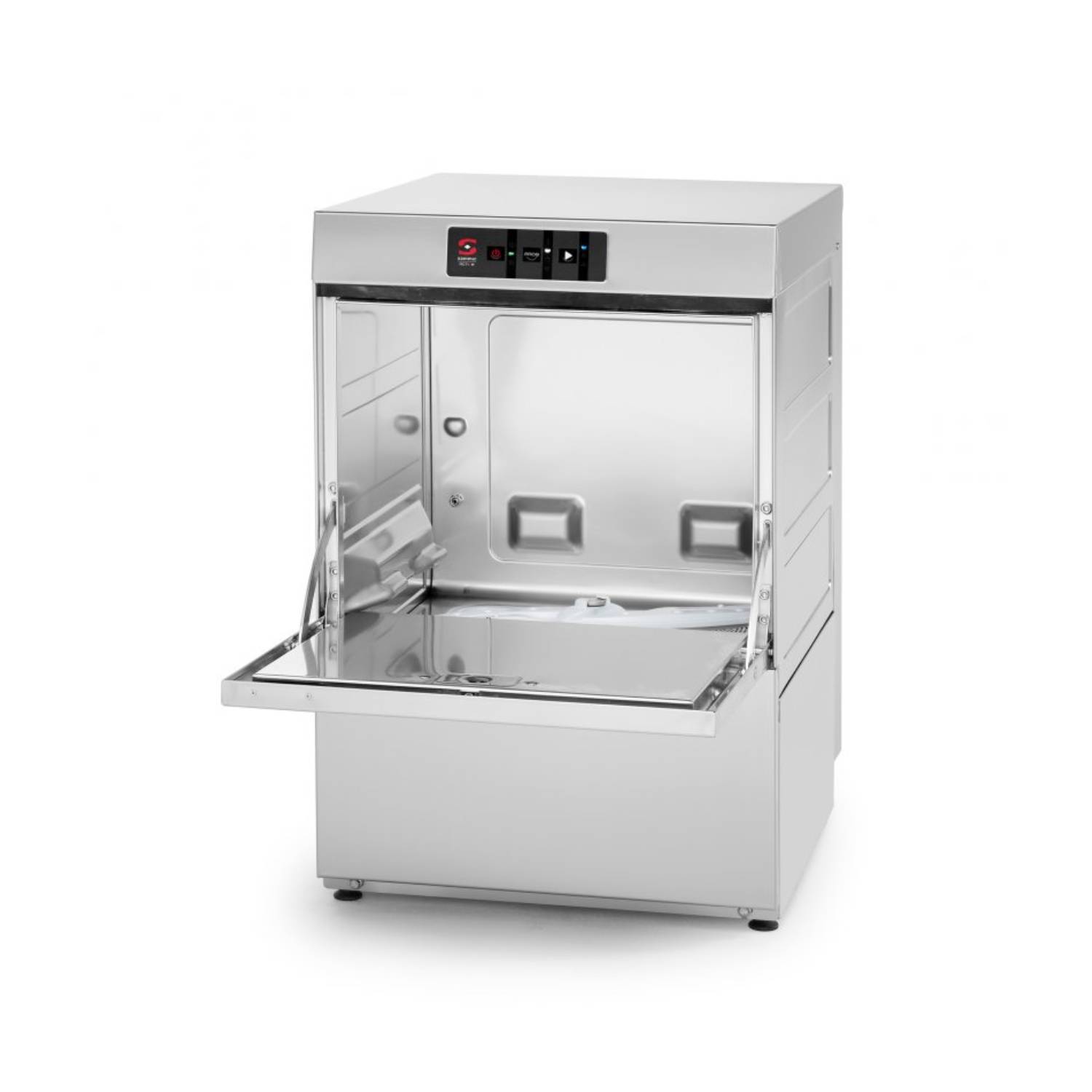

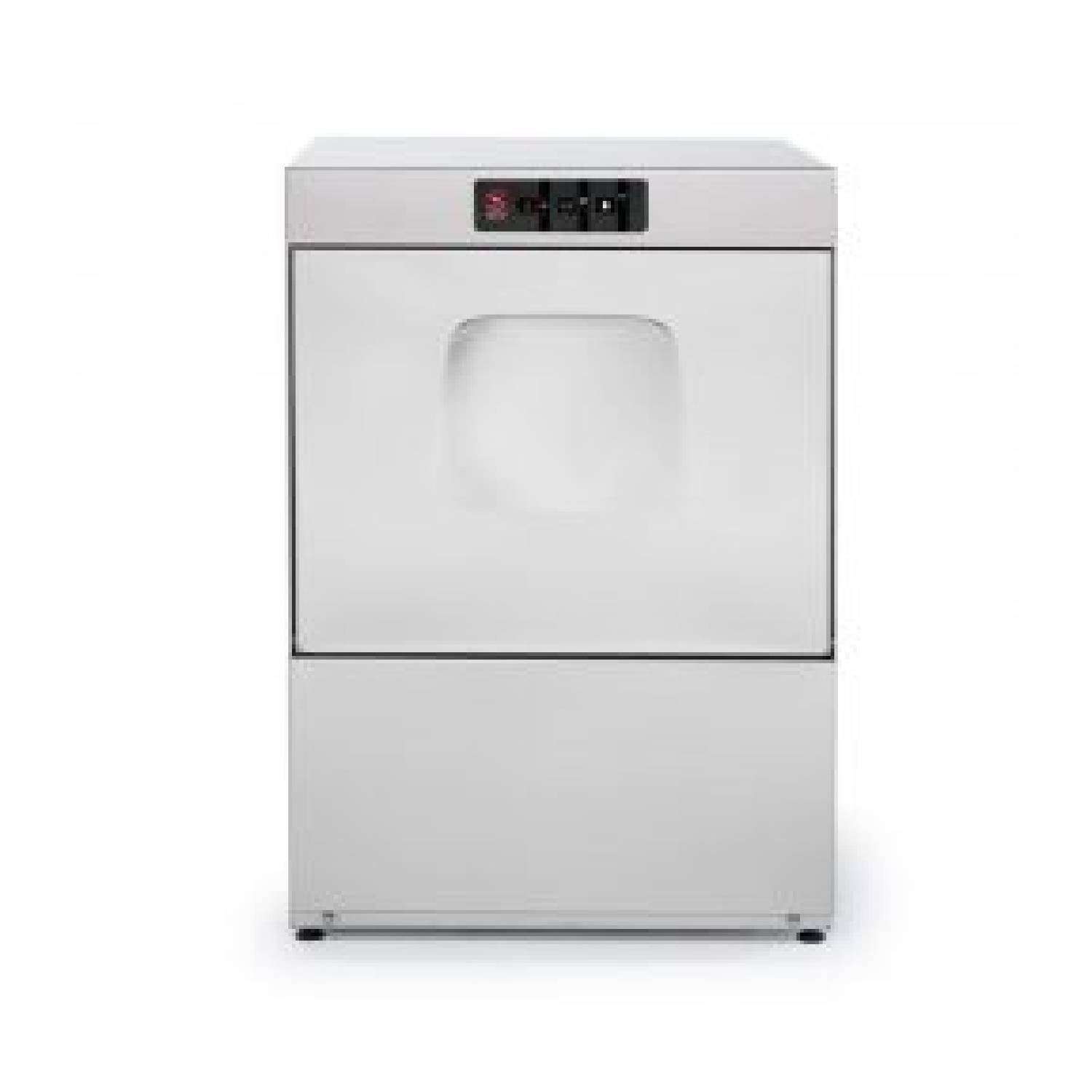

SAMMIC Active AX-51 Dishwasher, 500mm Basket (Multi Power)
SAMMIC Active AX-51 Dishwasher, 500mm Basket (Multi Power) is part of the NEW range of front loading commercial dishwashers from Sammic developed with the aim of making the latest washing technologies available to professionals, without the hassle.
All this, with all the advantages of the new Sammic warewashing family: deep drawn tanks, Hydroblade arms, 3 stage filters, ergonomics and resource efficiency ensures high performance, without complications
PRODUCT FEATURES:
- 3 stage filtering system
- Sani-Control: guaranteed disinfection
- Constant high temperature rinse system for optimal disinfection
- Embedded bodywork and easy-grip door: hygienic and ergonomic
- Double-walled body (partial)
- Multipower model
TECHNICAL SPECIFICATION:
- Basket dimensions: 500 mm x 500 mm
- Maximum glass height: 380 mm
- Production baskets/hour: 30 / 24 / 17
- Wash temperature: 50 ºC – 65 ºC
- Rinse temperature: 75 ºC – 85 ºC
- Boiler capacity: 8 l
- Wash tank capacity: 14 l
- Water consumption/cycle: 2.7 l
Loading
Pump: 500 W / 0.7 Hp
Tank: 1800 W
Boiler: 2000 / 4000 / 5000 W
Total loading: 2500 / 4500 / 5500 W
POWER CONFIGURATION OPTIONS: Please make your selection at checkout.

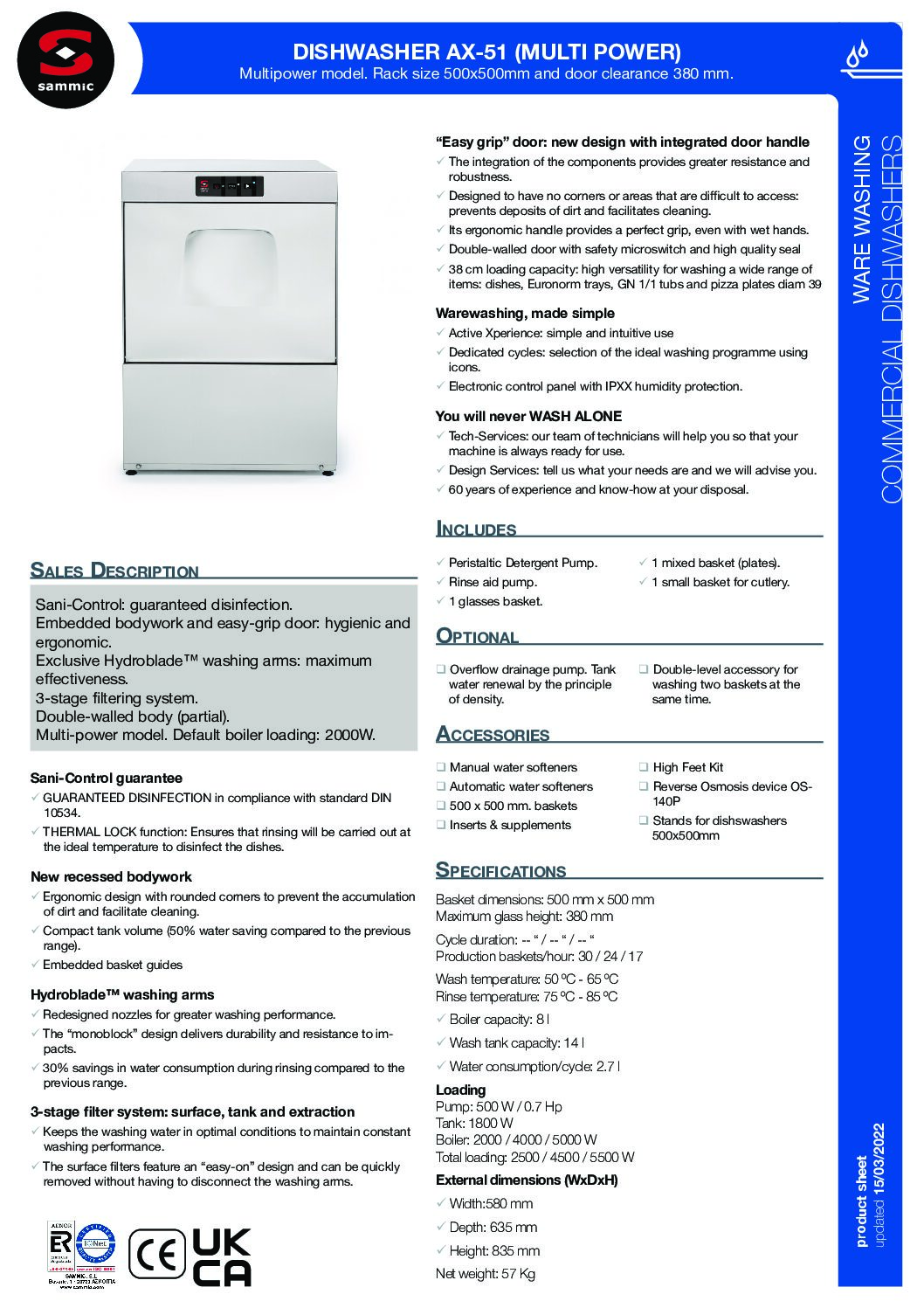

We recommend reading the spec sheet for full technical specification and electrical requirements.
MULTIPHASE MACHINE: Option of either 3Phase or Single Phase – Adjustable on site
-
Three phase – requires to be hardwired
-
20Amp or 25 Amp, Single phase hardwired
-
13 A, single phase with wire for plug
Includes:
Peristaltic Detergent Pump
Rinse aid Pump
1 glasses basket.
1 mixed basket (plates)
1 small basket for cutlery
Optional
Overflow drainage pump. Tank water renewal by the principle of density
Double-level accessory for washing two baskets at the same time.
EXTERNAL DIMENSIONS:
Width: 580mm
Depth: 635mm
Height: 835mm
INSTALLATION REQUIREMENTS: Must be installed by a qualified electrician. Incorrect compliance to current installation legislation will lead to invalidation of warranty.
Sani-Control guarantee
- GUARANTEED DISINFECTION in compliance with standard DIN 10534.
- THERMAL LOCK function: Ensures that rinsing will be carried out at the ideal temperature to disinfect the dishes.
New recessed bodywork
- Ergonomic design with rounded corners to prevent the accumulation of dirt and facilitate cleaning.
- Compact tank volume (50% water saving compared to the previous range).
- Embedded basket guides
Hydroblade™ washing arms
- Redesigned nozzles for greater washing performance.
- The “monoblock” design delivers durability and resistance to impacts.
- 30% savings in water consumption during rinsing compared to the previous range.
3-stage filter system: surface, tank and extraction
- Keeps the washing water in optimal conditions to maintain constant washing performance.
- The surface filters feature an “easy-on” design and can be quickly removed without having to disconnect the washing arms.
“Easy grip” door: new design with integrated door handle
- The integration of the components provides greater resistance and robustness.
- Designed to have no corners or areas that are difficult to access: prevents deposits of dirt and facilitates cleaning.
- Its ergonomic handle provides a perfect grip, even with wet hands.
- Double-walled door with safety microswitch and high quality seal
- 38 cm loading capacity: high versatility for washing a wide range of items: dishes, Euronorm trays, GN 1/1 tubs and pizza plates diam 39
Warewashing, made simple
- Active Xperience: simple and intuitive use
- Dedicated cycles: selection of the ideal washing programme using icons.
- Electronic control panel with IP65 humidity protection.
