SAMMIC Active AX-51BC Multi Power Proactive Dishwasher, 500mm Basket (Break Tank)

£2,049.00 ( £2,458.80 inc. VAT)

Multi Power Model with Drain Pump, Break Tank & Peristaltic Detergent Pump.

Simple and user-friendly control. Dedicated cycles: duration of the cycle adapted according to to the type of item to be washed.

AVAILABLE IN THIS RANGE:

AX-51BC – with Break Tank & Drain Pump

AX-51BCD – with Break Tank, Drain Pump & Automatic Water Softener



Add to Wishlist
Add to Wishlist
Compare

Description

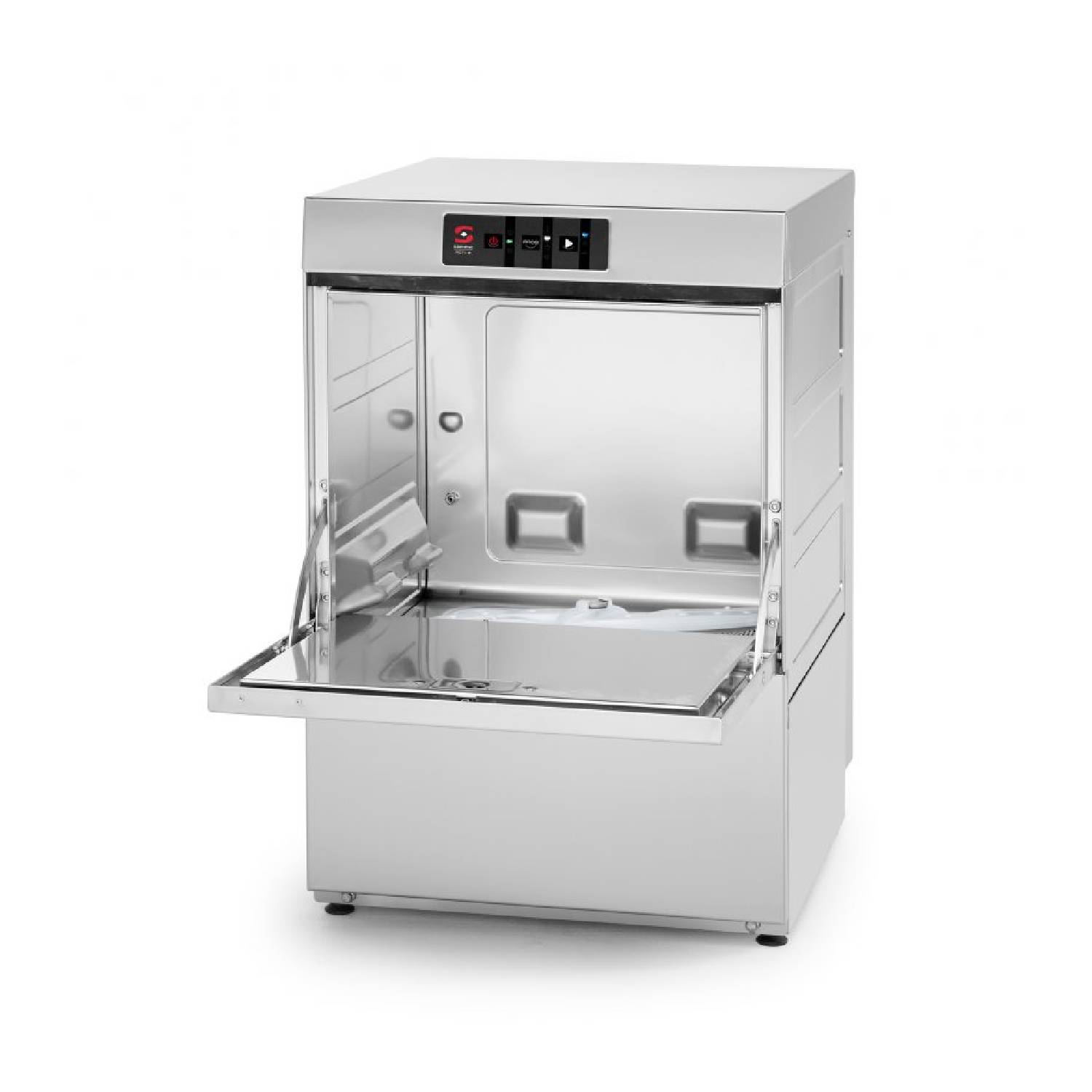

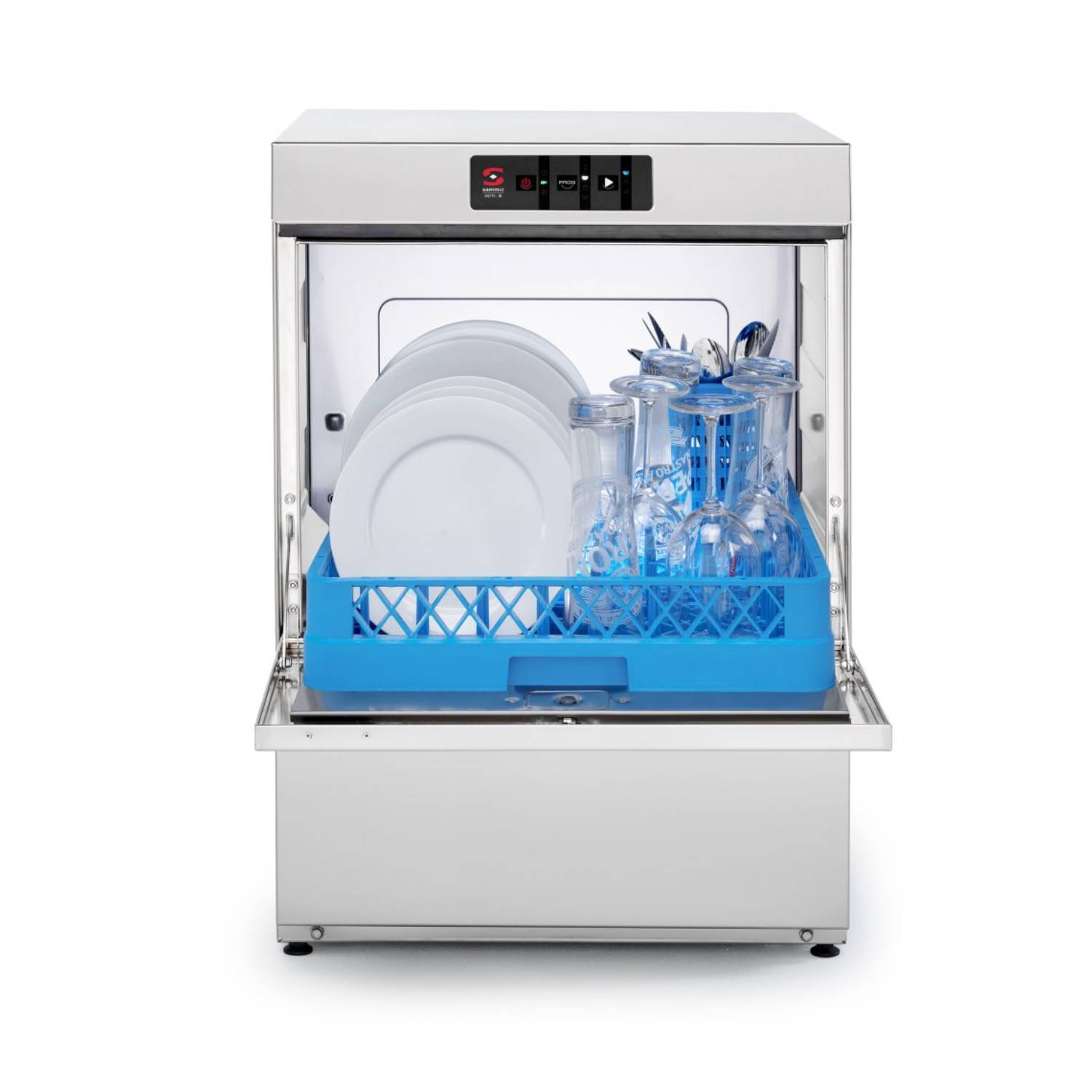

SAMMIC Active AX-51BC Multi Power Proactive Dishwasher, 500mm Basket (Break Tank)

SAMMIC Active AX-51BC Multi Power Proactive Dishwasher, 500mm Basket (Break Tank) is part of the NEW range of front loading commercial dishwashers from Sammic developed with the aim of making the latest washing technologies available to professionals, without the hassle.

All this, with all the advantages of the new Sammic warewashing family: deep drawn tanks, Hydroblade arms, 3 stage filters, ergonomics and resource efficiency ensures high performance, without complications

PRODUCT FEATURES:

  • Sani-Control: guaranteed disinfection
  • Dedicated cycles: selection of the ideal wash programme using icons
  • Electronic control panel with IP65 humidity protection
  • Constant high temperature rinse system for optimal disinfection
  • Embedded bodywork and easy-grip door: hygienic and ergonomic
  • Double-walled body (partial).
  • Multi-power model.
  • Product Code: 1303193/1303194

TECHNICAL SPECIFICATION:

  • Basket dimensions: 500 mm x 500 mm
  • Maximum glass height: 380 mm
  • Production baskets/hour: 30 / 24 / 17
  • Wash temperature: 50 ºC – 65 ºC
  • Rinse temperature: 75 ºC – 85 ºC
  • Water consumption/cycle: 2.7 l
  • Wash tank capacity: 14 l
  • Boiler capacity: 8 l

LOADING:

  • Pump: 500 W / 0.7 Hp
  • Tank: 1800 W
  • Boiler: 2000 / 4000 / 5000 W
  • Total loading: 2500 / 4500 / 5500 W

POWER CONFIGURATION OPTIONS: Please make your selection at checkout.

We recommend reading the spec sheet for full technical specification and electrical requirements.

MULTIPHASE MACHINE: Option of either 3Phase or Single Phase – Adjustable on site

  • Three phase – requires to be hardwired
  • 20Amp or 25 Amp, Single phase hardwired
  • 13 A, single phase with wire for plug

Includes:

  • Peristaltic Detergent Pump
  • Rinse Aid Pump
  • Overflow drainage pump. Tank renewal by the principle of density
  • Type-A air break (WRAS approval in process 09/21)
  • 1 glasses basket.
  • 1 mixed basket (plates)
  • 1 small basket for cutlery

Optional

  • Automatic built in water softener
  • Double level accessory for washing two baskets at the same time.

EXTERNAL DIMENSIONS:

Width: 580mm

Depth: 635mm

Height: 835mm

INSTALLATION REQUIREMENTS: Must be installed by a qualified electrician. Incorrect compliance to current installation legislation will lead to invalidation of warranty.




Sani-Control guarantee

  • GUARANTEED DISINFECTION in compliance with standard DIN 10534.
  • THERMAL LOCK function: Ensures that rinsing will be carried out at the ideal temperature to disinfect the dishes.

New recessed bodywork

  • Ergonomic design with rounded corners to prevent the accumulation of dirt and facilitate cleaning.
  • Compact tank volume (50% water saving compared to the previous range).
  • Embedded basket guides

Hydroblade™ washing arms

  • Redesigned nozzles for greater washing performance.
  • The “monoblock” design delivers durability and resistance to impacts.
  • 30% savings in water consumption during rinsing compared to the previous range.

3-stage filter system: surface, tank and extraction

  • Keeps the washing water in optimal conditions to maintain constant washing performance.
  • The surface filters feature an “easy-on” design and can be quickly removed without having to disconnect the washing arms.

“Easy grip” door: new design with integrated door handle

  • The integration of the components provides greater resistance and robustness.
  • Designed to have no corners or areas that are difficult to access: prevents deposits of dirt and facilitates cleaning.
  • Its ergonomic handle provides a perfect grip, even with wet hands.
  • Double-walled door with safety microswitch and high quality seal
  • 38 cm loading capacity: high versatility for washing a wide range of items: dishes, Euronorm trays, GN 1/1 tubs and pizza plates diam 39

Warewashing, made simple

  • Active Xperience: simple and intuitive use
  • Dedicated cycles: selection of the ideal washing programme using icons.
  • Electronic control panel with IP65 humidity protection.

Additional information

Weight 55 kg
Dimensions Depth 635 mm , Width 580 mm , Height 835 mm.
Brand

Sammic

Power Requirement

Available as Single or 3 Phase

Basket Dimensions

500mm x 500mm

Wash Cycles

3

Cycle Duration

120" / 150" / 210"

Production

30 / 24 / 17

Warranty

2 years parts and labour

Model

AX-51BC Multi-Phase

Delivery Options

Free next day delivery as standard if ordered before 12, otherwise within 48 hours. Excludes the Scottish Highlands and Islands (please call for a delivery quote), Whilst we always try to ensure our stock levels are accurate we would always advise you check that the item is in stock if your order is urgent.

Break-tank

Yes

Power

13 amp standard plug, 3 Phase Electric, Single Phase Electric

Built in Drain Pump

Yes

Chemical Pump

No

Integral Water Softener

No

Options

AX-51BC : 20Amp or 25 Amp, Single phase hardwired, AX-51BC: 3 Phase Hardwired, AX-51BC: Single phase with wire for 13amp plug
