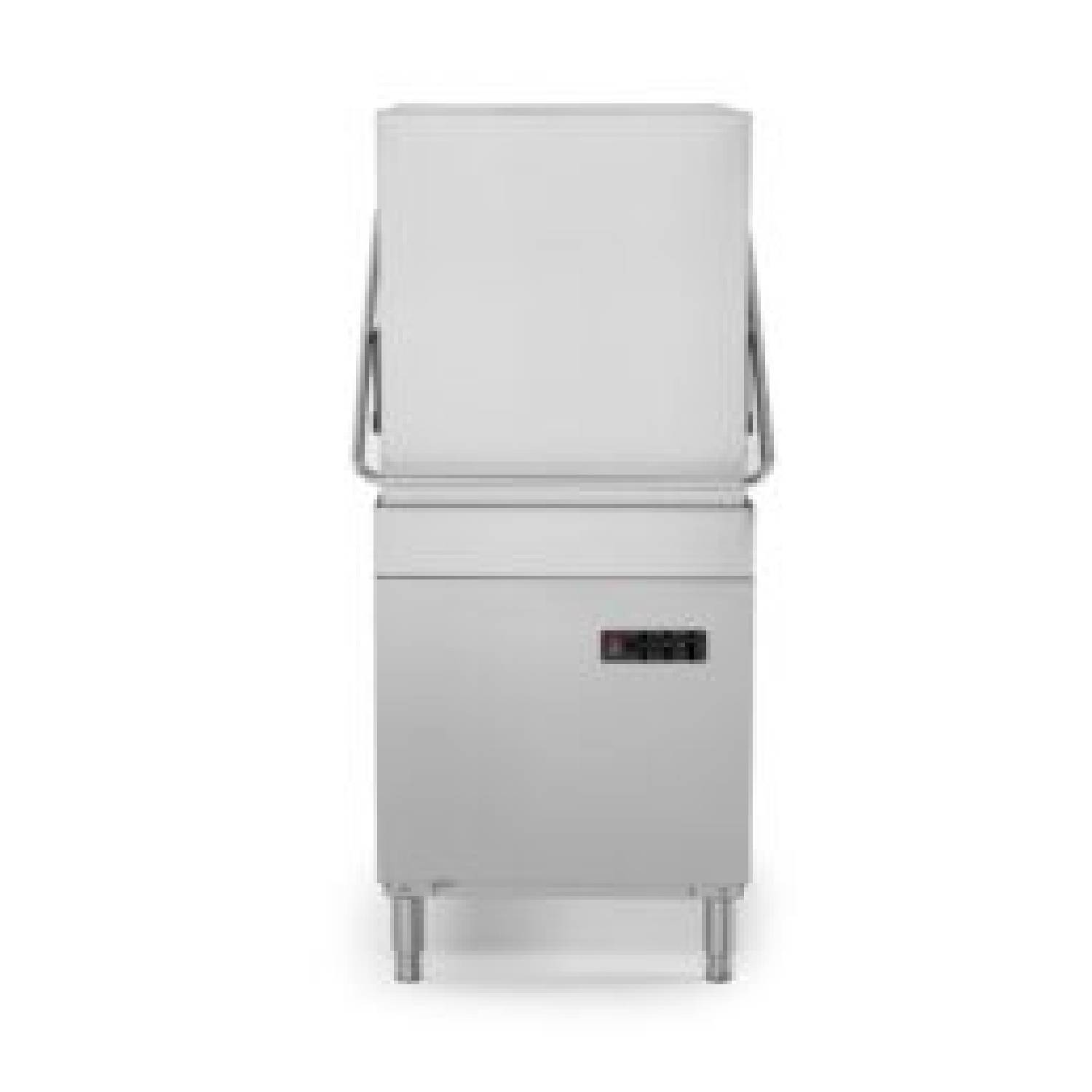

SAMMIC Ultra UX-120SBCD Pass Through Dishwasher, 500mm basket (Double Skinned, Drain Pump, Break Tank, Water Softener)

£4,192.00 ( £5,030.40 inc. VAT)

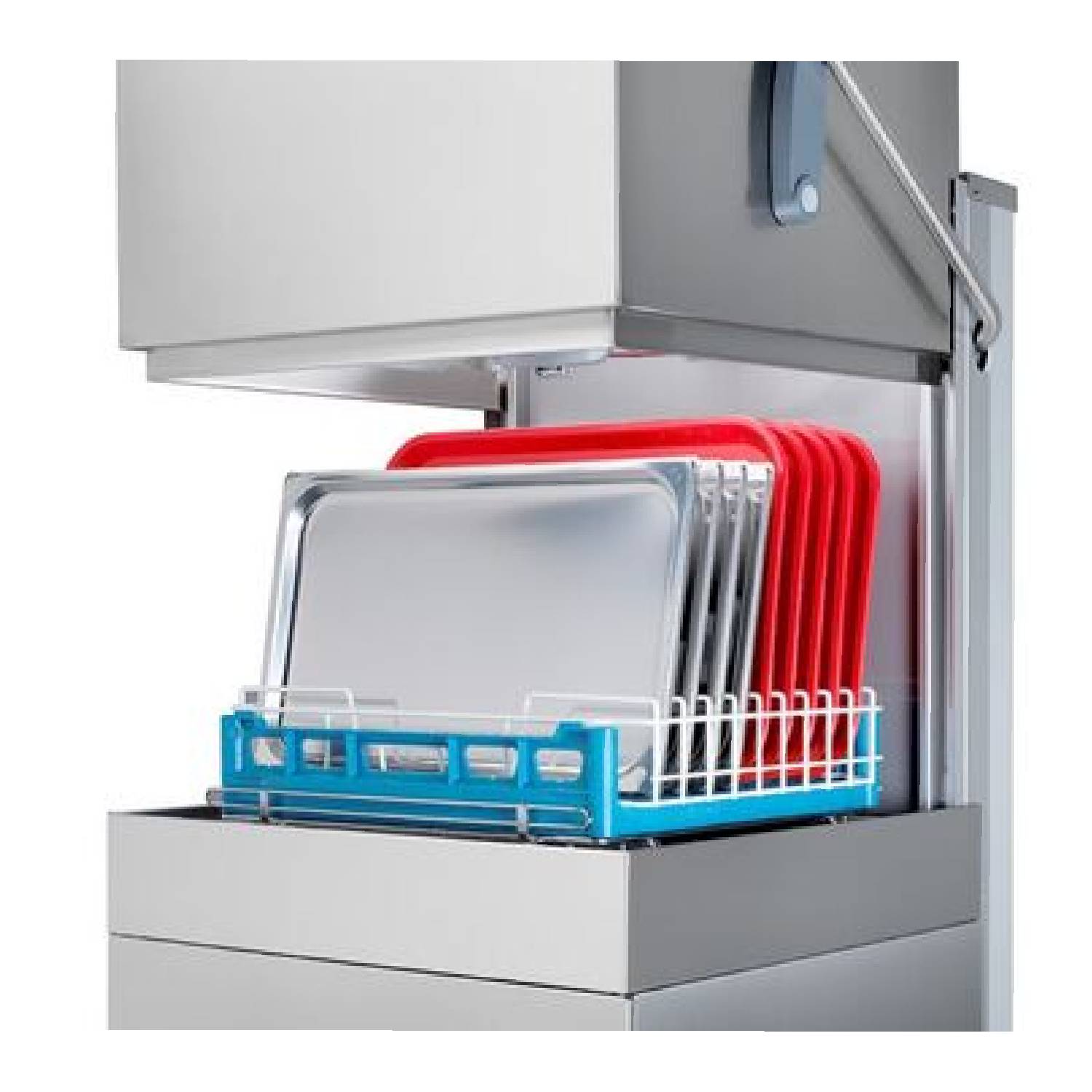

Hood type dishwasher, designed for comfortable operation thanks to front or side loading.

Rack size 500x500mm and door clearance 430 mm


UX-120SBC – with Drain Pump + Break Tank + Thermo-acoustic insulation

UX-120SBCD – with Drain Pump + Break Tank + Water Softener +Thermo-acoustic insulation

UX-120SBCV – with Drain Pump + Break Tank + Steam condenser + Thermo-acoustic insulation

UX-120SBCDV – with Drain Pump + Break Tank + Steam condenser + Automatic Water Softener + Thermo-acoustic insulation

Add to Wishlist
Add to Wishlist


SAMMIC Ultra UX-120SBCD Pass Through Dishwasher, 500mm basket (Double Skinned, Drain Pump, Break Tank, Water Softener)

SAMMIC Ultra UX-120SBCD Pass Through Dishwasher, 500mm basket (Double Skinned, Drain Pump, Break Tank, Water Softener) is part of the new ULTRA range of hood type dishwashers from Sammic developed with the aim of making the latest washing technologies available to professionals, without the hassle.


  • UX-120SBCD with Drain Pump & Type A air break (WRAS approval in process 09/2021) Thermo-acoustic insulation (Double skin) & Water Softener
  • Soft Start: progressive start-up of the washing pump to protect fragile items

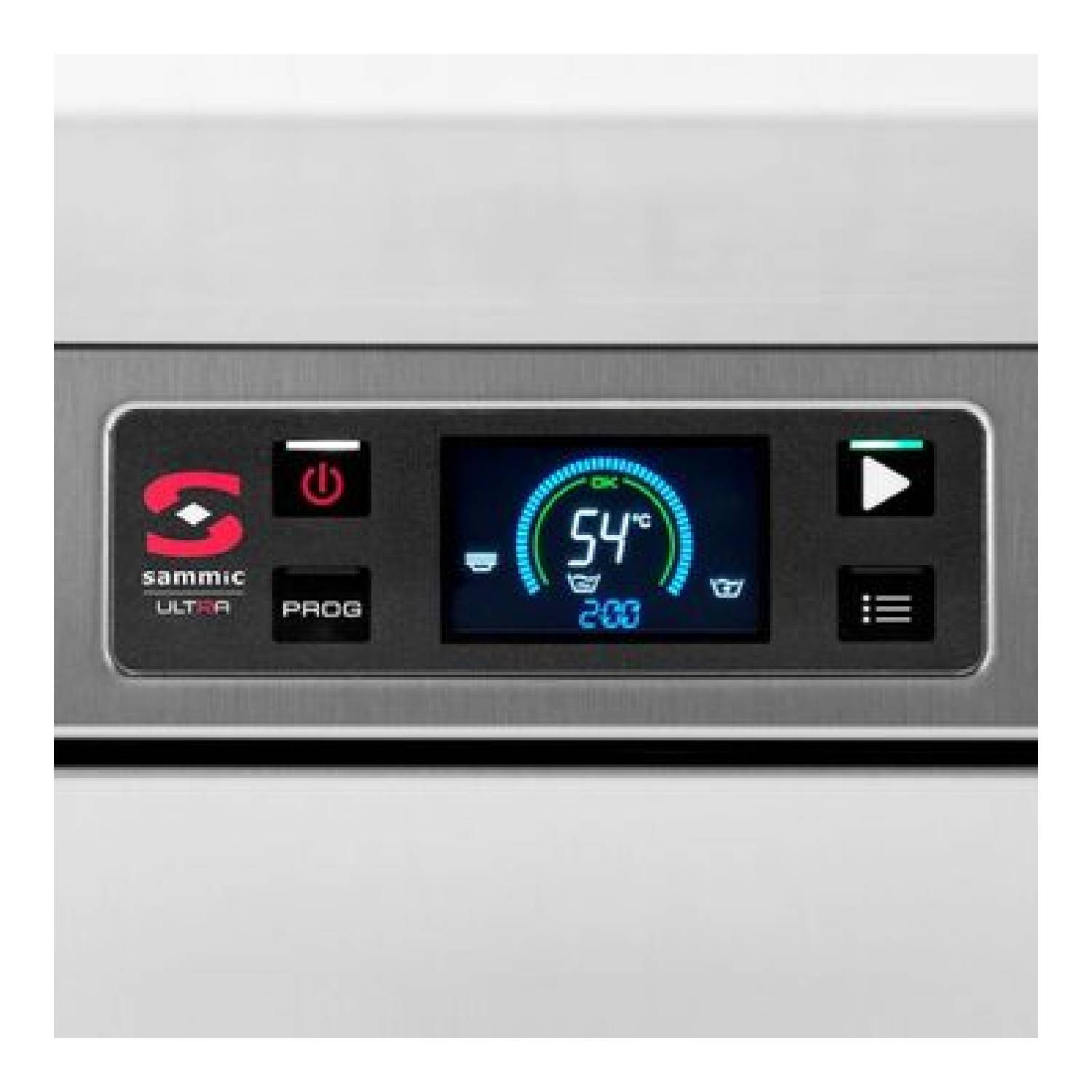

  • Colour LCD Display: intuitive communication of the machine status by means of messages, colour codes and icons.
  • Dosage control from control board
  • Temperature Display
  • Wash Plus+function: increases the intensity of the wash cycle for greater cleaning performance
  • Control panel with IP65 humidity protection
  • Energy-saving function: Temp reduction & electricity consumption saving during periods of temporary inactivity of the machine.
  • Product code: 1303406/1303407


  • Basket dimensions: 500 mm x 500 mm
  • Maximum glass height: 430 mm
  • Cycles: 6
  • Cycle duration: 60/90/100/150/210 “
  • Production baskets/hour: 60/40/36/24/17
  • Boiler capacity: 12 l
  • Wash tank capacity: 25 l

Consumption and savings

  • Water consumption/cycle: 2.8 l
  • Automatic saving mode in: 25 ‘
  • Automatic switch-off: 120 ‘

Pump: 1000 W / 1.3 Hp
Tank: 2500 W
Boiler: 7500 / 9000 W
Total loading: 8500 W (1~) / 10000 W (3~)

Net weight: 116 Kg

Wash temperature: — ºC
Rinse temperature: 87 ºC
Noise level (1m.): <70 dB(A)

POWER CONFIGURATION OPTIONS: Please make your selection at checkout.

We recommend reading the spec sheet for full technical specification and electrical requirements.

 Option of either 3Phase or Single Phase – Both Phases require to be hardwired*

External dimensions (WxDxH)

  • Width:650 mm (: — mm)
  • Depth: 755 mm (: — mm)
  • Height: 2000 mm / 1520 mm

Net weight: 135 Kg


  • Peristaltic Detergent pump
  • Type-A air break (WRAS approval in process 09/21)
  • Rinse aid pump.
    Detergent Dispenser
    1 glasses basket.
    1 mixed basket (plates).
    1 cutlery basket.
    Drainage pump with level sensor. Proactive tank water renewal.


  • Automatic resin regeneration water softener with salt detector

*INSTALLATION REQUIREMENTS: Must be installed by a qualified electrician. Incorrect compliance to current installation legislation will lead to invalidation of warranty.


Sani-Control guarantee

  • GUARANTEED DISINFECTION in compliance with standard DIN 10534.
  • THERMAL LOCK function: Ensures that rinsing will be carried out at the ideal temperature to disinfect the dishes.

New recessed bodywork

  • Ergonomic design with rounded corners to prevent the accumulation of dirt and facilitate cleaning.
  • Compact tank volume (50% water saving compared to the previous range).
  • Embedded basket guides

Double-Walled (Ultra ISO)

  • Double-Walled Structure: thermo-acoustic insulation to attenuate the sound level and improve energy efficiency

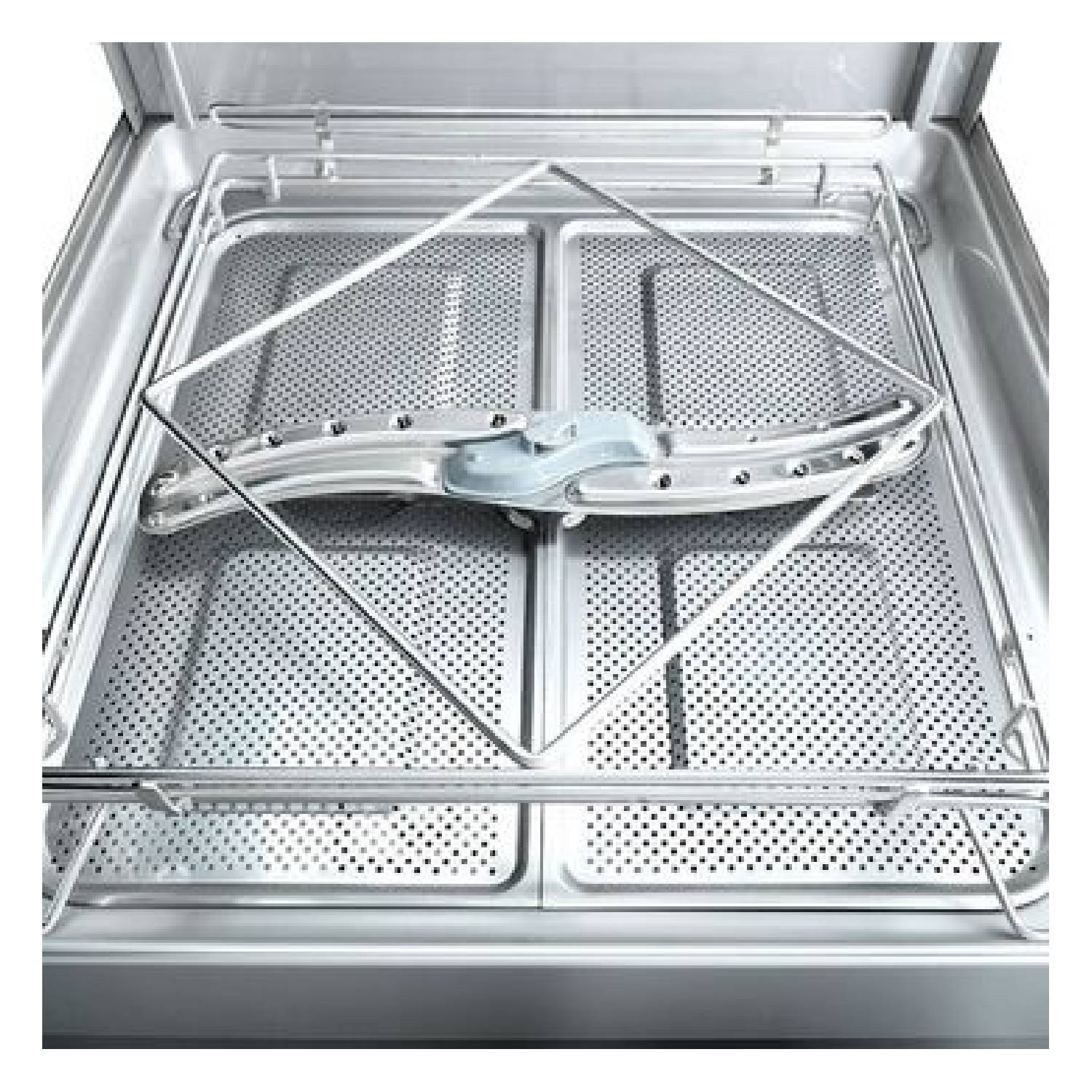

Hydroblade™ washing arms

  • Redesigned nozzles for greater washing performance.
  • The “monoblock” design delivers durability and resistance to impacts.
  • 30% savings in water consumption during rinsing compared to the previous range.

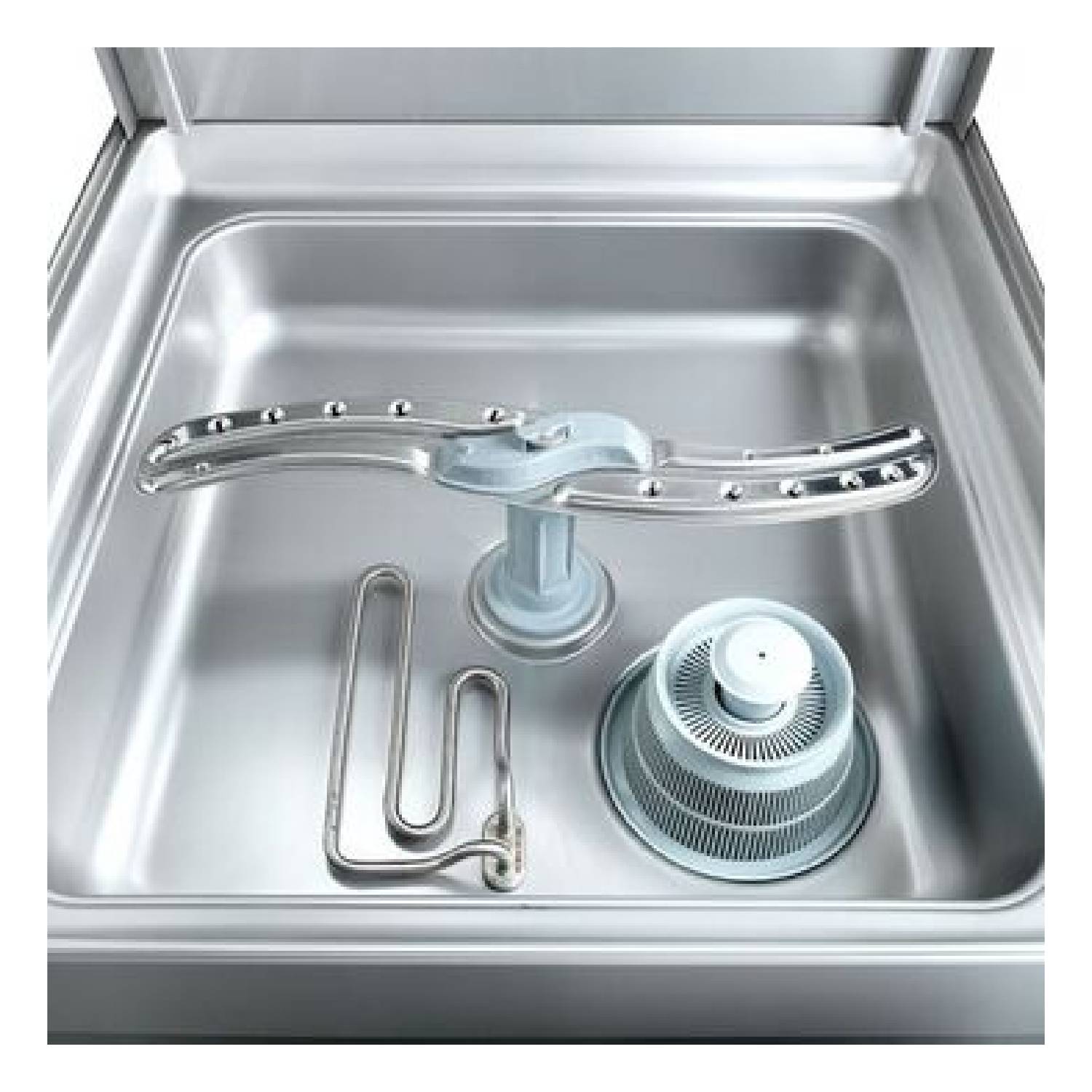

3-stage filter system: surface, tank and extraction

  • Keeps the washing water in optimal conditions to maintain constant washing performance.
  • The surface filters feature an “easy-on” design and can be quickly removed without having to disconnect the washing arms.

Additional information

Weight 135 kg
Dimensions Depth 750 mm , Width 650 mm , Height 2000 mm.


Power Requirement

Available as Single or 3 Phase

Basket Dimensions

500mm x 500mm

Wash Cycles


Cycle Duration





2 years parts and labour



Delivery Options

Free next day delivery as standard if ordered before 12, otherwise within 48 hours. Excludes the Scottish Highlands and Islands (please call for a delivery quote), Whilst we always try to ensure our stock levels are accurate we would always advise you check that the item is in stock if your order is urgent.




3 Phase Electric, Single Phase Electric

Built in Drain Pump


Chemical Pump


Integral Water Softener



UX-120SBCD – Single Phase, UX-120SBCD – Three Phase
