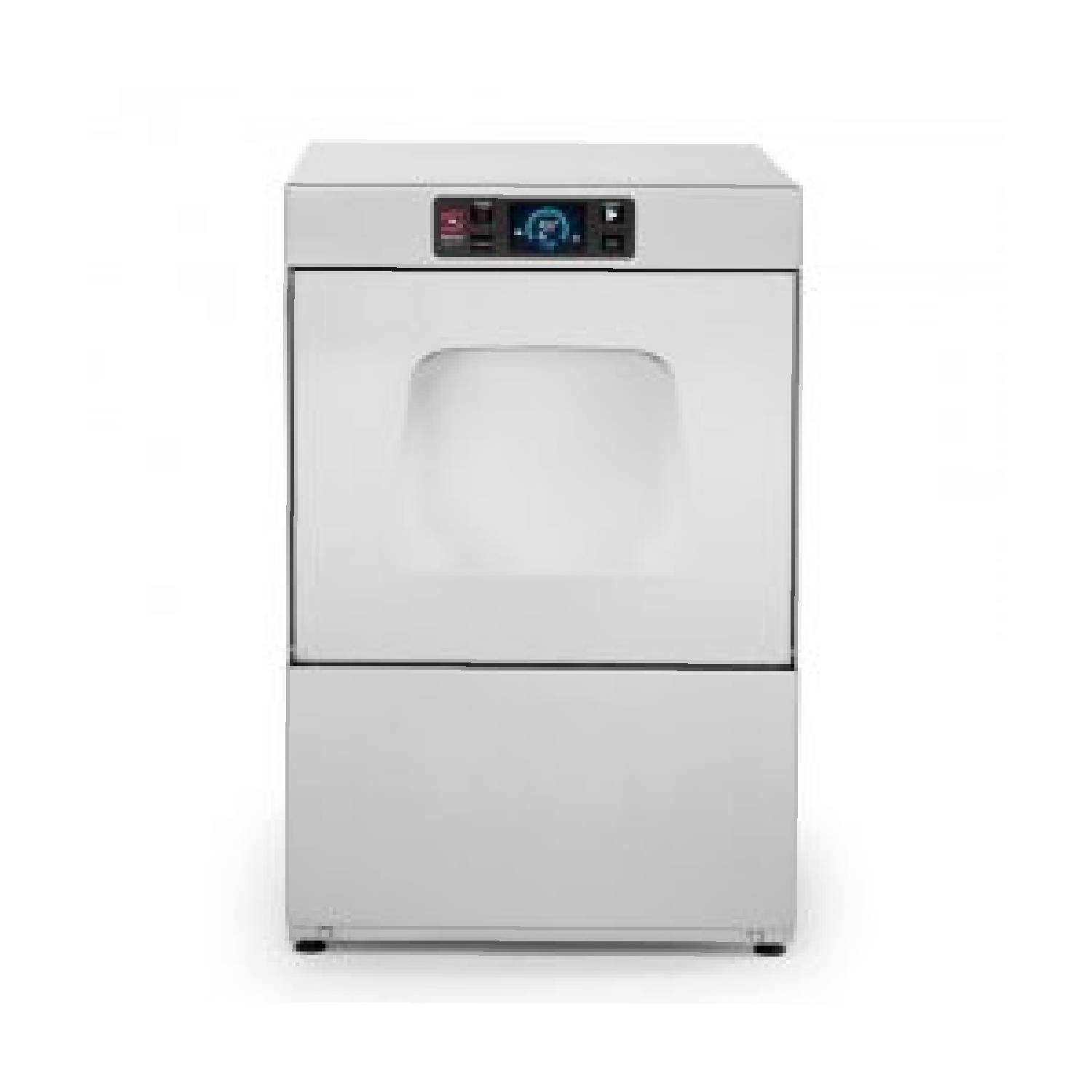

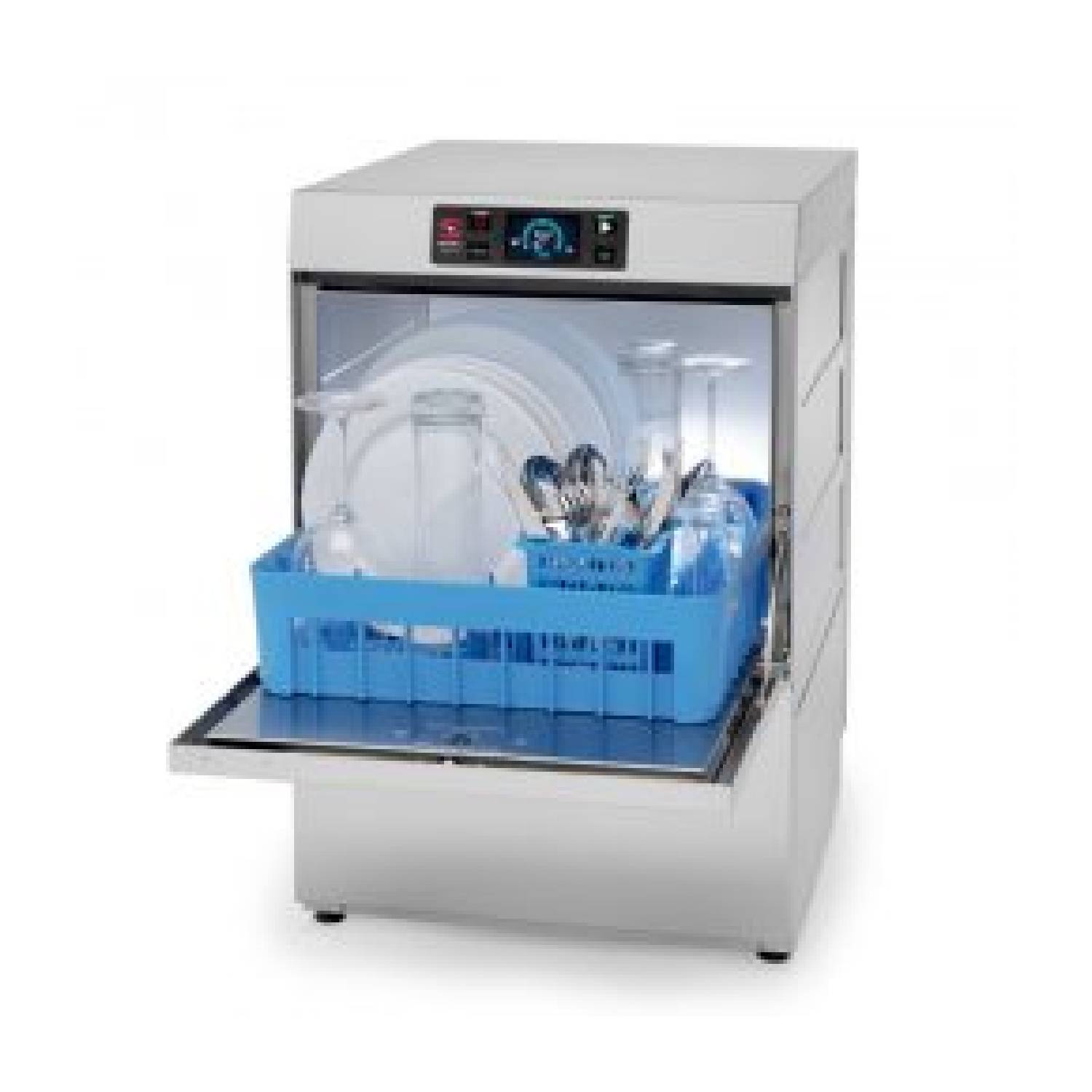

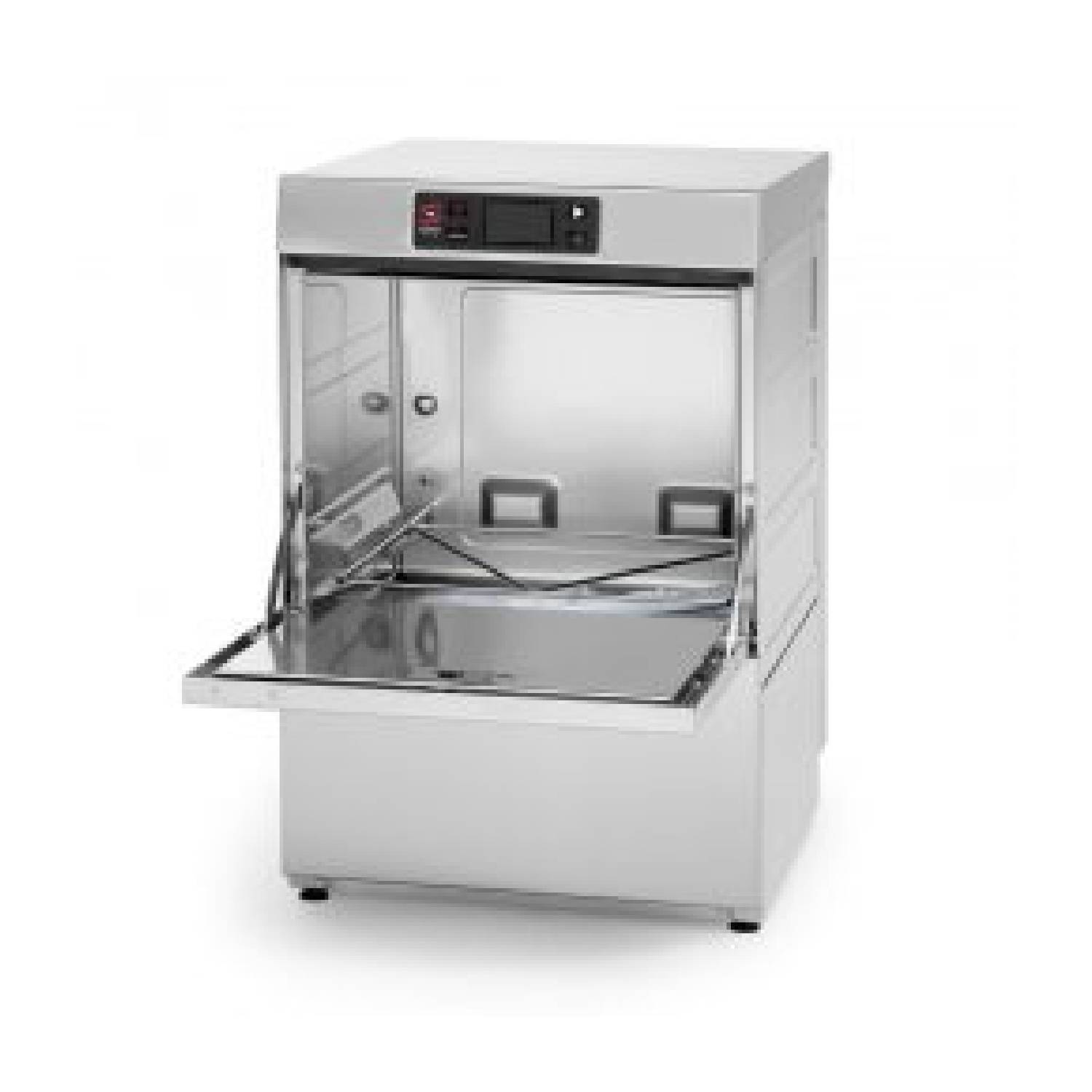

Sammic ULTRA UX-50BC Premium Dishwasher 500mm Basket (Drain Pump, Break Tank)

£2,393.00 ( £2,871.60 inc. VAT)

NEW Ultra Range – Premium Washing Experience from Sammic.

Rack size 500 x 500m and door clearance 380mm. Multi-power version

AVAILABLE IN THIS RANGE:

UX-50B – Standard Model with Drain Pump

UX-50BD – Drain Pump + Manual Water softener

UX-50BC –  Drain Pump + Break Tank

UX-50BCD – Drain Pump + Automatic water softener + Break tank

UX-50SBC – Drain Pump + Double skinned body + Break Tank

UX-50SBCD – Drain Pump + Double skinned body + Automatic water softener + Break tank

Add to Wishlist
Add to Wishlist
Compare

Description

Sammic ULTRA UX-50BC Premium Dishwasher 500mm Basket (Drain Pump, Break Tank)

Sammic ULTRA UX-50BC Premium Dishwasher 500mm Basket (Drain Pump, Break Tank) is part of the Ultra range conceived in an aim to meet the expectations of the most demanding sectors, whether they are after sparkling finishes, high productivity or are rigorous with hygiene management.

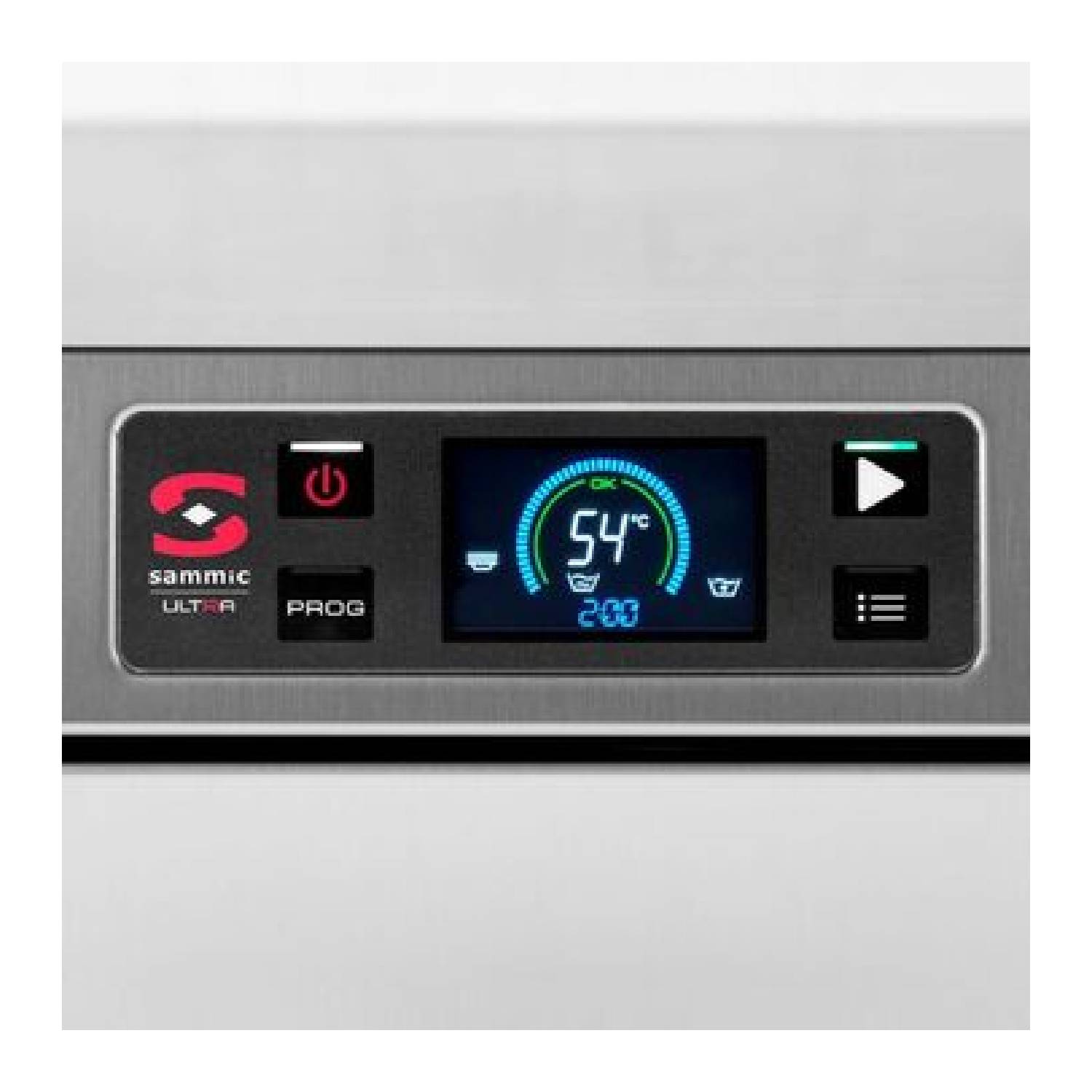

Equipped with the state of the art technologies such as: Colour LCD display providing an advanced image sharpness to make the screen easy to read; a control panel that combines technical sophistication and ease of use and quick and intuitive reading of machine information and status through messages, colour-coding an icons.

This range comes with a wide line of options available to best suit each user’s particular needs.

  • Sammic UX-50BD Ultra Glasswasher with drain pump & break tank
  • Sani-Control: guaranteed disinfection.
  • Embedded bodywork and easy-grip door: hygienic and ergonomic
  • Exclusive Hydroblade™ washing arms: maximum effectiveness.
  • 3-stage filtering system.
  • Double-walled body (partial).
  • Multi-power model. Default boiler loading: 2000W.
  • Product Code: 1303242/1303243

POWER CONFIGURATION OPTIONS: Please make your selection at checkout.

We recommend reading the spec sheet for full technical specification and electrical requirements.

MULTIPHASE MACHINE: Option of either 3Phase or Single Phase – Adjustable on site

    • Three phase – requires to be hardwired
    • 20Amp or 25 Amp, Single phase – requires to be hardwired
    • 13 A, single phase with wire for plug

TECHNICAL SPECIFICATION:

  • Basket dimensions: 500 mm x 500 mm
  • Maximum glass height: 380 mm
  • Cycle duration: 90/110/120/180/240 “
  • Production baskets/hour: 40/33/30/20/15
  • Wash temperature: — ºC – 65 ºC
  • Rinse temperature: 65 ºC – 87 ºC
  • Boiler capacity: 8 l
  • Wash tank capacity: 14 l

Consumption and savings:

  • Water consumption/cycle: 2.5 l
  • Automatic saving mode in: 25 ‘
  • Automatic switch-off: 120 ‘

Loading:

  • Pump: 750 W / 1 Hp
  • Tank: 1800 W
  • Boiler: — W (single phase) / — W (multipower)
  • Total loading: 2550 / 4550 / 5550 W (single phase) / — W (multipower)

External dimensions:

Width: 580mm

Depth: 635mm

Height: 835mm

Default equipment

Peristaltic Detergent Pump.
Rinse aid pump.
1 glasses basket.
1 mixed basket (plates).
1 small basket for cutlery.

INSTALLATION REQUIREMENTS: Must be installed by a qualified electrician. Incorrect compliance to current installation legislation will lead to invalidation of warranty. A warranty call-out will not be instigated without the name of the installing engineer.

Excellent Construction Quality

Deep drawn wash chambers in all models that provide up to a 30% water saving compared to competitor designs. This construction technique offers numerous advantages including basket guides that are integrated to the body for improved hygiene and an ergonomic design with rounded tank corners to ensure easy cleaning.

Hydroblade Wash Arms

Combining linear design and a monobloc construction to provide higher washing efficiency and lower water consumption. Up to 30% less water usage during rinse and 40% lighter for faster rotation and a more uniform water jet for improved wash results

3 Stage Filtering System

Easily removable surface filters to retain heavy dirt and to capture 80% of waste. Larger capacity tank filter for blocking medium sized debris and final extraction filter to ensure even the lightest of dirt is blocked without affecting the suction of the wash pump

Easy Grip Door

Sturdy, ergonomic and easy to clean the easy grip door handle provides perfect adherence even when opening with wet hands.

Sani-Control Hygiene Guarantee

Guaranteed disinfection in compliance with the DIN 10534 standard. Integrated thermal lock function that ensures the rinse will be carried out at the ideal temperature to disinfect glassware and crockery.

Support & Backup

Sammic Glasswashers are supported with a 2 year on-site parts & labour warranty. Sammic technicians will ensure your machine is already for use with 60 years of experience and know-how at your disposal



Additional information

Weight 57 kg
Dimensions Depth 635 mm , Width 580 mm , Height 835 mm.
Brand

Sammic

Power

3 Phase Electric, Single Phase Electric

Power Requirement

Available as Single or 3 Phase

Warranty

2 years parts and labour

Basket Dimensions

500mm x 500mm

Wash Cycles

5

Cycle Duration

90/110/120/180/240 "

Production

40/33/30/20/15

Model

UX-50BC

Delivery Options

Free next day delivery as standard if ordered before 12, otherwise within 48 hours. Excludes the Scottish Highlands and Islands (please call for a delivery quote), Whilst we always try to ensure our stock levels are accurate we would always advise you check that the item is in stock if your order is urgent.

Break-tank

Yes

Chemical Pump

No

Built in Drain Pump

Yes

Integral Water Softener

No

Options

UX-50BC – 13 A, single phase with wire for plug, UX-50BC – 20Amp or 25 Amp, Single phase hardwired, UX-50BC – Three Phase hardwired
