Description

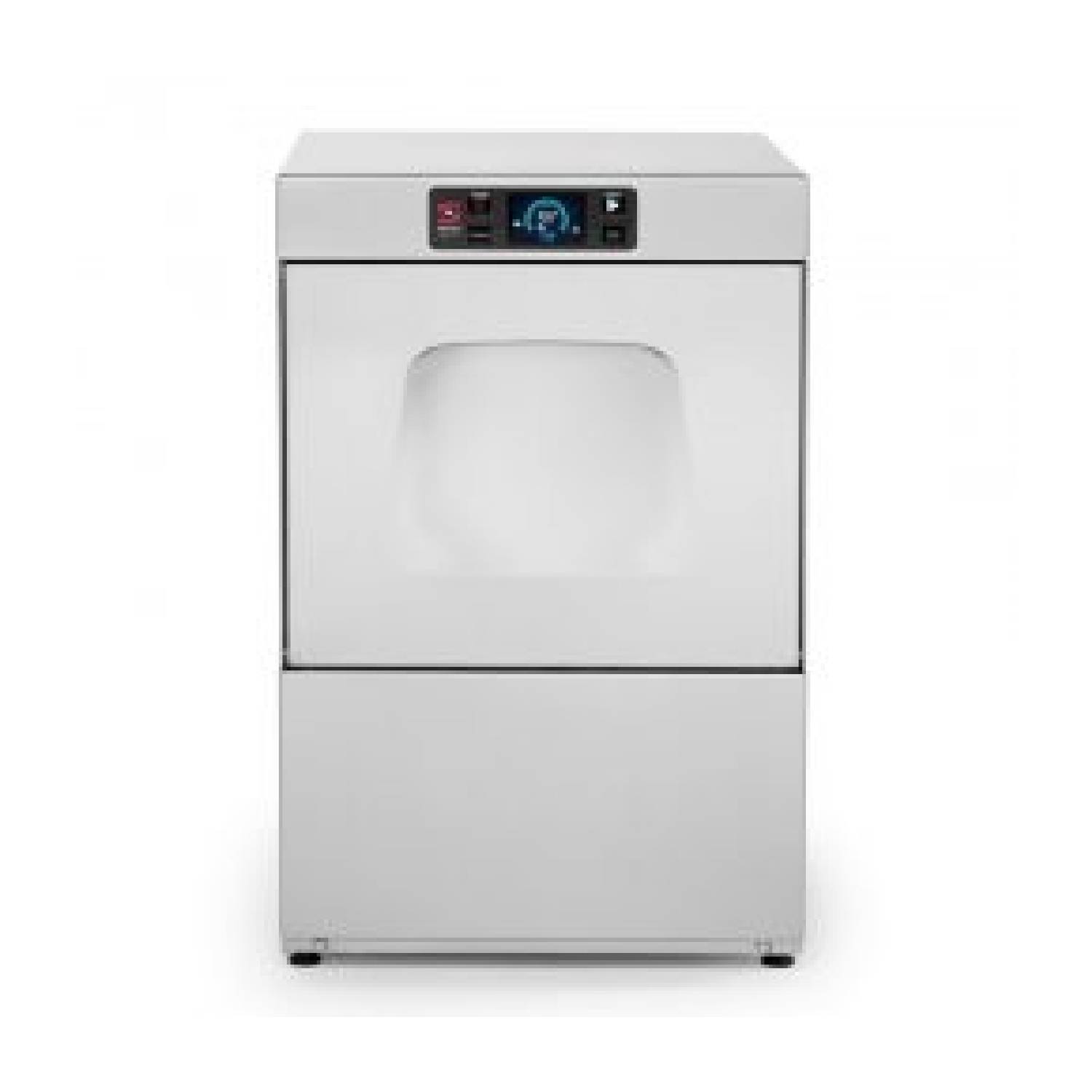

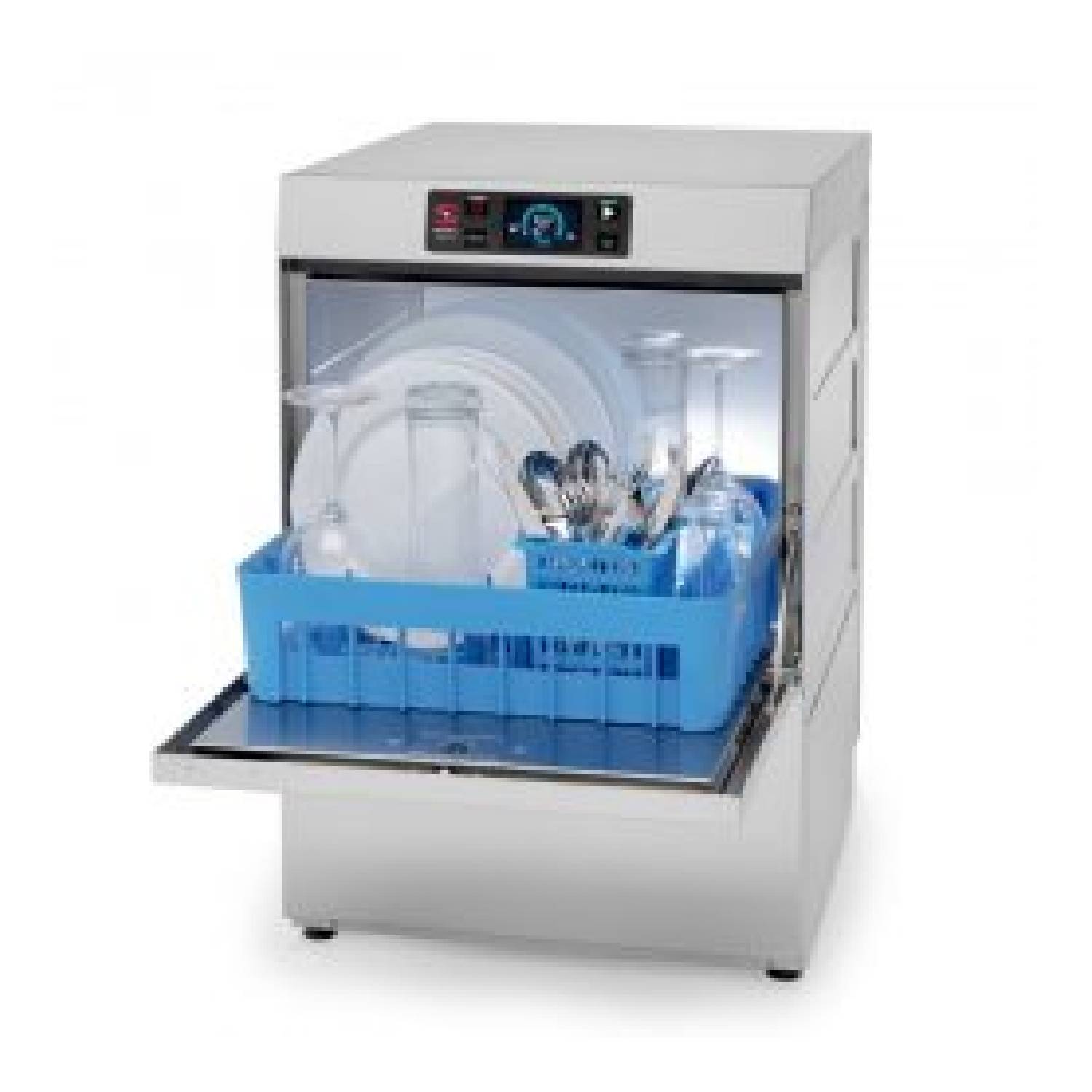

Sammic ULTRA UX-50BCD Premium Dishwasher 500mm Basket (Drain Pump, Break Tank, Water Softener)
Sammic ULTRA UX-50BCD Premium Dishwasher 500mm Basket (Drain Pump, Break Tank, Water Softener) is part of the Ultra range conceived in an aim to meet the expectations of the most demanding sectors, whether they are after sparkling finishes, high productivity or are rigorous with hygiene management.

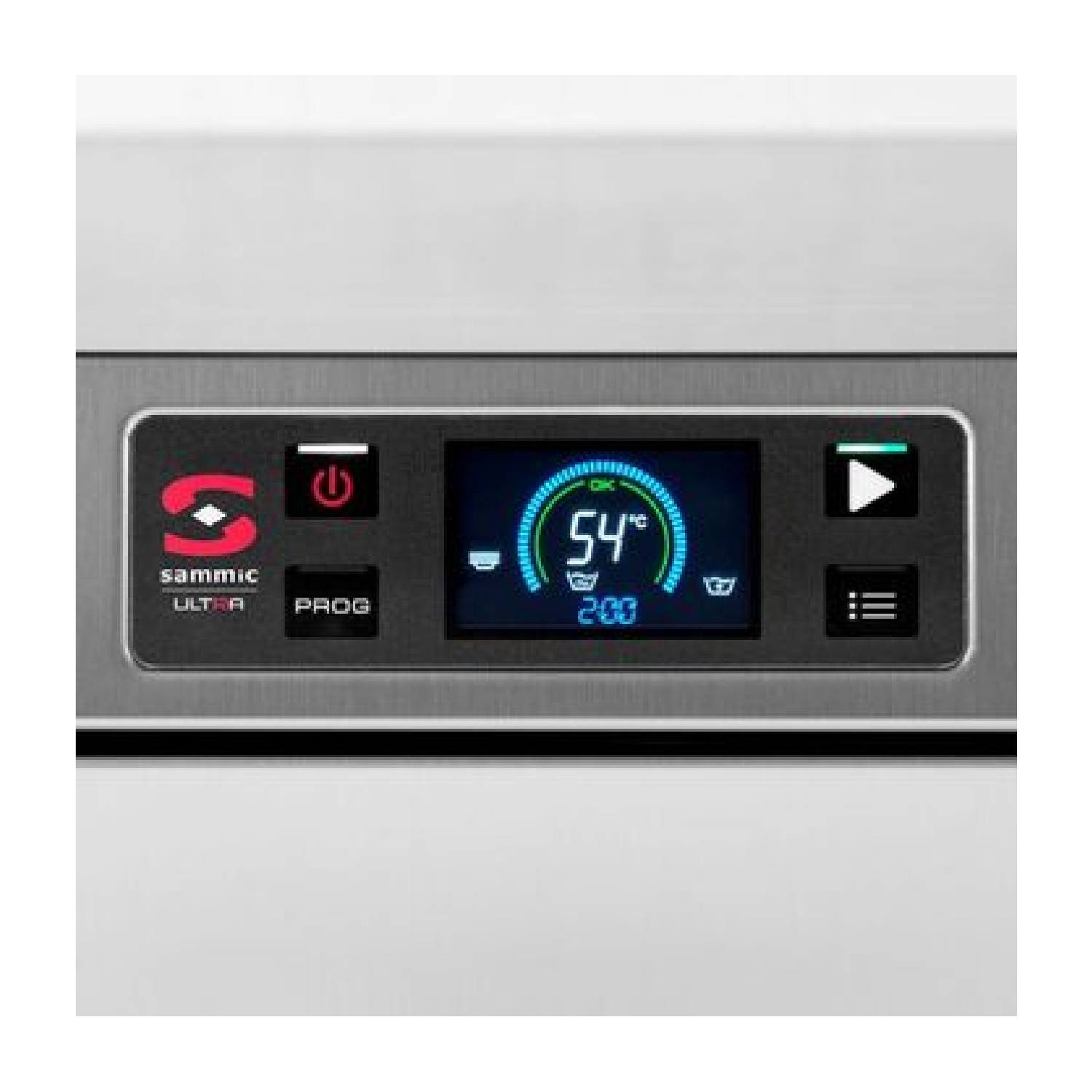

Equipped with the state of the art technologies such as: Colour LCD display providing an advanced image sharpness to make the screen easy to read; a control panel that combines technical sophistication and ease of use and quick and intuitive reading of machine information and status through messages, colour-coding an icons.
This range comes with a wide line of options available to best suit each user’s particular needs.
- Sammic UX-50BD Ultra Glasswasher with drain pump & break tank & water softener
- Sani-Control: guaranteed disinfection.
- Embedded bodywork and easy-grip door: hygienic and ergonomic
- Exclusive Hydroblade™ washing arms: maximum effectiveness.
- 3-stage filtering system.
- Double-walled body (partial).
- Multi-power model. Default boiler loading: 2000W.
- Product Code: 1303250/1303251
POWER CONFIGURATION OPTIONS: Please make your selection at checkout.
We recommend reading the spec sheet for full technical specification and electrical requirements.
MULTIPHASE MACHINE: Option of either 3Phase or Single Phase – Adjustable on site
-
-
Three phase – requires to be hardwired
-
20Amp or 25 Amp, Single phase – requires to be hardwired
-
13 A, single phase with wire for plug
-
TECHNICAL SPECIFICATION:
- Basket dimensions: 500 mm x 500 mm
- Maximum glass height: 380 mm
- Cycle duration: 90/110/120/180/240 “
- Production baskets/hour: 40/33/30/20/15
- Wash temperature: — ºC – 65 ºC
- Rinse temperature: 65 ºC – 87 ºC
- Boiler capacity: 8 l
- Wash tank capacity: 14 l
Consumption and savings:
- Water consumption/cycle: 2.5 l
- Automatic saving mode in: 25 ‘
- Automatic switch-off: 120 ‘
Loading:
- Pump: 750 W / 1 Hp
- Tank: 1800 W
- Boiler: — W (single phase) / — W (multipower)
- Total loading: 2550 / 4550 / 5550 W (single phase) / — W (multipower)
External dimensions:
Width: 580mm
Depth: 635mm
Height: 835mm
Default equipment
Peristaltic Detergent Pump.
Rinse aid pump.
1 glasses basket.
1 mixed basket (plates).
1 small basket for cutlery.
INSTALLATION REQUIREMENTS: Must be installed by a qualified electrician. Incorrect compliance to current installation legislation will lead to invalidation of warranty. A warranty call-out will not be instigated without the name of the installing engineer.
Excellent Construction Quality

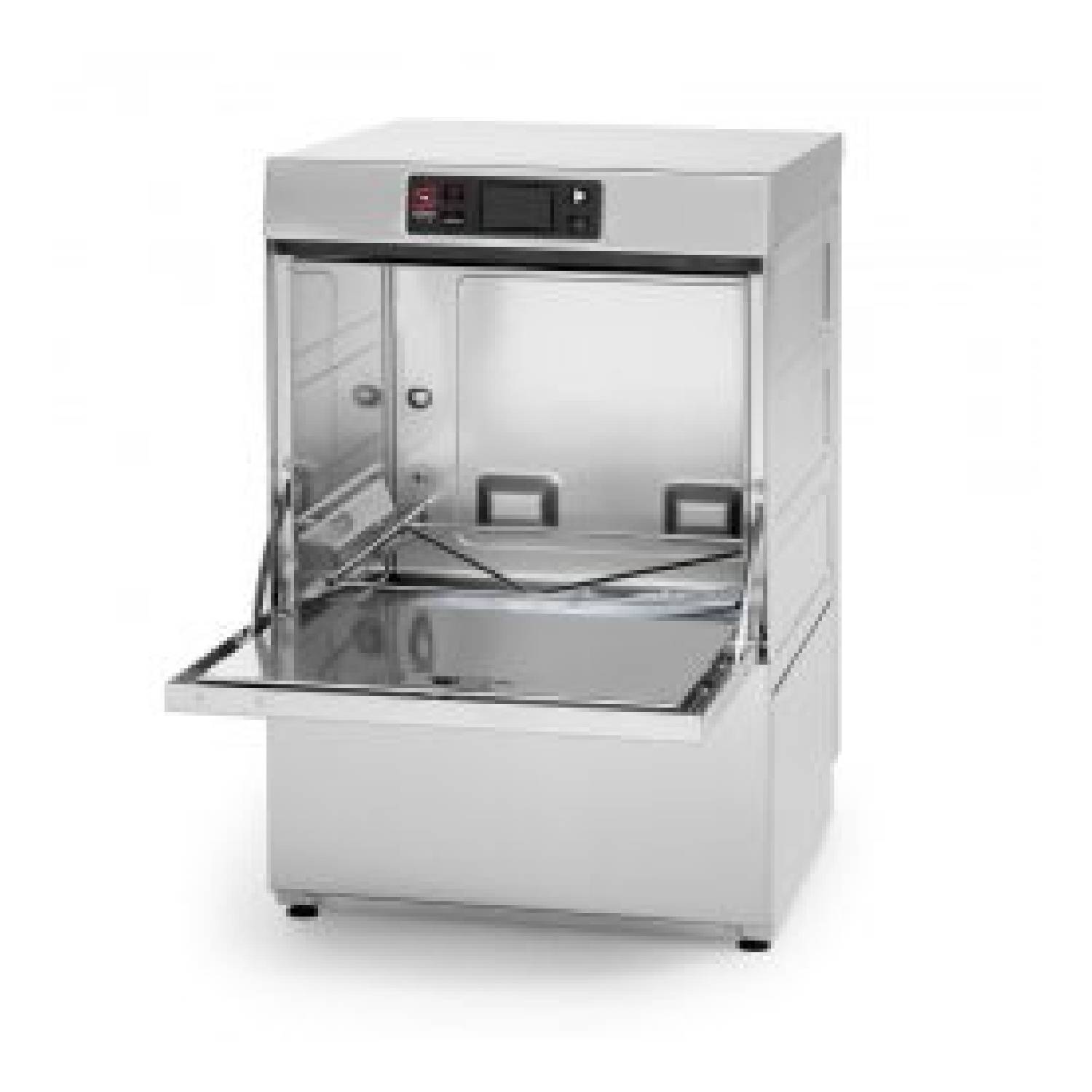

Deep drawn wash chambers in all models that provide up to a 30% water saving compared to competitor designs. This construction technique offers numerous advantages including basket guides that are integrated to the body for improved hygiene and an ergonomic design with rounded tank corners to ensure easy cleaning.

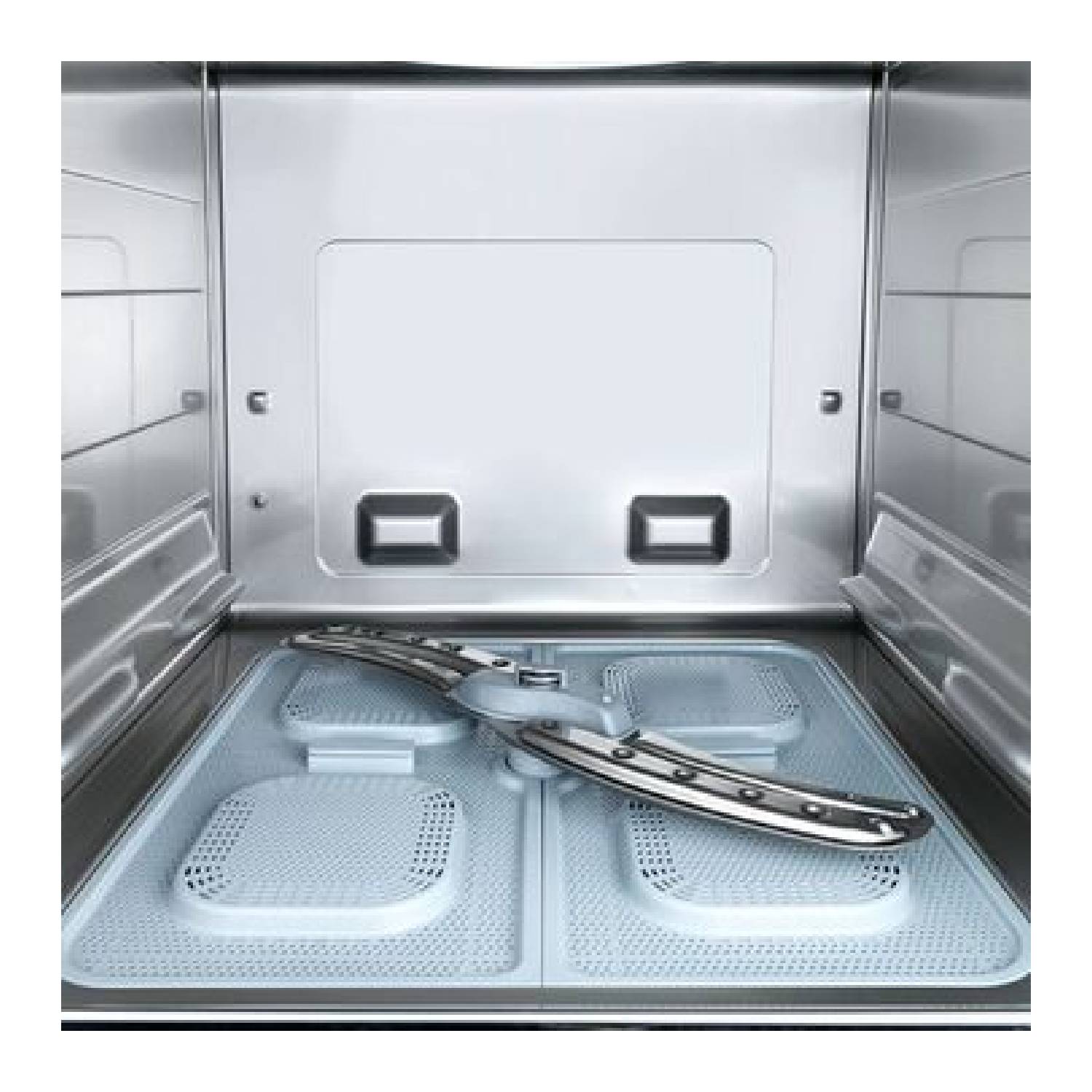

Hydroblade Wash Arms
Combining linear design and a monobloc construction to provide higher washing efficiency and lower water consumption. Up to 30% less water usage during rinse and 40% lighter for faster rotation and a more uniform water jet for improved wash results
3 Stage Filtering System
Easily removable surface filters to retain heavy dirt and to capture 80% of waste. Larger capacity tank filter for blocking medium sized debris and final extraction filter to ensure even the lightest of dirt is blocked without affecting the suction of the wash pump
Easy Grip Door
Sturdy, ergonomic and easy to clean the easy grip door handle provides perfect adherence even when opening with wet hands.
Sani-Control Hygiene Guarantee
Guaranteed disinfection in compliance with the DIN 10534 standard. Integrated thermal lock function that ensures the rinse will be carried out at the ideal temperature to disinfect glassware and crockery.
Support & Backup
Sammic Glasswashers are supported with a 2 year on-site parts & labour warranty. Sammic technicians will ensure your machine is already for use with 60 years of experience and know-how at your disposal
